Aluminum Manufacturing Guide: Process, Cost & CNC Prototyping

Selecting the correct aluminum manufacturing process requires balancing production volume, dimensional tolerance, and mechanical load. For low volume aluminum production (1 to 500 units), prototype CNC machining using Al6061-T6 or Al7075-T6 offers the lowest lead time (3 to 7 days) and tightest tolerance (±0.01 mm) without upfront tooling investment.

When scaling to mid-volume (500 to 5,000 units), the financial tipping point between multi-axis CNC aluminum production and soft-tool aluminum die casting hinges on secondary machining scrap rates (typically 4% to 8% in castings) and draft angle redesign engineering hours. Thermal warping in thin-walled machined aluminum prototype components is eliminated by implementing pre-stretched 6061-T651 stock and a 3-stage stress-relief annealing cycle at 175°C for 2 hours.

The Practical Realities of Sourcing Machined Aluminum Components

Engineering buyers and project managers in robotics, aerospace, automotive, and medical hardware development frequently encounter costly bottlenecks during aluminum parts manufacturing. Dimensional warping after unclamping, batch-to-batch anodizing color discrepancies, unpredicted tooling fees, and structural failures during prototype scaling represent common failure points in global supply chains.

Many online guides provide generic metal definitions without technical data from actual machining floors. Xiamen Dazao Machinery, established in 2000 with ISO9001:2015 and IATF16949:2016 certifications, approaches custom aluminum manufacturing from a practical engineering perspective. Having produced over 500,000 precision prototype aluminum parts and production grade components, this guide presents raw machining shop data, thermal stress mechanics, cost formulas, and Design for Manufacturability (DFM) protocols to streamline procurement decisions.

Aluminum Alloy Selection Matrix: Balancing Machinability, Tensile Strength, and Anodizing Response

Selecting the optimal alloy is the foundation of effective metal prototype manufacturing. Aluminum alloys fall into two main categories: wrought alloys (used in CNC aluminum prototype milling, sheet metal, and extrusion) and cast alloys (used in high-pressure die casting).

Wrought Aluminum Alloys Overview

· Al6061-T6: The industry standard for custom aluminum prototypes and structural components. It contains magnesium (0.8-1.2%) and silicon (0.4-0.8%) as primary alloying elements. It delivers moderate yield strength (276 MPa), excellent machinability, and superior corrosion resistance.

· Al7075-T6: An ultra-high-strength aerospace alloy alloyed with zinc (5.1-6.1%) and copper (1.2-2.0%). It exhibits a yield strength of 503 MPa and Brinell hardness of 150 HB, rivaling structural steel while maintaining one-third of the density (2.81 g/cm³).

· Al5052-H32: A non-heat-treatable alloy with high magnesium content (2.2-2.8%). It features superior cold-formability and salt-water corrosion resistance, making it the primary choice for aluminum fabrication process applications involving sheet metal enclosures and brackets.

· Al2024-T3: High-copper alloy (3.8-4.9%) offering high fatigue resistance and tensile strength (483 MPa). Frequently specified for aircraft structures, though it exhibits lower weldability and atmospheric corrosion resistance compared to 6061.

Cast Aluminum Alloys Overview

· A380: The most widely specified die-casting alloy. Provides an optimal balance of fluid castability, mechanical properties (yield strength 160 MPa), and thermal conductivity (96.2 W/m·K).

· ADC12: A Japanese standard silicon-copper-aluminum die-casting alloy with high fluidity, ideal for complex, thin-walled aluminum component manufacturing.

· A356: Primary casting alloy used in sand and permanent mold casting. Often heat-treated to T6 condition for high-stress automotive wheels and structural housings requiring high fracture toughness.

Mechanical Trade-Offs: Machinability vs. Weldability vs. Anodizing Response

· Al7075-T6 Anodizing vs Welding: Al7075 forms a dense, uniform oxide layer during Type III hard anodizing (up to 50 µm thickness), yielding surface hardness up to 450-500 HV. However, high copper and zinc content promotes micro-cracking during fusion welding (TIG/MIG). Engineering Rule: Use mechanical fasteners or friction stir welding (FSW) for 7075 assemblies.

· Al5052 Milling Limitations: Al5052 exhibits gummy chip behavior during heavy CNC milling pass operations, leading to built-up edge (BUE) on cutting tools. Engineering Rule: Reserve 5052 for laser cutting and press brake bending. Specify Al6061-T6 for components requiring high-density prototype cnc machining.

Technical Insight 1: Residual Stress and Thermal Warping in Thin-Walled CNC Aluminum Prototypes

A frequent cause of dimensional failure in functional aluminum prototype manufacturing is post-unclamping warping. When a large flat plate (such as a 400 mm x 300 mm x 15 mm chassis plate) undergoes heavy stock removal (over 60% material removal rate), internal asymmetric residual stresses compress and expand unequally.

Mechanics of Internal Residual Stress

Extruded or hot-rolled aluminum plates retain internal quenched thermal stresses. The longitudinal residual stress distribution (σ_r) across plate thickness h follows a parabolic profile:

Where:

· σ_max = maximum tensile stress at the outer skin (+40 to +80 MPa)

· z = distance from the neutral axis

· h = total plate thickness

When high-speed end mills cut away the top layer of material, the stress equilibrium breaks. The unbalanced bottom tensile stress causes springback, producing a bowing deflection (δ):

Where:

· L = length of the part (mm)

· E = Elastic Modulus (68.9 GPa for Al6061)

· h = remaining wall thickness (mm)

Xiamen Dazao Machinery Stress Mitigation Protocol

To guarantee flatness tolerances under ±0.02 mm on large machined aluminum prototype components, Xiamen Dazao Machinery enforces a 4-step production protocol:

1. Stock Material Selection: Mandate Al6061-T651 plate stock. The T651 designation confirms the material was stress-relieved by a mechanical stretching process (1.5% to 3% permanent set) after solution heat treatment, lowering internal residual stress by up to 85%.

2. Symmetrical Stock Removal: Alternate roughing passes equally between Face A and Face B using high-feed indexable face mills (V_c=800 m/min, f_z=0.12 mm/tooth).

3. Thermal Stress Relief Annealing: For parts with critical tolerances, insert an intermediate thermal treatment between rough machining and final pass. Heat parts to 175°C ± 5°C, hold for 2 hours, and air-cool slowly inside the furnace at a rate < 20°C/hour.

4. Sub-Clamp Chatter/Vibration Machining: Prior to the final light finish pass (0.2 mm depth of cut), completely release hydraulic vises, allow the part to expand/relax naturally, and re-clamp with minimal required torque (3.5 N·m) using custom soft jaws. For detailed tolerance limits across various aluminum grades, refer to our comprehensive CNC aluminum prototype tolerance guide.

Comparing the 4 Core Aluminum Processing Methods: CNC, Extrusion, Die Casting & Sheet Metal

Selecting the optimum aluminum production process directly dictates tooling costs, lead times, and unit prices.

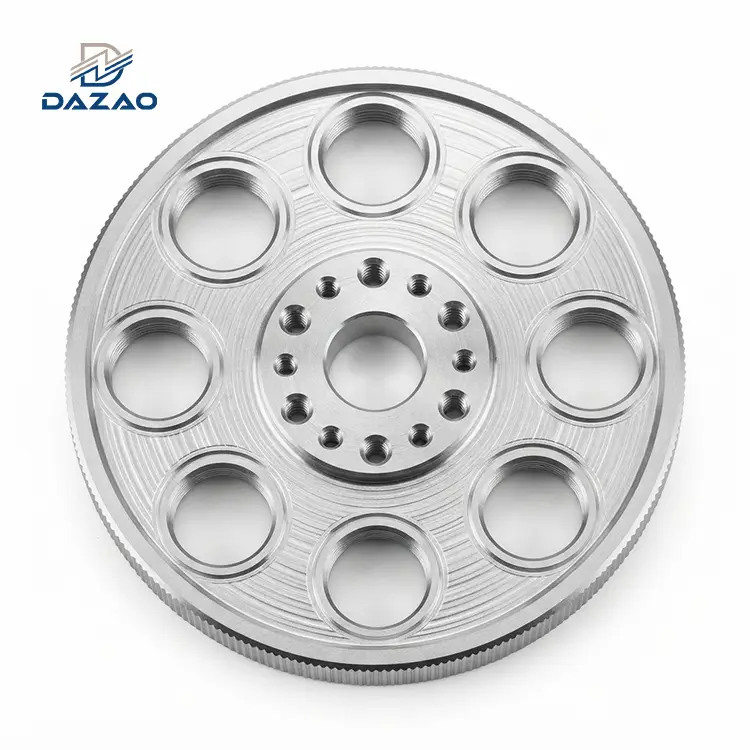

CNC Aluminum Production & Prototype CNC Machining Service

CNC aluminum production leverages 3-axis, 4-axis, and 5-axis subtractive milling/turning centers to cut solid billet stock into high-precision parts.

· Key Capabilities: Ideal for rapid aluminum prototype iteration and low volume aluminum production. Produces high geometric complexity, pockets, tapped holes, and precise bearing bores without permanent tooling investment. For step-by-step setup strategies, consult our dedicated aluminum CNC machining guide.

· Precision Metric: Standard tolerances maintained by Dazao Machinery range from ±0.012 mm to ±0.005 mm on 5-axis Hermle machining centers.

· Limitation: High chip removal volume increases unit cycle times and material scrap rates compared to near-net-shape casting processes.

Aluminum Extrusion Process

The extrusion process forces heated aluminum billets (450°C - 500°C) through a hardened steel die profile under high hydraulic pressure (1,000 to 10,000 tons).

· Key Capabilities: Produces long, uniform cross-sectional profiles such as structural frames, mounting rails, and LED heat sinks. Highly efficient for high volume aluminum manufacturing.

· Tooling Investment: Low die cost ($1,500 - $5,000) compared to casting molds.

· Limitation: Limited to 2D profile geometries along the extrusion vector. Secondary prototype cnc machining service operations are required for transverse holes, slots, and threads.

Aluminum Die Casting Process

High-Pressure Die Casting (HPDC) injects molten aluminum (650°C) into a hardened steel mold cavity under high velocity and pressures exceeding 70 MPa.

· Key Capabilities: Best method for mass production aluminum parts with thin walls (1.5 mm to 3.0 mm) and complex interior ribs. High production speeds (up to 120 shots/hour).

· Tooling Investment: High initial hard tooling cost ($15,000 to $80,000+) and long die fabrication timelines (45 to 60 days).

· Limitation: Risk of internal gas porosity caused by turbulent mold filling during high-speed injection. Porosity degrades fatigue life and limits post-casting heat treatment.

Aluminum Sheet Metal Fabrication

Employs CNC fiber laser cutters, turret punch presses, and hydraulic press brakes to cut, notch, and bend sheet aluminum stock (Al5052 or Al6061).

Key Capabilities: Cost-effective for electronic enclosures, brackets, automotive heat shields, and chassis panels.

Bending Rule: Minimum inner bend radius must equal or exceed 1.5×t (where t = sheet thickness) for Al5052 to prevent outer radius cracking.

Technical Insight 2: Mid-Volume Tipping Point Model (500 to 5,000 Units) - CNC vs Die Casting ROI Analysis

A frequent challenge for procurement managers is selecting the optimal aluminum production methods during medium-scale production runs (500 to 5,000 units).

Hidden Costs of Die Casting vs CNC Machining

Generic models often compare simple CNC unit price against die casting unit price, missing three major cost factors:

1. Draft Angle Redesign & Engineering Hours: Die casting requires 1° to 3° draft angles on all vertical walls. Redesigning mating components and updating CAD models typically consumes 20 to 40 engineering hours ($1,500 - $3,000).

2. Porosity & Secondary Machining Scrap Rate: Castings require secondary CNC machining on mating surfaces and threaded holes. Internal casting porosity exposed during machining generates scrap rates between 4% and 8%, compared to < 0.5% for billet cnc prototype machining.

3. Die Maintenance and Amortization: Mold refurbishing, core pin replacement, and thermal fatigue repair add an average of $0.40 to $1.20 per part over a 10,000-shot lifecycle.

Total Cost of Ownership (TCO) Formula

Calculate the true break-even volume (Vbe) using this mathematical model:

Where:

· C_mold = Hard tooling mold cost ($25,000)

· C_fixture = Modular CNC soft fixture cost ($800)

· C_redesign = Engineering CAD modification cost ($2,000)

· S_porosity​ = Secondary machining scrap rate due to casting voids (6%)

· R_machine = CNC spindle rate per hour ($45/hr)

Verdict: Below 1,800 units, multi-axis CNC aluminum production delivers a lower TCO and eliminates lead-time risks. Above 2,500 units, aluminum die casting offers clear unit-cost advantages once tooling capital is fully amortized.

Bridging the Gap: Transitioning from CNC Prototype Machining to Mass Production

Transitioning from an initial engineering prototype to full-scale mass production aluminum parts is a common point of project failure. Physical prototypes that perform well as discrete custom aluminum prototypes often encounter manufacturing failures when shifted to high-speed automation lines.

The Prototyping Illusion

During early rapid aluminum prototype runs, CNC programmers cut components from solid billet using extended tool lengths, custom step-over routines, and high spindle hours. Cost is secondary to speed.

However, translating that exact CAD design to a high volume aluminum manufacturing process (such as die casting or extrusion) introduces major physical constraints:

· Non-Uniform Wall Sections: Thick solid bosses adjacent to thin outer walls cause severe sink marks and shrinkage voids during casting solidification.

· Sharp Internal Pockets: CNC end mills easily cut square internal pockets if undersized tools are used. However, die-casting pins and extrusion dies break under sharp thermal corners, requiring a minimum internal radius (R≥1.5 mm).

Key DFM Optimization Rules for Custom Aluminum Manufacturing

To optimize parts for high-volume manufacturing while controlling aluminum prototype cost, follow our full aluminum CNC machining design guide and apply these essential DFM rules:

1. Internal Pocket Radius Optimization: Avoid right-angle 90° vertical wall transitions in pockets. Specify an internal corner radius (R) equal to at least 0.2×pocket depth. This allows CNC programmers to run larger, more rigid end mills at higher feed rates without tool chatter or premature cutter breakage.

2. Uniform Wall Thickness Rule: Maintain consistent wall thicknesses across all sections of cast or extruded aluminum components. Transition nominal wall thickness gradually using a 1:3 taper ratio to eliminate stress concentrations and thermal contraction warping.

3. Tapped Hole Depth Standard: In rapid cnc prototyping, deep tapped holes consume cycle time and increase tap breakage risk. Limit thread depth to 1.5×nominal thread diameter (1.5D). Thread engagement beyond 2D provides negligible strength gain in aluminum alloys.

Xiamen Dazao Machinery 24-Hour DFM Audit Protocol

When engineering teams submit 3D CAD files (STEP/IGES) for a prototype cnc machining service quote, Xiamen Dazao Machinery executes an automated 24-hour DFM audit:

· Wall Thickness Thermal Mapping: Identifies thin walls below 0.6 mm that risk vibration during milling or cold lap defects during casting.

· Tool Reach & Aspect Ratio Analysis: Calculates depth-to-diameter ratios for all deep pockets. Deep pockets exceeding 5×D trigger an alert to adjust radii or split the assembly.

· Tolerance Stack-up Verification: Cross-references tight tolerances (below ±0.008 mm) against functional mating features to ensure non-critical surfaces do not drive up production costs unnecessarily.

Surface Finishing & Anodizing Consistency: Eliminating Cosmetic Defects and Batch Color Discrepancies

Surface treatments represent the final critical phase of aluminum parts manufacturing. While coatings protect parts from environmental corrosion and mechanical wear, surface finishing remains a high-risk area for aesthetic defects and dimensional scrap.

Overview of Standard Aluminum Surface Treatments

· Type II Sulfuric Acid Anodizing: An electrochemical process converting the aluminum surface into a durable aluminum oxide film (5 to 25 μm). Offers excellent color dye absorption (black, blue, red, gold) for cosmetic consumer hardware and medical devices.

· Type III Hardcoat Anodizing: Executed at lower electrolyte temperatures (0°C to 5°C) and higher current densities. Creates a dense layer (25 to 50 μm) with high wear resistance suitable for aerospace actuators and hydraulic valves.

· Bead Blasting: Propels glass beads or aluminum oxide media at high pressure (0.2 to 0.5 MPa) to create an even, non-directional matte finish. Standard glass bead sizes range from #80 (coarse matte, Ra≈3.2 μm) to #120 (satin finish, Ra≈1.6 μm).

· Chemical Conversion Coating (Chromate / SurTec 650): Produces an ultra-thin passivated conductive film (<1 μm). Preserves electrical conductivity while preventing surface oxidation in electrical housings.

Technical Insight 3: Anodizing Batch Color Discrepancies and Grain Direction Traps

A frequent point of friction between an aluminum component supplier and procurement teams involves color mismatches on multi-component anodized assemblies. Anodizing two mating parts in different batches often yields noticeable shade variations under standard light conditions.

Physical Mechanics of Anodizing Color Variation

Color depth in anodized aluminum depends on light refraction through porous hexagonal oxide cells. Three distinct micro-structural factors govern optical reflectivity:

1. Rolling Grain Direction (Longitudinal vs Transverse): Extruded and rolled aluminum stock possesses elongated grain structures. Light reflects differently along the longitudinal grain axis (R_L) compared to the transverse axis (R_T). If Part A is milled parallel to the rolling direction while Part B is milled perpendicular, they will exhibit a visual shade discrepancy even when dyed in the same chemical tank.

2. Intermetallic Phase Distribution: Variations in silicon and iron concentration between raw material melts alter the dissolution rate during alkaline etching. This shifts the micro-roughness of the etched surface, altering optical light scattering.

3. Anodizing Growth Dimension Changes: Type II anodizing consumes raw metal to grow oxide cells. The thickness split follows a 50:50 ratio: 50% penetration into the substrate, 50% outward buildup. An anodizing layer of 15 μm increases external part dimensions by 7.5 μm per surface, requiring pre-anodize tolerance planning on precision bearing bores.

ΔD_external=+2⋅(0.5⋅t_anodize)

Where:

· ΔD_external = Total shaft diameter expansion (µm)

· t_anodize = Target oxide film layer thickness (µm)

Xiamen Dazao Machinery Anodizing Quality Protocol

To guarantee complete color and texture consistency across production batches, Xiamen Dazao Machinery enforces these four rules:

· Grain Direction CAD/CAM Standard: CAM programmers must align the primary toolpath vector with the raw material extrusion or rolling axis. CAD engineering prints must explicitly mark visual surfaces with a Grain Direction Reference Vector.

· Single Heat-Melt Material Batch Lock: All components belonging to a single assembly are cut from raw material stock originating from a single mill heat number (MTR certified).

· Rack Jigging Location Pre-Planning: Critical mating surfaces must have designated jig contact locations (contact marks) specified on technical drawings to prevent raw metal exposure on visual faces.

· Masking for Precision Bores: Threaded holes and precision bearing bores with tolerances under ±0.010 mm must be masked with high-temperature silicone plugs prior to Type III hardcoating.

Aluminum Manufacturing Cost Breakdown: Raw Materials, Machine Rates & Hidden RFQ Fees

Understanding the cost structure of custom aluminum manufacturing allows engineering buyers to optimize budgets without compromising mechanical performance. For a comprehensive price formula breakdown, review our detailed aluminum CNC machining cost guide.

Four Cost Pillars of Aluminum Component Manufacturing

1. Raw Material Cost Index: Calculated based on London Metal Exchange (LME) aluminum ingot spot prices plus alloy mill premiums. Efficient CAM nesting reduces material scrap, but heavy milling operations (cutting away solid blocks) transfer raw material costs directly to the buyer.

2. Machining Hours & Equipment Depreciation: Governed by machine hour rates ($35/hr for 3-axis CNC, 65−95/hr for 5-axis simultaneous CNC). Complex 3D organic contours require high-density toolpaths, increasing spindle hours.

3. Surface Finishing & Secondary Processing: Specialized finishes like Type III hardcoating or mask-intensive powder coating increase unit costs.

4. Quality Control & CMM Inspection Costs: High-precision components requiring 100% CMM inspection and full material traceability certificates (MTR) incur additional testing time compared to standard sampling inspection (AQL 2.5).

Hidden Supply Chain Costs and Risk Prevention

· Inspection Gaps (AQL 1.5 vs AQL 4.0): Failing to define an Acceptance Quality Limit (AQL) in purchase orders often leads to disputes. Specifying AQL 1.0 for zero-defect critical dimensions prevents high rejection rates upon arrival.

· Corrosion Protection During Marine Transport: Raw machined aluminum exposed to ocean transit ambient moisture risks surface pitting oxidation. Specify vacuum-sealed VCI (Vapor Corrosion Inhibitor) packaging bags with desiccant packs for all international sea shipments.

Guidelines for Requesting Quotes from an Aluminum Machining Supplier

To receive an accurate commercial quote within 24 hours from an aluminum machining supplier, submit a complete engineering RFQ package to request an aluminum machining quote containing:

· 3D CAD Native/Step Files (.STEP or .IGES) alongside 2D PDF technical drawings with GD&T specs.

· Specific alloy designation and heat treatment state (e.g., Al6061-T6, Al7075-T651).

· Required surface treatment specs (e.g., Type II Black Anodize, Ra 1.6 finish).

· Order volumes divided into initial aluminum prototype quantity and projected annual production run.

Shop-Floor Case Studies: How Dazao Resolved Warping & Cut EV Heat Sink Production Costs by 41%

Real manufacturing experience is built on resolving unexpected shop-floor failures. The following real-world case studies demonstrate how Xiamen Dazao Machinery resolved complex manufacturing challenges.

Case Study 1: Robotic Arm Joint Housing Warping & Bearing Seizure

Background & Failure Mode

A robotics OEM supplied CAD files for an Al7075-T6 robotic joint housing featuring a high-precision thin-walled bearing seat (∅85.000 mm+0.012/+0.000 mm). Initial parts produced by a previous vendor passed CMM inspection while clamped on the machine table. However, once removed from the fixture and shipped overseas, the bearing seats warped into an oval shape (out-of-roundness exceeding 0.035 mm), causing immediate bearing seizure during assembly.

Root Cause Analysis

High-speed milling of deep internal pockets released unbalanced internal stresses stored within the 7075-T6 stock material. Additionally, aggressive 3-jaw chuck clamping forces deformed the thin outer wall (2.0 mm) during final finish boring. Once unclamped, the elastic recovery caused springback, distorting the precision diameter.

Xiamen Dazao Machinery Engineering Solution

1. Material Upgrade & Pre-Treatment: Switched raw material stock from standard Al7075-T6 extruded bar to Al7075-T651 stress-relieved forged plate.

2. Process Sequence Modification: Split machining into three stages:

· Stage 1: Rough milling all features leaving 0.8 mm finishing stock.

· Stage 2: Thermal stress-relief cycle at 160°C for 3 hours, followed by room-temperature stabilization for 24 hours.

· Stage 3: Final finish pass using specialized full-wrap hydraulic pie-jaws to distribute clamping pressure evenly around the perimeter (360° contact) rather than concentrated 3-point jaw pressure.

3. Results: Concentricity and roundness maintained strictly within 0.008 mm, completely eliminating bearing seizure across a 3,000-unit production run.

Case Study 2: EV Battery Pack Heat Sink Assembly (40% Cost Reduction)

Background & Challenge

An electric vehicle client required a custom liquid cooling plate assembly (650 mm×450 mm×22 mm) for an EV battery pack. The initial design called for fully machining the internal fluid channels from a massive solid 45 kg Al6061-T6 billet, resulting in an unacceptable unit cost ($285.00/unit) and cycle times exceeding 110 minutes per component.

Engineering Analysis & Process Redesign

Carving internal channels out of solid billet generated an 82% material scrap rate. Dazao engineers restructured the manufacturing approach by combining two separate manufacturing processes:

· Phase 1 Profile Extrusion: Extruded a multi-void base plate profile with internal flow channels directly formed during extrusion, cutting raw material waste by 70%.

· Phase 2 Localized CNC Milling: Utilized high-speed 4-axis milling centers to machine end-cap sealing ports and mounting interfaces.

· Phase 3 Friction Stir Welding (FSW): Joined the top cover plate using solid-state Friction Stir Welding. FSW forms leak-tight joints without melting the base metal, eliminating heat-affected zone (HAZ) softening and thermal distortion.

Commercial Impact

The hybrid process cut unit costs by 41%, shortened production lead times from 6 weeks to 12 days, and delivered leak-tight cooling plates certified to withstand internal pressures exceeding 0.6 MPa.

Procurement Action Checklist & Custom Aluminum Supplier Evaluation Guide

Selecting a trustworthy custom aluminum parts manufacturer requires evaluating physical shop-floor capabilities, inspection systems, and engineering responsiveness.

Key Criteria for Evaluating an Aluminum Manufacturing Company

To learn more about our plant equipment and advanced 5-axis production capacity, explore our full custom aluminum parts manufacturing capabilities.

Final Pre-Order Procurement Checklist

Before releasing a Purchase Order (PO) to an aluminum component supplier, verify the following technical points:

 Alloy & Temper Designation: Are material codes explicitly defined on engineering drawings (e.g., Al6061-T651 instead of generic aluminum)?

 Drawing Tolerances: Are non-critical tolerances relaxed to standard ISO 2768-m (Medium) to avoid unnecessary machining costs?

 Surface Finishing Specs: Is anodizing film thickness (μm), color standard (Pantone / RAL), and masking requirements clearly detailed?

 Visual Face Identifiers: Are aesthetic cosmetic faces marked on 2D drawings to prevent jig contact marks on exposed surfaces?

 Packaging Requirements: Is rust-inhibiting VCI foil or custom foam wrapping specified for export sea/air shipment?
