Aluminum CNC Design Guide:DFM Rules And Cost Reduction

Designing aluminum parts for CNC machining requires balancing mechanical functionality with shop-floor cutting dynamics. Key standard DFM rules include: keeping minimum wall thickness above 0.8 mm (1.5 mm recommended), setting internal corner radii to >1.15x tool radius, capping pocket depths at 4x cutter diameter, and specifying ISO 2768-m general tolerances while reserving ±0.010 mm only for critical mating interfaces. To prevent part warping and thread seizure, engineers must account for alloy stress relief (e.g., specifying Al6061-T651 over T6) and plating buildup during the initial 3D CAD modeling stage.

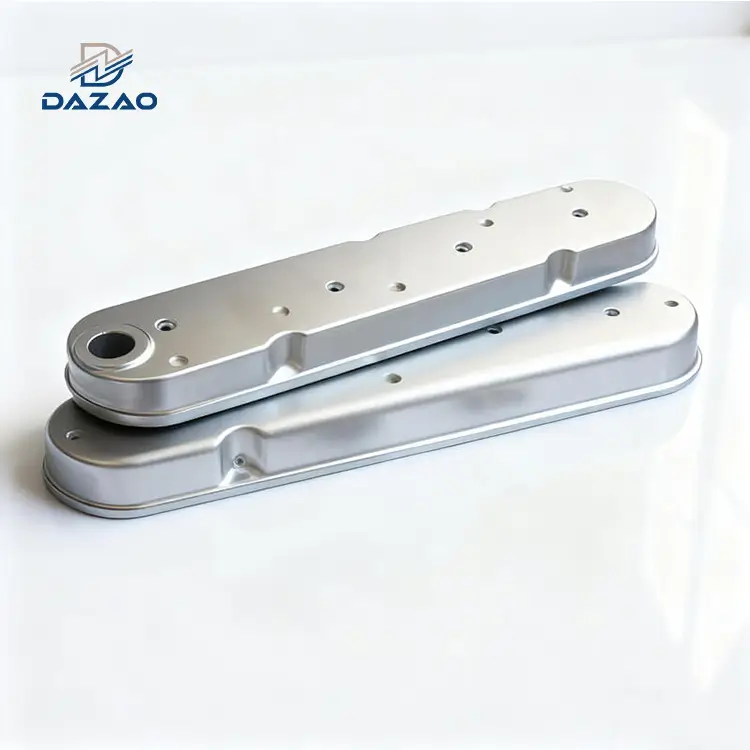

CAD Models vs. Shop Floor Reality: Bridging the Engineering Gap

A 3D CAD model generated in SolidWorks or Autodesk Inventor represents an idealized geometry in a zero-gravity, zero-friction digital environment. When transferred to a 5-axis vertical machining center (VMC), that geometry interacts with high-speed spindle torque, physical clamping forces, cutting tool deflection, and heat generation.

At Xiamen Dazao Machinery, established in 2000 with ISO9001:2015 and IATF16949:2016 certifications, production data shows that nearly 90% of submitted 3D CAD files require DFM (Design for Manufacturing) modifications before toolpaths can be generated. Unoptimized designs lead to excessive cycle times, tool chatter, rapid cutter wear, and unnecessary scrap rates.

Following structured aluminum cnc machining design guidelines allows engineers to create components that are cheaper to manufacture, faster to machine, and dimensionally stable throughout post-processing. To understand how these design choices transition into floor-level production operations, consult our foundational aluminum CNC machining guide.

Fundamental DFM Guidelines for Aluminum CNC Machining

Executing an efficient aluminum part design requires adhering to specific geometric limits dictated by cutting tool kinematics and material properties.

1. Minimum Wall Thickness and Rigidity Controls

Thin walls under high cutting forces experience lateral deflection, resulting in chatter marks, dimensional drift, and potential wall fracture.

· Recommended Minimum Wall Thickness: 1.5 mm for general structural features.

· Absolute Minimum Wall Thickness: 0.8 mm for localized, supported ribs (minimum wall thickness for cnc machining).

· Micro-Features: 0.5 mm is achievable only via multi-pass light finishing cuts with small-diameter end mills, which significantly increases cycle time.

The deflection of a thin wall under cutting pressure follows the cantilever beam bending equation:

δ=(F⋅L³)/(3⋅E⋅I)

Where δ is deflection, F is cutting force, L is wall height, E is Young's modulus of the aluminum alloy, and I is the area moment of inertia. Because wall thickness (t) directly impacts inertia (I=(b⋅t³)/12), reducing wall thickness by 50% increases deflection by a factor of 8.

2. Inside Corner Radius Selection and End Mill Engagement

Rotary CNC end mills cannot cut sharp 90-degree internal vertical corners. Every internal vertical edge naturally retains the radius of the milling cutter (cnc inside corner radius).

· Standard Rule: Specify an inside corner radius (Rcorner) that is 10% to 15% larger than the standard end mill radius (Rtool).

· Math Rule: Rcorner≥1.15×Rtool

If an inside corner radius exactly matches the radius of the end mill, the tool experiences a 90-degree change in direction while maintaining 100% radial engagement. This sudden spike in chip load causes tool chatter, poor surface finish, and tool breakage. Providing a larger radius allows the cutter to arc through the corner smoothly without stopping or dwelling, in accordance with standard cnc milling design rules.

3. Pocket Depth Limits and Tool Deflection Ratios

Deep, narrow pockets require long reach end mills. As tool overhang increases, rigidity drops exponentially according to the beam deflection formula (proportional to L³).

· Standard Pocket Depth: Keep depth ≤4×pocket width.

· Maximum Pocket Depth: ≤6×pocket width. Depths exceeding 6×require specialized necked tooling, reduced feed rates, or EDM (Electrical Discharge Machining), which inflates cost.

4. Hole Design Standards and Drill Bit Alignment

Designing holes to match standard drill bit sizes eliminates the need for custom reamers or circular interpolation toolpaths (how to design parts for cnc machining).

· Hole Depth Limit: Keep blind hole depth ≤8×hole diameter.

· Bottom Profile: Design blind hole bottoms with a standard 118° or 135° drill point angle rather than a flat bottom. Flat-bottom holes require a secondary end mill operation.

· Entry and Exit Surfaces: Ensure drill entry and exit faces are perpendicular to the tool axis. Drilling into an angled surface causes the bit to wander, bending the tool and ruining hole position tolerances.

Key DFM Parameters for Aluminum CNC Machining

Preventing Cost Overruns: Tolerance Stack-Up and Surface Finishes

Over-specifying tolerances is the single largest driver of unnecessary manufacturing costs in cnc machining dfm.

1. Eliminating Default CAD Tolerance Traps

Standard CAD drawing templates often include default title block tolerances, such as:

· X.X = ±0.5 mm

· X.XX = ±0.1 mm

· X.XXX = ±0.01 mm

When an engineer leaves an uncritical feature with three decimal places, the CAM programmer must run high-precision, low-feed finishing passes across non-mating surfaces (cnc machining tolerances).

· General Tolerances: Apply ISO 2768-m (Medium) for all non-critical dimensions (cnc machining tolerance guidelines).

· Precision Tolerances: Reserve ±0.010 mm to ±0.025 mm strictly for bearing seats, dowel pin locations, and dynamic mating slides.

2. Accounting for Anodizing Dimensional Growth

Milled aluminum parts typically leave the machine with a surface roughness of Ra 1.6 µm to Ra 3.2 µm. Light finishing passes lower this to Ra 0.8 µm. However, applying precision aluminum anodizing services or secondary surface finishes will directly alter final physical dimensions:

① Type II Anodizing (Standard Anodize):

· Total film thickness: 8 µm to 15 µm.

· Penetration vs. Buildup: 50% grows into the aluminum surface, 50% builds up on the exterior.

· Dimensional growth per surface: 4 µm to 7.5 µm.

② Type III Hardcoat Anodizing:

· Total film thickness: 25 µm to 50 µm.

· Dimensional growth per surface: 12.5 µm to 25 µm.

When designing press-fit pin holes or close-tolerance shaft bores, the pre-anodize CAD dimensions must account for this layer buildup according to cnc machining dfm guidelines.

Manufacturing Method vs. Tolerance Cost Impact

3 Production Blind Spots in Aluminum CNC Machining

While standard guides focus on basic radii and wall thickness, production failures often stem from physical phenomena that occur during chip removal. Here are three critical engineering blind spots identified on the Dazao Machinery floor.

Blind Spot 1: Internal Stress Release and Asymmetric Stock Removal Warping

Extruded or hot-rolled aluminum stock contains high levels of internal residual stress from manufacturing. As a CNC end mill removes large volumes of material from one side of a part, the internal stress field becomes unbalanced. When the part is unclamped from the vise, the component bows or twists.

Engineering Failure Case at Dazao

A client designed an optical baseplate measuring 1200 mm×400 mm×25 mm using standard Al6061-T6 plate. The design required milling a massive pocket on one side, removing 70% of the material.

Upon releasing the vise, the center of the baseplate bowed upward by 0.35 mm, failing the flat-plane specification of ≤0.05 mm. The entire 50-piece production batch was scrapped.

Engineering Solution

1. Material Specification: Switch from 6061-T6 to 6061-T651 or 7075-T6511. The 51 designation indicates the plate was stress-relieved by mechanical stretching (1.5% to 3% permanent stretch) at the mill prior to temper aging.

2. Machining Strategy: Implement symmetric material removal. Rough machine Side A, flip and rough Side B, apply an intermediate stress-relief heat treatment at 180°C for 2 hours, and then execute final precision finishing passes.

Blind Spot 2: Capillary Retention of Anodizing Solutions in Small Threads

Engineers routinely adjust major thread diameters to account for uniform anodize buildup. However, in small-diameter blind threaded holes (e.g., M3 to M5), capillary force prevents fluid circulation during the anodizing rinse step.

Capillary pressure in a small channel is calculated as:

Pc=(2⋅γ⋅cosθ)/r

Where γ is surface tension, θ is contact angle, and r is hole radius. As r decreases, capillary retention spikes.

Anodizing bath solution remains trapped at the root of small blind threads. The localized concentration of acid causes excessive aluminum dissolution followed by localized oxide accumulation, effectively doubling the film thickness at the bottom threads.

Engineering Failure Case at Dazao

A medical housing part specified M3 blind threaded holes with a standard Class 6H thread tolerance. Pre-anodize thread plug gauges passed inspection without issue.

Following Type III Hardcoat anodizing, stainless steel mounting screws froze halfway into the blind holes, shearing off the screw heads.

Engineering Solution

1. Oversized Tapping: Use oversized taps (GH3 or GH4 tap limits) for all small internal threads designated for hardcoat anodizing to create extra pitch diameter clearance.

2. Explicit CAD/Drawing Specification: Clearly separate thread callouts on engineering prints:

· Pre-Anodize Thread Class: Oversized Special

· Post-Anodize Thread Class: ISO 6H

3. Through-Hole Modification: Convert blind threaded holes to through-holes whenever possible to allow free fluid flow during plating washes.

Blind Spot 3: Wall Resonance and Asymmetric Anti-Frequency Structural Design

When high-speed milling thin-walled aluminum pockets, the interaction of cutting flutes against thin aluminum structures induces severe chatter if the Blade Pass Frequency (fbp) matches the Natural Resonance Frequency (fn) of the pocket wall.

Blade pass frequency is defined as:

fbp=(RPM×Flute Count)/60

If a 4-flute end mill runs at 12,000 RPM, fbp=(12,000×4)/60=800 Hz. If the pocket wall's natural frequency is also 800 Hz, standing acoustic waves form, producing deep chatter marks and ruining surface finish regardless of feed adjustments.

Engineering Solution

· Break Symmetry: Instead of designing four identical 2.0 mm thick pocket walls, vary wall thicknesses slightly (e.g., Wall A = 2.0 mm, Wall B = 2.4 mm). Changing the cross-sectional mass shifts fn across adjacent walls, suppressing standing wave resonance.

· Micro-Draft Angles: Incorporate a 0.5° to 1.0° draft angle on internal pocket walls. A tapered wall has a continuously variable cross-section along its height, which prevents any single resonant frequency from amplifying during the milling pass.

Fixturing, Datum Strategy, and Setup Reduction Techniques

Every time a machine operator unclamps a part, rotates it, and reclamps it in a new orientation (a "setup"), positional error increases, and machine idle time inflates unit cost.

1. Evaluating 3-Axis vs. 5-Axis VMC Economics

· 3-Axis Machining: Ideal for parts with features on a single face or simple top/bottom orientations. Requires manual flipping or multiple fixtures. Low machine hourly rate ($45 - $65/hr).

· Leveraging advanced 5-axis CNC machining capabilities is ideal for complex organic contours, angled cross-holes, or impeller geometries, or impeller geometries. Eliminates multiple setups but carries a higher machine hourly rate ($90 - $140/hr).

To minimize cost, design parts so that all critical features (pockets, holes, slots) are accessible from a single vector, allowing completion in a single setup on a 3-axis VMC (aluminum cnc design).

2. Feature Consolidation and Datum Hole Placement

· Establish Primary Datum (Datum A): Design a large, flat reference surface with an Ra 0.8 µm finish and 0.02 mm flatness specification.

· Incorporate Tooling Holes: Add two non-critical 4.0 mm or 6.0 mm reamed dowel holes on the primary face. These holes serve as physical location points for CNC fixtures, speeding up setup alignment across production runs.

· Provide Clamping Flanges: For large, thin plates, add sacrificial clamping tabs or stepped outer shoulders. This gives the vise parallel surfaces to grip without bowing the finished part geometry.

Aluminum Alloy Selection Matrix for CNC Machining

Selecting the right alloy temper directly influences cutting speed, edge quality, and tooling costs. For a broader technical breakdown of heat treatments and corrosion resistance, refer to our extended aluminum alloy selection guide for CNC machining. edge quality, and the overall aluminum CNC machining process.

1. Al6061-T6 / Al6061-T651

· Properties: Excellent weldability, high corrosion resistance, good structural strength (aluminum part design guidelines).

· Machinability: Chips form cleanly with appropriate chipbreakers; minimal tool adhesive wear.

· Best Use: Structural frames, machine components, mounting brackets, optical plates.

2. Al7075-T6 / Al7075-T6511

· Properties: Zinc-alloyed high-strength material with mechanical yield strength matching structural steels (~500 MPa).

· Machinability: Exceptional. Produces short, brittle chips that clear pockets easily, allowing aggressive feeds and speeds.

· Best Use: Aerospace structural brackets, high-load robotic arms, performance automotive components.

3. Al5052-H32 / Al5083-H111

· Properties: High magnesium content providing superior saltwater corrosion resistance. Highly ductile.

· Machinability: Poor for precision milling. The soft aluminum tends to gum up end mill flutes, forming Built-Up Edge (BUE) and leaving burrs along cut edges.

· Best Use: Marine enclosures, welded sheet metal/machined hybrid structures.

Mechanical Properties & Machinability Index of CNC Aluminum Alloys

Implementing Early DFM Workflows with Dazao Machinery

Applying these aluminum cnc design guidelines during initial product development eliminates expensive engineering change orders (ECOs) once tooling is underway.

At Xiamen Dazao Machinery, our engineering team supports buyers and designers at the 80% CAD completion phase. By running automated CAM toolpath simulations and tolerance stack-up analyses before stock is cut, Dazao helps clients achieve:

1. Cycle Time Reduction: Optimizing internal radii and pocket depths cuts machining time by 20% to 35%.

2. Quality Assurance: Our IATF16949 precision quality inspection procedures ensure full raw material heat certifications, CMM dimensional verification, and optical pin gauge testing on all threaded features, and optical pin gauge testing on all threaded features.

3. Transparent Costing: Identifying over-toleranced features allows engineers to loosen non-critical specifications before production starts.
