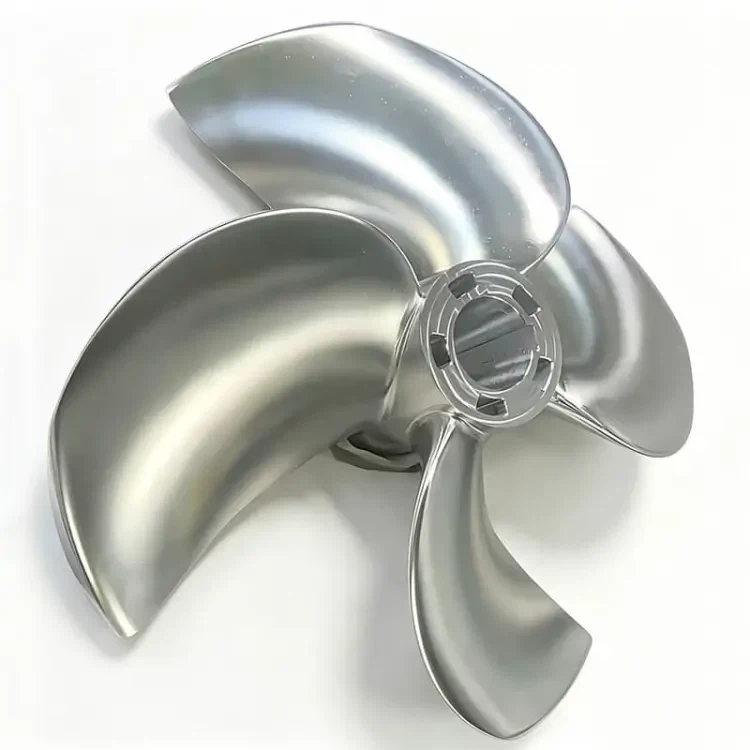

Precision CNC Machined 4 Blade Aluminum Propeller Production

Technical Capabilities in 5 Axis Propeller and Impeller Machining

Eliminating structural casting defects through high-precision subtractive manufacturing.

This series of CNC Machined 4-Blade Aluminum Propellers and Impellers is manufactured using high-precision 5-axis CNC machining services. Each propeller starts as a solid block of forged AL6061-T6 billet, eliminating the structural porosity and micro-voids common in traditional cast propellers. Designed as direct replacements and upgrades for major outboard brands like Mercury, Yamaha, and Suzuki, these propellers support interchangeable hub kits, custom pitch angles, and high-thrust profiles. We provide end-to-end contract manufacturing services, from initial prototyping to low-to-medium volume batch production, serving marine parts distributors, outboard motor brands, and small-to-medium shipyards.

Dimensional Tolerances and Material Properties of CNC Aluminum Propellers

A rigorous parametric breakdown of billet alloy grades, mechanical limits, and geometry.

Our facility processes high-precision CNC aluminum parts to meet structural and hydrodynamic requirements. The following specifications represent our standard production and inspection parameters for CNC marine propellers:

Case Studies in Marine Propulsion Component Manufacturing and Rectification

Transparent project reviews detailing production challenges, root causes, and final resolutions.

We have spent nine years refining our 5-axis impeller and propeller manufacturing processes. Below are three real-world production challenges we encountered in our early years, the engineering root causes we identified, and the permanent quality assurance systems we implemented to prevent them.

Case 1 Resolving High RPM Vibration on Outboard Replacement Propellers

· The Issue: We manufactured a batch of four-blade replacement propellers designed to fit a 150 HP Mercury outboard. Although the physical dimensions matched the provided CAD drawings, the parts did not undergo dynamic balancing. During high-RPM testing by the customer, approximately 20% of the propellers caused noticeable hull vibration, making them unsellable as premium replacements. The entire initial batch was returned.

· Root Cause Analysis: 5-axis milling from solid billet can introduce minor density variations or subtle fixture shifts between blade setups, creating a mass imbalance that is only detectable under high-speed rotation.

· Engineering Rectification: We integrated a mandatory dynamic balancing step into our standard operating procedure. Every single propeller is now mounted on a dynamic balancing machine to identify mass centers. Balance corrections are performed by removing precise micro-amounts of material from non-functional hub areas. This maintains a balance grade within ISO G2.5. The client has since returned for multiple yearly production runs without further vibration complaints.

Case 2 Correcting Hydrofoil Profile Deflection for Low Speed High Thrust Output

· The Issue: An Australian client ordered a custom batch of four-blade, low-pitch, high-thrust propellers for 9.9 HP heavy-duty utility workboats. The target was to achieve a 20% increase in low-speed bollard pull compared to OEM cast propellers. Our initial prototype batch only achieved an 8% increase during field trials, delaying the project.

· Root Cause Analysis: The hydrofoil blade profile was machined with minor tool deflection, causing a deviation in the true pitch angle and pressure-side curvature near the tip. This deviation reduced overall hydrodynamic efficiency.

· Engineering Rectification: We implemented a dual-step solution: first, we introduced 3D coordinate measuring machine (CMM) scans of the finished blade profile to verify profile deviations remain under 0.05 mm. Second, we established an internal database of thrust profiles across different horsepower ratings. We adjusted our tool paths to compensate for tool pressure during thin-blade milling. The updated prototypes achieved a 24% thrust increase, meeting the client's targets.

Case 3 Adjusting Internal Spline Dimensions to Offset Hard Anodizing Thickness

· The Issue: We supplied a Canadian boatyard with interchangeable hub aluminum propellers. Upon delivery, nearly 30% of the plastic/brass hub inserts could not be pressed into the internal spline cavities of the aluminum propeller bodies, or they fit too tightly, making field replacement difficult.

· Root Cause Analysis: We machined the internal splines using standard nominal dimensions without accounting for the layer thickness added by the subsequent hard anodizing process (which adds approximately 15–20 μm per side).

· Engineering Rectification: We compiled a detailed spline profile database for Mercury, Yamaha, and Suzuki hub styles. We modified our pre-machining spline dimensions to build in a clearance tolerance that accounts for anodizing buildup. We also introduced physical go/no-go plug gauges to test every spline profile after surface treatment, ensuring a smooth slip-fit with zero rotational play.

Metrology Standards and Quality Control Processes for Marine Propellers

Dynamic balancing and profile verification systems that protect gearboxes and lower units.

Unlike conventional marine manufacturers that rely on casting, we focus on high-precision machining with quantifiable quality metrics.

Hydrofoil Geometry Verification and ISO 1940 G2.5 Balance Controls

Many cast propellers suffer from uneven weight distribution and blade distortion, leading to cavitation and premature bearing wear in the lower unit. Our CNC process prevents this:

· Profile Geometry: 5-axis CNC machining allows the entire blade face to be finished in a single setup. This ensures the blade geometry stays within ±0.05 mm of the design file, maintaining consistent hydrodynamic lift.

· Dynamic Balance: We balance 100% of our machined propellers to the ISO 1940 G2.5 standard. This reduces rotational vibration by up to 70% compared to typical cast props, helping protect the outboard's drive shaft and seals.

Outboard Interchangeable Hub Spline Database for Universal Fitment

We maintain a reference database of spline and hub dimensions for major marine engine brands. This includes exact spline tooth counts, pressure angles, and depth profiles for motors ranging from 2.5 HP to 300 HP.

· System Compatibility: Our interchangeable hub designs are compatible with standard hub kits (including Flo-Torq, Vortex, and Turning Point styles).

· Quality Check: Each batch is tested with physical spline gauges to verify that replacement hubs slide into place securely without wobble.

Scenario Specific Decision Matrix for Pitch Selection and Material Selection

We assist buyers in selecting the correct configuration during the quotation stage to optimize vessel performance.

Performance Evaluation of Billet CNC Propellers vs Cast Aluminum Propellers

Direct engineering comparison of material density, tolerances, and tool-free production economics.

Our CNC milling services ensure high structural density and isotropic physical properties, resolving the common pain points associated with casting:

Engineering Selection Guide for Blade Pitch and Aluminum Alloys

Technical parameters for balancing vessel speed, hydrodynamic thrust, and component durability.

Comparison of Drag and Thrust Between Three Blade and Four Blade Profiles

· 3-Blade Propellers: Best suited for light-to-medium displacement hulls where top-end speed is the primary requirement. They offer lower overall surface drag, allowing the engine to reach maximum RPMs efficiently.

· 4-Blade Propellers: Engineered for heavier load applications, workboats, and twin-engine offshore setups. The additional surface area provides higher low-speed thrust, reduces time to plane, and improves fuel economy in rough seas by minimizing slippage.

Rotational Speed Adjustments Based on Pitch Dimension Variations

· Standard Rule: A change of 1 inch in propeller pitch typically alters engine rotation by approximately 150 to 200 RPM at wide-open throttle (WOT).

· Heavy Loads: For commercial workboats, reducing the pitch by 1 to 2 inches helps the engine run within its optimal power band, preventing engine lugging.

· High Speeds: For light recreational vessels, increasing the pitch helps maximize top speed, provided the engine can still reach its rated maximum RPM.

Structural and Corrosion Thresholds for Aluminum and Stainless Steel Alloys

· Forged AL6061-T6: Provides a balanced combination of tensile strength, weight, and cost. In the event of a shallow-water impact, the aluminum blade is designed to deform. This absorbs the impact energy and helps protect the expensive gearcase components inside the outboard lower unit from severe damage.

· Stainless Steel (316L/Duplex): Recommended for severe offshore duty, high-horsepower applications, and sandy or silty waters. The high material hardness prevents blade flex under load, maintaining efficiency, but provides minimal protection to the gearcase during a hard strike.

Industrial Applications and Production Ranges for CNC Machined Propellers

Versatile marine configurations engineered for commercial workboats and aftermarket supply chains.

Our manufacturing facility produces several marine propulsion designs:

· 3-Blade Aluminum Propellers: Standard replacements for pleasure craft and runabouts.

· 4-Blade High-Thrust Propellers: Optimized for heavy workboats, pontoons, and commercial fishing vessels.

· Multi-Blade Custom Impellers: Closed and open-face impellers for jet drives, personal watercraft (PWC), and industrial fluid pumps.

· Interchangeable Hub Kits: Splined inserts and thrust washers configured to fit Mercury, Yamaha, and Suzuki specifications.

Target Applications & Harsh Operational Scenarios：

Marine Aftermarket Distribution & Refits

Supplies vibration-free replacement propellers to international distributors matching precise spline dimensions for direct outboard fitment.

Commercial Fishing & Aquaculture Operations

Delivers high cavitation and wear resistance for heavy-duty propulsion in shallow, silt-heavy aquaculture environments.

Marine Salvage & Offshore Towing

Optimizes low-speed thrust and bollard pull for tugboats and salvage vessels operating in strong currents.

Coast Guard & Search-and-Rescue Patrols

Features low-noise, rapid-planing propellers and impellers for military, patrol, and search-and-rescue tactical craft.

Charter Boat & Ferry Transportation Fleets

Adjusts pitch profiles to reduce fuel consumption and engine wear for commercial ferries and charter fleets.

Industrial Jet Propulsion & Fluid Pumps

Integrates durable multi-blade billet impellers into shallow-water jet boats and municipal drainage pumps.

Manufacturing Workflow and Engineering Validation Milestones

A systematic path from design file verification to finished surface treatment and global delivery.

1. DFM Review: Our engineering team reviews your 2D drawings (PDF) or 3D models (STEP/IGS/Parasolid) to verify blade clearances and tool access.

2. Quotation: We provide a transparent cost breakdown based on material volume, machining time, and surface treatment requirements.

3. Prototyping: We machine and finish a first-article prototype within 7 business days for physical fit and performance testing.

4. Batch Production: Upon approval, we schedule production using our multi-axis CNC machines to ensure consistent quality.

5. Surface Treatment: Parts undergo anodizing or powder coating according to the specified thickness requirements.

6. Inspection & Shipping: Every part is checked on a dynamic balancing machine and verified with spline gauges before being packed in protective foam for global transport.

Metrology Protocols and Non Destructive Quality Control Inspections

Multi-stage dimensional verification to guarantee physical compliance at every stage.

Our quality assurance program is designed to monitor and document every stage of production:

· Material Certification: We verify the alloy composition of all incoming forged aluminum billets using optical emission spectrometers.

· First Article Inspection (FAI): We generate a complete measurement report using our coordinate measuring machine (CMM) before starting batch runs.

· In-Process Checks: Operators check key dimensions every 30 minutes to monitor tool wear and maintain tolerances.

· Dynamic Balance Testing: We balance finished propellers to the ISO 1940 G2.5 standard to minimize high-speed vibration.

· Fit Verification: We test spline and hub dimensions using go/no-go gauges modeled after OEM outboard shafts.

Global Logistics Framework and Trade Compliance for Outboard Components

Securing international supply chains with neutral packaging, cargo protection, and clear documentation.

· Shipping & Logistics: We offer FOB, CIF, and DDP (Delivered Duty Paid) shipping options to handle customs clearance and delivery directly to your facility.

· Non-Disclosure Agreements (NDA): We protect proprietary geometries and custom blade profiles with strict, legally binding NDAs.

· OEM Branding: We offer custom laser marking for part numbers, pitch sizes, and corporate logos directly onto the propeller hub.

· Clearance Documentation: Every shipment includes material certifications, dynamic balancing reports, and dimensional inspection sheets to simplify customs processing.

FAQs





01.Do you manufacture a 3 blade aluminum boat propeller?

Yes, we manufacture custom three-blade aluminum propellers using 5-axis CNC milling. These propellers are suitable for light-to-medium displacement hulls, offering high top-end speeds and low hydrodynamic drag. We customize the diameter and pitch to match your engine specifications.

02.What are the core 4 blade aluminum propeller benefits?

Four-blade aluminum propellers provide superior low-speed thrust, faster planing times, and reduced hull vibration compared to three-blade designs. They improve fuel efficiency and maneuvering under heavy loads, making them suitable for commercial utility vessels, pontoon boats, and heavy-duty marine applications.

03.Where can I find an aluminum boat propeller pitch guide?

We provide a pitch selection guide during our design review. The general guideline is that each inch of pitch adjustment alters engine speed by 150 to 200 RPM. We help you choose the correct pitch based on boat weight and engine horsepower.

04.Can you produce a high thrust aluminum propeller 9.9 hp?

Yes. Our 9.9 HP high-thrust propellers are specifically designed for heavy workboats and sailboats. Featuring an optimized four-blade design and a lower pitch, they deliver over 20% more low-speed bollard pull than standard cast propellers, improving control and docking maneuverability.

05.What is the difference in aluminum vs stainless steel propeller performance?

Aluminum propellers are cost-effective, lightweight, and absorb impacts to protect the lower unit's gears from damage. Stainless steel propellers are stronger and resist flex under heavy loads, which improves efficiency, but they transfer impact forces directly to the drive shaft gears.

06.Where can I source affordable aluminum marine propellers online?

We supply machined aluminum marine propellers directly from our ISO 9001 factory. By eliminating middlemen and using CNC machining instead of expensive casting molds, we provide competitive pricing for low-to-medium volume production runs, making custom propellers accessible for commercial buyers.

Ready to reduce propulsion vibration and optimize fuel efficiency for your marine fleet or inventory?

Upload your 2D technical drawings (PDF) or 3D CAD files (STEP/IGS/Parasolid) today.

Our engineering team will review your file and provide a detailed DFM feedback report along with a production quote within 24 hours.
