6061 Aluminum CNC Machining Guide: T651, Tolerances & Cost

6061-T6 aluminum represents the primary material choice for precision CNC machining, offering an optimal combination of yield strength (276 MPa), tensile strength (310 MPa), thermal conductivity (167 W/m·K), and a 70% machinability rating relative to 2012-T3 brass. For parts requiring heavy volumetric material removal exceeding 40%, specifying 6061-T651 is necessary to eliminate internal residual stress warpage. Precision tolerances of ±0.010 mm (±0.0004 in) are achievable under temperature-controlled environment conditions (20°C ± 1°C).

Plating thickness build-up must be factored into pre-machining dimensions: Type II anodizing adds 5 to 15 µm per surface, while Type III hardcoat anodizing adds 25 to 50 µm per surface (50% penetration, 50% dimensional growth). Tooling strategies require 37-degree helix angle 3-flute carbide end mills running at cutting speeds (V_c) of 300 to 800 m/min with high-pressure coolant (minimum 20 bar) to eliminate built-up edge formation.

Why 6061 Aluminum is the CNC Machining Benchmark?

Selecting the correct structural alloy directly impacts manufacturing efficiency, mechanical integrity, and component cost. 6061 aluminum machining accounts for over 65% of all non-ferrous chip-making operations globally. This precipitation-hardened aluminum alloy containing magnesium and silicon as its major alloying elements provides a balance of mechanical properties, weldability, corrosion resistance, and economical unit pricing.

Core Engineering Advantages

· Density: 2.70 g/cm³ (0.0975 lb/in³), yielding high strength-to-weight efficiency for structural components.

· Modulus of Elasticity: 68.9 GPa (10,000 ksi), offering predictable elastic deflection under static and dynamic loading.

· Thermal Conductivity: 167 W/m·K, enabling rapid heat dissipation in electronics enclosures and heat sinks.

· Corrosion Resistance: High atmospheric and saltwater resistance due to the immediate formation of a passivation oxide layer (Al₂O₃).

Industry Applications

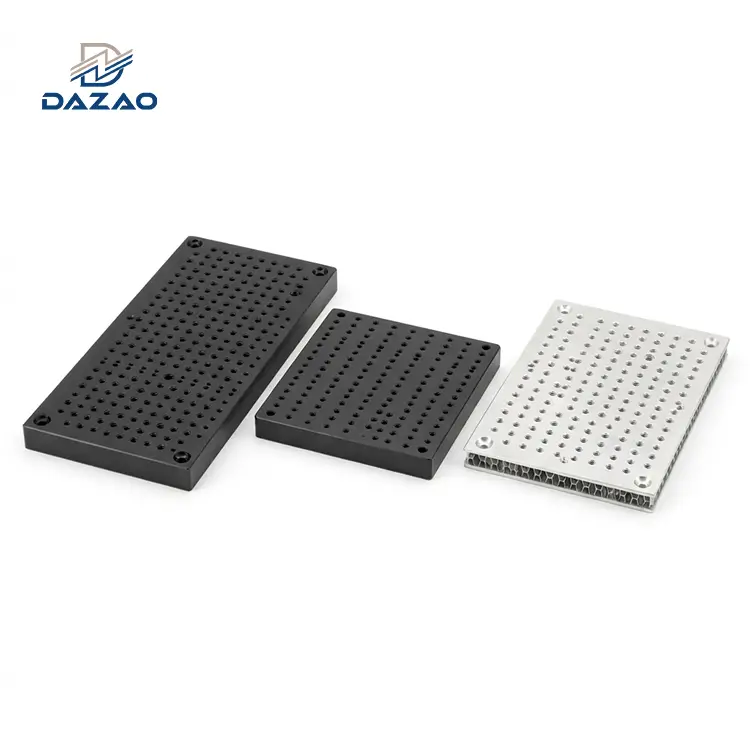

6061 aluminum cnc parts serve as core components across demanding sectors:

1. Aerospace & Defense: Avionics chassis, internal mounting brackets, sensor housings, and structural frames.

2. Automotive & EV: Suspension control arm prototypes, battery pack cold plates, custom intake manifolds, and brake caliper bodies.

3. Medical Devices: Surgical instrument handles, diagnostic equipment chassis, and robotic end-effector housings.

4. Industrial Automation: Robotic arms, linear actuator mounts, pneumatics manifolds, and high-precision inspection fixtures.

Industry Realities Overcoming Generic Advice

Standard manufacturing guides typically present nominal material data sheets and generic cutting parameters. They frequently fail to address real shop-floor failures, such as internal residual stress relaxation during pocketing, acid entrapment during post-machining anodizing, and harmonic chatter in thin-wall geometries.

Operating from a 12,000-square-meter facility certified to ISO9001:2015 and IATF16949:2016, Xiamen Dazao Machinery processes over 120 metric tons of Al6061 monthly. This guide addresses critical engineering trade-offs, material physics, stress management protocols, and precise machining strategies required for zero-defect production.

Chemical Metallurgy & Temper Specifications (6061 Aluminum Properties)

Understanding the metallurgy of 6061 aluminum properties is fundamental to selecting the correct stock for cnc machining 6061 aluminum.

Chemical Composition Analysis

The chemical composition of 6061 aluminum complies with ASTM B209 / DIN EN 573-3 standards. The precise weight percentages of alloying elements directly govern chip formation, tool wear, and mechanical strength:

· Magnesium (Mg: 0.80% – 1.20%): Combines with silicon to form magnesium silicide (Mg₂Si), the primary hardening phase responsible for strength after heat treatment.

· Silicon (Si: 0.40% – 0.80%): Formulated in stoichiometric ratio with magnesium to maximize Mg₂Si precipitate density while minimizing free silicon particles that accelerate tool abrasive wear.

· Copper (Cu: 0.15% – 0.40%): Increases tensile strength and hardness, though slightly reducing general corrosion resistance compared to 5000-series alloys.

· Chromium (Cr: 0.04% – 0.35%): Controls grain growth during solution heat treatment and recrystallization, preventing grain coarsening.

· Iron (Fe: Max 0.70%): Impurity element. Keeping Fe below 0.35% in premium grade stock prevents brittle Fe−Si−Al intermetallic phases that cause surface pitting during high-speed finishing.

· Zinc (Zn: Max 0.25%), Titanium (Ti: Max 0.15%), Manganese (Mn: Max 0.15%): Trace additions for grain refinement and phase stabilization.

· Aluminum (Al): Balance (95.85% – 98.56%).

Heat Treatment Tempers: O vs T4 vs T6 vs T651

The mechanical response during 6061 aluminum machining service operations depends on the temper designation.

1. 6061-O (Annealed): Heated to 415°C for 2 to 3 hours, then slow-cooled at 10°C/hour to 260°C. Possesses lowest yield strength (55 MPa) and high ductility. 6061-O exhibits extreme stickiness during cutting, leading to severe built-up edge (BUE) and long, stringy chips. Machining in O-temper is discouraged except for preliminary roughing prior to full heat treatment.

2. 6061-T4 (Solution Heat Treated & Naturally Aged): Heated to 530°C to dissolve alloying elements into solid solution, water-quenched, then naturally aged at room temperature. Hardness reaches ~65 HBW. Machinability remains moderate; chips are gummy compared to T6.

3. 6061-T6 (Artificially Aged): Solution heat-treated at 530°C, water-quenched, then artificially aged at 160°C to 175°C for 8 to 18 hours. Precipitates Mg₂Si throughout the aluminum matrix. Yield strength increases to 276 MPa, hardness reaches 95 HBW, and machinability reaches optimal crisp chip-breaking behavior.

4. 6061-T651 (Stress-Relieved by Stretching): Undergoes the exact same heat treatment as T6, but includes a controlled permanent stretch of 1.5% to 3.0% immediately after quenching and prior to artificial aging. This mechanical stretching reorganizes and cancels internal residual stresses introduced during liquid quenching.

Why 6061-T6/T651 is Preferred for Precision CNC Machining?

Executing 6061 t6 aluminum machining or 6061 t6 cnc machining allows the tool cutting edge to shear cleanly through the metal matrix without excessive plastic deformation ahead of the tool tip. High hardness (95 HBW) minimizes adhesive wear on the rake face, promotes short segmented chips under proper chip-breaker geometry, and delivers surface finishes lower than Ra 0.4 µm (16 µin) in single-pass finishing operations.

Comparative Material Evaluation: Best Aluminum for CNC Machining

Engineers often evaluate whether 6061 qualifies as the best aluminum for cnc machining for a specific design. For a detailed alloy breakdown, review our comprehensive guide to CNC aluminum grades.

Where designs require moderate structural loads combined with welding, high corrosion resistance, or complex anodizing requirements, custom 6061 aluminum parts offer superior value compared to 7075 or 2024 alloys.

6061-T6 vs 6061-T651 Stress Relief: Preventing Machining Distortion

A frequent defect in precision 6061 aluminum machining is post-machining component distortion. Parts that inspect within tolerance on the CNC fixture often warp immediately upon clamp release or within 24 hours of resting at room temperature.

The Physics of Residual Stress Formation

During the manufacturing of extruded bars or rolled plates, 6061 aluminum is rapidly water-quenched from 530°C down to ambient temperature. The exterior skin cools instantaneously and contracts, while the core remains hot and expanded. As the core subsequently cools and contracts, it is constrained by the rigid outer skin.

This thermal gradient establishes an internal stress profile across the plate thickness:

· Outer Surfaces: High compressive residual stress (typically -100 MPa to -150 MPa).

· Inner Core: High tensile residual stress (typically +50 MPa to +100 MPa).

When an engineer designs a part requiring significant pocketing on one side (e.g., removing 60% of the material from the top face), the cutting tool removes the outer compressive stress layer. The underlying internal tensile stresses in the core are unconstrained, causing the part to bow upward like a banana.

The mathematical deflection (δ) resulting from unbalanced internal moments (M_r) can be calculated as:

δ=(Mr⋅L²)/(8⋅E⋅I)

Where:

· M_r is the net ungrounded internal bending moment (N⋅m).

· L is the unconstrained length of the workpiece (m).

· E is the Young Modulus (68.9×10⁹ Pa).

· I is the area moment of inertia (m⁴).

Even modest asymmetric material removal from a standard 6061-T6 plate induces bending moments sufficient to cause millimeter-scale deflections over long spans.

Engineering Failure Case Study at Xiamen Dazao Machinery

Project Background

A tier-1 industrial automation client engaged Dazao Machinery to manufacture an 800 mm x 400 mm x 25 mm precision mounting base plate featuring a grid of linear guide rails, light-weight pockets (18 mm deep), and tight overall flatness requirements (0.05 mm total indicator reading over 800 mm).

Initial Processing Route

· Raw Material Specified: Standard extruded 6061-T6 plate stock (30 mm thickness).

· Machining Strategy: Single-sided setup. Facing top surface, milling deep pockets to 18 mm depth, drilling/tapping mounting holes, final light pass on flat surfaces.

· Failure Mode: Upon releasing the hydraulic vice clamps, the center of the 800 mm plate sprang upward. Coordinate Measuring Machine (CMM) inspection recorded a bow of 2.15 mm, exceeding the 0.05 mm specification by 4,300%.

Financial & Operational Impact

The entire initial production run of 15 plates was scrapped, incurring $4,200 in direct material and machine time losses, along with a 4-day line stoppage.

Root Cause & Corrective Engineering Protocols

Protocol 1: Mandatory Specification of 6061-T651 Plate

Standard 6061-T6 plate must never be utilized for asymmetrical or heavy material removal components. Procurement documents and CAD drawings must explicitly mandate 6061-T651 per ASTM B209 / AMS 4027. The stretching process in T651 reduces internal residual stress levels by 85% to 92%, providing a stable substrate for precision milling.

Protocol 2: Symmetrical Stock Removal (50/50 Strategy)

When reducing plate thickness from 32 mm to 25 mm while milling 12 mm deep internal pockets:

1. Rough-machine Top Face: Remove 3.5 mm of outer stock, rough-mill pockets to 50% depth. Leave 1.0 mm finishing stock on all features.

2. Flip Part and Rough Bottom Face: Remove 3.5 mm of bottom stock, rough-mill bottom features.

3. Equalizing stress distribution across the central neutral axis minimizes net bending moments (M_r→0).

Protocol 3: Intermediate Thermal Stress Relief Annealing

For aerospace structural components requiring flatness tolerances under 0.025 mm (0.001 in) across dimensions greater than 500 mm:

· Perform rough machining leaving 0.5 mm stock allowance on all functional surfaces.

· Unclamp part completely to allow free elastic deformation.

· Subject part to thermal stress relief in a vacuum furnace at 160°C ± 5°C for 3 hours, followed by slow furnace cooling at 15°C/hour down to 60°C.

· Re-clamp lightly on a 3-point kinematic locating fixture and perform final finish machining.

Anodizing Thickness Stack-Up & Acid Entrapment in Blind Holes

Completing high-precision 6061 aluminum cnc machining does not guarantee a compliant finished component. Post-machining surface treatments, specifically anodizing, alter dimensions and introduce structural failure risks if pre-finish tolerances are miscalculated.

Anodizing Dimensional Growth and Penetration Mechanics

Anodizing converts surface aluminum into aluminum oxide (Al₂O₃). Unlike plating processes that deposit material purely outward onto the substrate, the anodic film grows both inward into the metal matrix and outward from the original boundary in an exact 50/50 ratio.

For Type II Anodizing with a target film thickness (T) of 20 µm (0.0008 in):

· Surface growth per side (T_growth) = 10 µm (0.0004 in).

· An external shaft diameter increases by 20 µm (0.0008 in).

· An internal bore diameter decreases by 20 µm (0.0008 in).

For Type III Hardcoat Anodizing with a target film thickness (T) of 50 µm (0.002 in):

· Surface growth per side (T_growth) = 25 µm (0.001 in).

· An external shaft diameter increases by 50 µm (0.002 in).

· An internal bore diameter decreases by 50 µm (0.002 in).

If an engineer designs a bearing bore to 28.000 mm (+0.010 / -0.000 mm) for an H7 press fit and the machinist turns the raw bore to 28.005 mm prior to Type III hardcoating, the final post-anodized diameter reduces by 0.050 mm down to 27.955 mm. The bearing will fail to press into the housing, rendering the part non-conforming.

Pre-Plating Machining Tolerancing Strategy

When ordering precision 6061 aluminum machining, CAD models and engineering drawings must specify pre-plating machining dimensions or explicitly require the supplier to compensate during cutter radius offset adjustments.

For threaded holes intended for Type III hardcoat anodizing:

· Standard pitch diameter taps will result in thread interference post-anodizing.

· Machinists must utilize oversize taps (e.g., GH3 or GH5 limits) or custom thread-milling CNC programs that open pitch diameters by 2 * T to account for oxide buildup on thread flanks.

Dazao Failure Case Study: Blind Hole Corrosion and Thread Destruction

Background

Dazao Manufactured 500 units of custom hydraulic valve blocks from 6061-T6 with multiple M4x0.7 blind tapped holes (15 mm deep) and internal fluid channels. The specification required MIL-A-8625 Type III Hardcoat Anodizing (Class 1).

Failure Mode

Three weeks post-delivery, the customer reported severe white powdery efflorescence surrounding all blind tapped holes. Thread gauges failed to enter, and internal threads crumbled under nominal torque (1.2 Nm).

Root Cause Analysis

During anodizing, sulfuric acid electrolyte (H₂SO₄, 15% concentration) became trapped in the bottom of deep M4 blind tapped holes. Standard dip-rinsing lines failed to flush acid out of high-aspect-ratio holes (15 mm/4 mm=3.75).

During final hot-water sealing (98°C), trapped acid boiled, reacting aggressively with the un-anodized aluminum substrate at the bottom of the thread. This generated hydrated aluminum sulfate salts (Al₂(SO₄)₃⋅xH₂O) that expanded and destroyed thread geometry from the inside out.

Raw Material Lot Variations and Anodizing Color Mismatch

A frequent complaint when procuring 6061 aluminum cnc parts for visible consumer assemblies is batch-to-batch color variation after Type II color anodizing.

Minor metallurgical variations in silicon (0.40% to 0.80%) and iron (0.10% to 0.70%) between different mill heat numbers alter light absorption through the porous anodic film. To guarantee uniform color matching across multi-part assemblies, Dazao locks raw material supply to a single mill heat lot per production run and enforces strict bath chemistry parameters (sulfuric acid concentration, temperature controlled within ±0.5°C, and dye bath pH controlled within ±0.1).

Thin-Wall Resonant Chatter & Deep Cavity Built-Up Edge (BUE) Solutions

High-speed 6061 aluminum milling operations encounter physical constraints when geometries feature wall thicknesses under 1.0 mm (0.040 in) or pocket depth-to-width aspect ratios exceeding 4:1.

Physics of Built-Up Edge (BUE) Formation

Al6061 exhibits high ductility and a strong chemical affinity for cutting tool substrates (tungsten carbide). At localized cutting zone temperatures between 200°C and 350°C, aluminum pressure-welds onto the tool rake face.

This accumulated layer acts as a false cutting edge, increasing effective tool tip radius, degrading surface finish from Ra 0.8 µm to over Ra 6.3 µm, increasing cutting forces by up to 400%, and causing micro-chipping of carbide tool edges.

Thin-Wall Resonant Chatter Stabilization

When wall thickness drops below 1.0 mm, natural frequency (f_n) of the structural wall drops into the range of tool tooth pass frequencies (f_p=RPM×Flutes/60). Resonant chatter causes scalloping, dimensional wall bowing, and part fracture.

Dazao Engineering Solutions for Thin Walls

1. Dynamic Frequency Tuning: Utilizing accelerometer impact testing to identify stable stability lobe zones, matching spindle RPM to the dynamic natural frequency of the thin-wall setup.

2. Sacrificial Structural Support: For wall structures under 0.5 mm, pockets are filled with low-melting-point water-soluble wax (melting point 65°C) or specialized low-melt alloys (e.g., bismuth-tin alloy). The material supports the wall during outer profile milling and is subsequently melted away in hot water without thermal damage to the aluminum structure.

3. High-Vacuum Damping Fixtures: Custom vacuum plates featuring closed-cell silicone gasketing apply uniform downward pressure across the entire component footprint, dampening vibration modes during high-speed finishing passes.

Optimized Feeds, Speeds & Tooling Setup (6061 Aluminum Machining Processes)

Executing efficient 6061 aluminum machining requires selecting process parameters optimized for material hardness, thermal dissipation, and chip geometry.

Advanced Milling Strategies (6061 Aluminum Milling)

For a broader overview of high-speed tooling strategies, read our complete guide to aluminum CNC milling.

· Trochoidal Milling (High Efficiency Milling - HEM): Utilizes small radial engagement (a_e=5%−10% Cutter Diameter) combined with full axial depth of cut (a_p=200% Cutter Diameter) at maximum feed rates. This spreads heat and tool wear across the entire flute length, extending tool life by up to 300%.

· 5-Axis Simultaneous Milling: Eliminates multiple setups for complex structural geometries. Reducing setup changes prevents cumulative orientation errors, maintaining geometric positional tolerances within 0.015 mm. Learn more about our 5-axis precision CNC milling services.

Precision Turning Strategies (6061 Aluminum Turning)

When performing 6061 aluminum turning for cylindrical shafts, bearing housings, or threaded connectors via our precision CNC turning services:

· Use ground PCD (Polished Polycrystalline Diamond) or uncoated micro-grain carbide inserts with a 0.2 mm to 0.4 mm nose radius.

· Ensure feed rates exceed 0.12 mm/rev to break ductile continuous chips into tight C-shaped fragments, preventing bird-nesting wrapping around the lathe spindle.

Coolant Delivery Systems

High-pressure flood coolant (8% to 10% water-soluble synthetic emulsion concentration) directed at 20 bar to 70 bar directly into the cutting zone is required during deep cavity pocketing. High pressure flushes chips out of deep features, preventing re-cutting of chips that leads to surface pitting and premature tool destruction.

Precision Tolerances & Surface Finishing Stack-Up (Precision 6061 Aluminum Machining)

Manufacturing components requiring precision 6061 aluminum machining demands understanding capability limits and how post-processing impacts final dimensions.

Surface Finishing Options Breakdown

To select the appropriate post-treatment for your part, consult our detailed aluminum surface finishing guide.

Thread Integrity in 6061 Aluminum: Direct Tapping vs. Thread Inserts

Because 6061-T6 possesses a moderate shear strength (207 MPa), directly tapped threads subject to repeated assembly/disassembly (e.g., access covers, modular fixtures) risk thread stripping after 20 to 50 torque cycles.

For high-reliability aerospace, automotive, or robotics applications, specifying STI Helicoil inserts or Key-Locking Inserts (Keenserts) in 6061 components prevents thread galling and field failure.

Alloy Decision Tree: 6061 vs 7075 vs 2024 vs 5052 (6061 Aluminum vs 7075 Machining)

Evaluating trade-offs between 6061 aluminum vs 7075 machining helps balance unit cost and structural performance.

Engineering Alloy Selection Rules

1. Select 6061-T6 / T651 when the application requires balanced structural performance, welding capability, anodizing aesthetics, and low production costs.

2. Upgrade to 7075-T6 when yield strength demands exceed 300 MPa, component weight must be minimized at all costs, and welding is not required.

3. Select 2024-T3 for cyclic tension fatigue applications where high fracture toughness is mandatory.

4. Select 5052-H32 for simple sheet-metal brackets requiring severe press-brake bending radii.

Cost Structure Analysis & DFM Optimization (6061 Aluminum Machining Cost)

Understanding 6061 aluminum machining cost structures empowers engineers to reduce unit pricing during early design stages. For a full breakdown of quotes and pricing factors, refer to our aluminum CNC machining cost optimization guide.

Cost Breakdown of a Precision Machined 6061 Component

Hidden Surcharges in Quotations

· NRE / Setup Charges: Fixture fabrication and CAM programming costs amortized over small batches.

· Non-Standard Inspection Fees: Full CMM dimensional layout reports, non-destructive testing (NDT), or raw material mill test report (MTC) verification fees.

DFM Rules to Lower Machining Costs

1. Optimize Internal Corner Radii:

· Problem: Designing square internal corners (R=0) forces EDM wire cutting or expensive small end mills.

· Solution: Set internal vertical corner radii (R) to at least 1.15 to 1.25 times the radius of the standard tool used. To use a 6mm end mill (3mm radius), specify an internal radius of 3.5mm. This allows the cutter to loop through corners without decelerating, eliminating corner chatter.

2. Limit Deep Pocket Depth-to-Width Ratios:

Keep pocket depth ≤4×Width. Cavities deeper than 4x tool diameter require long-reach reduced-neck cutters running at reduced feeds, increasing machining cycle time exponentially.

3. Standardize Internal Radius Sizes:

Utilize consistent floor fillet and vertical wall radii across all internal pockets. This allows a single tool to complete roughing and finishing passes without requiring multiple tool changes.

Avoid Ultra-Thin Walls:

Maintain nominal wall thickness above 1.2 mm (0.048 in). Machining walls below 0.8 mm requires slow multi-pass toolpaths and specialized dampening fixtures, increasing unit costs by 40% to 80%.

Supplier Vetting & Quality Assurance (6061 Aluminum Supplier)

Partnering with an unvetted 6061 aluminum parts manufacturer presents material fraud and quality control risks.

Supply Chain Pitfalls in Sourcing 6061 Components

· Substandard Recycled Billet Substitution: Lower-tier machining shops may utilize cheap remelted scrap aluminum passed off as prime 6061-T6. Recycled billets contain high iron impurities, silicon sludging, and micro-void porosity, leading to structural failures under fatigue loading and unsightly dark specks post-anodizing.

· Falsified Mill Test Certificates (MTC): Material supplied without verified heat lot traceability can result in non-heat-treated 6061-O stock being delivered as T6 temper.

Xiamen Dazao Machinery Quality Verification Protocol

Serving as a trusted 6061 aluminum supplier and precision machining manufacturer since 2000, Dazao Machinery implements strict quality controls across our ISO9001 and IATF16949 certified quality control system:

1. Spectrometric Raw Material Verification: Every incoming shipment of 6061 aluminum bar and plate stock undergoes X-ray Fluorescence (XRF) Spectrometry analysis to verify alloying elements (Mg, Si, Cu, Cr) prior to entering raw inventory.

2. Mill Test Certificate (MTC) Traceability: All raw materials are sourced directly from tier-1 primary producers (e.g., Chalco, Alcoa) with full EN 10204 3.1 MTC documentation linked to heat lot numbers.

3. CMM Full Inspection Capabilities: Utilizing temperature-controlled Zeiss Coordinate Measuring Machines (CMM) achieving measurement uncertainty down to 0.8 µm + L/400, validating complex geometric dimensioning and tolerancing (GD&T) callouts.

4. Salt Spray and Coating Thickness QA: Anodized parts undergo coating thickness testing via eddy-current instruments and periodic salt spray corrosion testing per ASTM B117.

Procurement Engineering Checklist

Precision cnc machining 6061 aluminum requires managing material state selection, internal residual stress profiles, machining parameters, and post-processing dimensional stack-ups.

Pre-Procurement Engineering Checklist

Before submitting 3D CAD models and 2D engineering drawings for quotation, review the following parameters:

 Material Specification: Is the drawing explicitly marked as 6061-T651 for large pocketing/milling plates to prevent warpage?

 Pre-Plating Tolerances: Have critical bore diameters and threaded features been compensated for post-anodize growth (Type II vs Type III Hardcoat)?

 Deep Cavities & Blind Holes: Are blind tapped holes equipped with drill point depth clearance to prevent trapped acid efflorescence during anodizing?

 Corner Radii DFM: Are internal corner radii designed ≥1.15×Cutter Radius to avoid tool deceleration and chatter?

 Wall Thickness Limits: Are wall geometries kept above 1.0 mm where possible to avoid thin-wall vibration defects?

 Thread Selection: Are high-load or frequent-mating threads specified with STI Helicoil inserts rather than direct tapping?
