CNC Machining Aluminum Enclosures Guide Rigidity Aesthetics And Economics

The Production Realities of High-End Enclosure Manufacturing

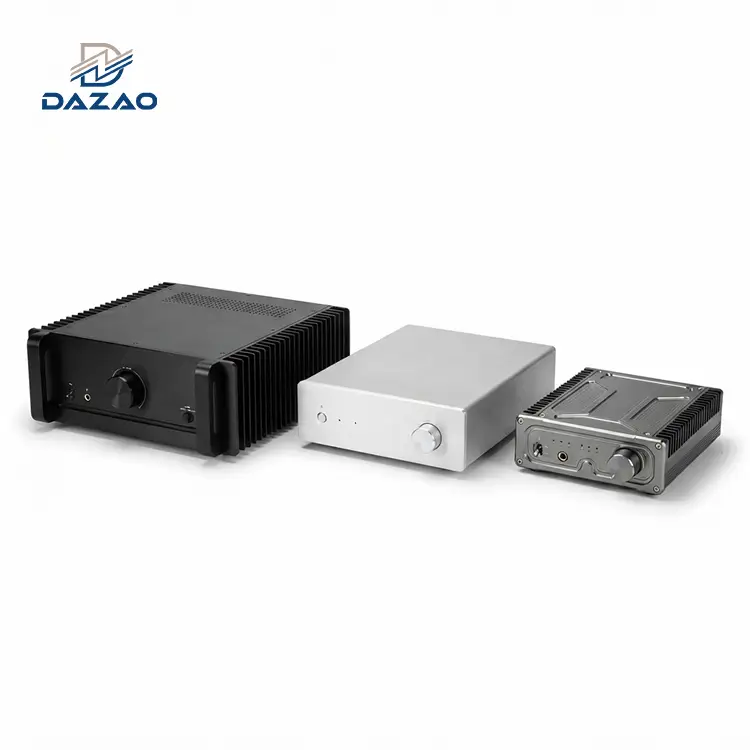

For hardware engineers, product designers, and procurement managers in sectors like custom mechanical keyboards, high-fidelity CNC aluminum amplifier chassis, VR headsets, and localized medical equipment, aluminum is a standard structural material. It offers an effective strength-to-weight ratio, high thermal conductivity, and a premium tactile response that polymers cannot match.

However, a recurring friction point exists in the hardware ecosystem: designs that appear resolved on a CAD screen often encounter mechanical issues during production. When thin-walled geometries meet the rotating cutting forces of a spindle, or when an aggressive chemical bath alters an alloy surface, the physical results can deviate from the design intent. Warping, visible tool marks, vibrational chatter, and batch-to-batch cosmetic variations are common issues when sourcing from small-scale machine shops.

Achieving consistent results requires more than standard machining; it demands structured manufacturing intelligence. At our facility, featuring a 100-machine cluster of advanced CNC lathes, multi-axis machining centers, and simultaneous 5-axis machines, we bridge the gap between complex engineering intent and reliable volume production. This technical guide breaks down the physics, material science, and economics of premium aluminum enclosure manufacturing.

Aluminum Alloy Selection and Mechanical Performance Matrix for Enclosures

Selecting the correct alloy is not just a budget decision; it dictates tool wear, cutting speeds, structural deflection, and anodizing behavior. For premium enclosures, three specific grades dominate the landscape.

· 6061-T6 (Structural Workhorse): Selected for high yield strength and reliable structural performance.

· 6063-T6 (Appearance-Driven Choice): Selected for dense, uniform grain structures that yield smooth cosmetic finishes.

· 7075-T6 (High-Strength Titan): Selected for thin-walled rugged enclosures requiring maximum yield strength.

6061 T6 Aluminum Properties for Structural Enclosures

6061-T6 (precipitation-hardened with magnesium and silicon) is the baseline for structural enclosures. With a yield strength of approximately 276 MPa and an ultimate tensile strength of 310 MPa, it provides mechanical properties of aluminum alloys that ensure high structural rigidity. Its machinability rating sits at a comfortable 50% compared to 2011 aluminum, meaning cutting tools experience highly predictable wear rates. It is an economical choice when the enclosure requires deep internal pocketing and structural robustness without extreme cosmetic specialization.

6063 T6 Aluminum for High Quality Aesthetic Surface Finishes

When a product's primary selling point is its surface finish-such as consumer electronics or premium custom keyboard cases-6063-T6 is a highly suitable option. While its yield strength is lower (~170 MPa), its chemical composition features tighter control over magnesium and silicon, resulting in a dense and uniform grain structure post-extrusion. When subjected to fine bead blasting and anodizing, 6063-T6 yields a smooth, matte texture with minimal microscopic grain delineation, which is a major advantage for cosmetic components.

7075 T6 Aluminum for High Strength and Rugged Enclosures

Alloyed primarily with zinc, 7075-T6 is a high-strength material boasting a yield strength of ~572 MPa-surpassing many structural steels. However, this strength comes at a premium. Raw material costs are significantly higher, and its hardness drops its machinability, leading to accelerated tool wear and increased cycle times. 7075-T6 is reserved for ultra-thin enclosures (e.g., aerospace drone chassis or ruggedized military electronics) that must withstand intense drop testing while maintaining minimal wall thickness.

Engineering Reference Matrix for Enclosure Alloys

Multi Axis CNC Machining Configurations for Complex Enclosure Geometries

Enclosure designs often transition from simple prismatic boxes to sweeping, organic, ergonomic curves. Managing these geometries requires selecting the appropriate kinematic configuration on the shop floor. With 100 active spindles, our facility optimizes throughput by pairing geometries with the ideal machine class.

· 3-Axis Centers: Best for standard internal pocketing and deep cavities (highly cost-effective baseline).

· 4-Axis Centers: Best for multi-angle side ports and I/O openings in a single mechanical setup.

· 5-Axis Centers: Best for complex organic surfaces and single-setup monoblocks to minimize tolerance stack-up.

Optimizing Three Axis and Four Axis Milling Workflows

For standard enclosures with parallel walls and a flat base, such as a high-precision CNC aluminum electronic enclosure, 3-axis multi axis milling capabilities offer the highest cost efficiency. By utilizing multi-station pneumatic fixtures, we can run multiple enclosures concurrently, maximizing throughput.

When the design introduces side-facing features-such as I/O ports, USB-C cutouts, or audio jacks-we transition the workflow to 4-axis machines equipped with rotary indexers (A-axis). This allows the workpiece to rotate automatically, cutting all side features in a single setup, which helps eliminate the stacking errors associated with manual part flips.

Simultaneous Five Axis Milling to Reduce Tolerances and Tool Marks

For complex designs featuring freeform surfaces, integrated wrist rests, or organic sweeps, simultaneous 5-axis milling (X, Y, Z, B, C) is used. 5-axis machining offers two critical technical advantages for premium enclosures:

1. Monolithic Machining: Traditional multi-op machining requires flipping the part across multiple fixtures. Every manual flip introduces a potential relocation error of ±0.02mm to ±0.05mm. A simultaneous 5-axis machine cuts the internal cavity, external organic profile, and all angled screw bosses in a single continuous setup, maintaining geometric tolerances down to ±5μm.

2. Optimized Cutter Contact and Speed: When a 3-axis machine cuts a curved surface, it uses the ball-nose endmill's tip, where the effective cutting velocity (Vc) drops to zero, causing micro-tearing and tool marks. A simultaneous 5-axis center dynamically tilts the spindle (B/C axes), ensuring the tool contacts the metal at its optimal cutting radius. This maintains material removal rates while producing a surface finish (Ra≤0.4μm) that minimizes post-processing requirements.

Design for Manufacturability Rules to Reduce Costs and Prevent Deflection

In CNC machining, production cost is directly proportional to spindle hours and tool wear rates. By implementing strict Design for Manufacturability (DFM) principles, hardware engineers can reduce machining cycle times by up to 35% while eliminating common structural defects.

· Wall Thickness Limit (< 0.5mm): High rotational cutting forces can cause thin-wall deformation and "potato-chip" warping.

· Residual Stress Mitigation: Uneven internal residual stress is released during material removal.

· Engineered Solution: Implement a rough/finish pass split paired with stress-relief thermal cycling.

Controlling Thin Wall Warping and Vibrational Chatter

Thin walls are desirable for lightweighting consumer electronics, but they introduce manufacturing risks. When wall thickness drops below 0.8mm for aluminum, the material loses structural stiffness against the rotational cutting forces of the endmill. This leads to two critical failure modes:

· Acoustic/Vibrational Chatter: The wall flexes and vibrates against the cutting edge, leaving microscopic waves (chatter marks) that affect surface aesthetics.

· Elastic/Plastic Deformation: As large volumes of metal are pocketed out, the internal residual stress of the extruded or rolled aluminum profile is released unevenly. The part undergoes warp, causing flatness tolerances to drift.

Our engineering solutions address these issues during production:

1. Rough Machining: We remove 90% of the bulk cavity material across a bank of high-torque 3-axis centers.

2. Thermal Stabilization: The parts are un-clamped and subjected to Stress Relief Thermal Cycling or a 24-hour natural aging window to equalize internal stresses.

3. Finish Machining: The parts are transferred to high-speed 5-axis centers using custom-engineered Vacuum Chuck Fixtures or low-melting-point phase-change matrix material to rigidly support the thin walls during the final 0.05mm finish passes.

Optimizing Internal Corner Radii to Avoid Tool Deflection

A frequent oversight in CAD models is the inclusion of sharp, 90-degree internal vertical corners within pockets. Because CNC endmills are cylindrical and rotate around a center axis, they cannot physically cut a sharp inner vertical corner.

· Incorrect Design (Sharp Corners): Sharp 90-degree internal vertical corners are physically impossible to mill because cutting tools are cylindrical.

· Optimal DFM Design (Relieved Corners): Internal corner radii designed at R≥1.15×Tool Radius prevent tool binding, excessive tool deflection, and chatter.

If an engineer specifies a tight internal radius (e.g., R=1.0mm), the machinist must use a fragile 2mm diameter endmill. This reduces the Material Removal Rate (MRR), accelerates tool deflection, and increases cycle costs. Furthermore, when a tool enters a corner equal to its own radius, 90 degrees of its cutting face engages simultaneously, causing tool binding and chatter.

The Internal Radii Rule: Design internal corner radii to be at least 1.15 times the radius of the cutting tool intended for the roughing pass. For example, if a standard, rigid 6mm endmill (R=3.0mm) is used for pocketing, the internal corner radius should be designed at R≥3.5mm. This allows the tool path to glide smoothly through the corner without stalling, ensuring a uniform surface finish and reducing spindle cycle time.

Thread Depth Specifications and Tap Clearance for Blind Tapped Holes

For enclosure assembly, threaded holes are necessary. Specifying a thread depth greater than 2.5×D(Diameter) yields minimal structural benefit while increasing the probability of tap breakage inside the component.

Blind Hole Cross-Section Parameters:

· Effective Thread Depth: Maximum of 2.5×D (over 75% of axial load is carried by the first 3 to 4 threads).

· Tap Chamfer Allowance: 1.5×Pitch to clear the lead chamfer of the tool.

· Clearance / Drill Point Pocket: 0.5×D extending beyond functional thread length to catch loose chips.

When designing a blind tapped hole, a clearance pocket must be accounted for at the bottom of the hole. Standard cutting taps feature a tapered lead chamfer of 1.5 to 3 pitches that cannot cut full-form threads.

Rigid Tapping Specification: Ensure the drilled hole depth extends at least 0.5×D beyond the effective thread length, plus an additional 1.5 to 2mm for chip accumulation. This prevents the tap from bottoming out against compressed aluminum chips, protecting the workpieces from scrap scenarios and ensuring reliable assembly during volume production.

Advanced Surface Finishing Techniques for Consumer Grade Cosmetics

For a premium enclosure, the machining operations are only half the battle. The final commercial value is determined in the surface finishing suite. Transforming raw milled aluminum into a scratch-resistant, tactilely uniform product requires control over chemical and physical parameters.

1. Raw Milled CNC Component: The starting machined workpiece.

2. Bead Blasting (Controlled Grit & Pressure): Eliminates tool marks and establishes target Ra.

3. Chemical Preparation: Acid etching and desmutting of the surface.

4. Anodizing (Type II): Electrochemical synthesis of the protective oxide layer.

5. Color Infusion: Organic or inorganic dye absorption to prevent batch-to-batch variation.

6. Final Passivation: Hydrothermal hydration sealing to lock in color.

Ceramic Bead Blasting and Surface Roughness Micro Texture Control

Bead blasting is a mechanical process where spherical or angular media is driven via compressed air against the enclosure surface to mask tool marks and create a uniform, diffuse matte finish. The tactile feel-whether it feels rough or smooth-is determined by the Surface Roughness Average (Ra).

To achieve a fine satin touch, three variables must be controlled:

· Media Composition: Avoid sharp aluminum oxide in favor of spherical ceramic beads (zirconia micro-spheres, 150# to 180# grit). The spherical shapes lightly dimple the surface rather than tearing it.

· Blasting Pressure and Distance: Pressure is governed between 1.8 to 2.2 bar, with automated multi-axis blasting nozzles maintaining a perpendicular distance of 200mm from the aluminum shell to prevent localized work-hardening.

· Target Ra Window: This precise control yields a surface roughness of Ra0.8μm to 1.2μm. Values below this range may fail to mask underlying milling lines; values above this range can feel overly abrasive to the user.

Anodizing Process Control for Batch to Batch Color Consistency

Professional anodizing services using Type II Anodizing convert the aluminum surface into a wear-resistant aluminum oxide (Al2O3) layer, typically 15 to 25 microns thick. This layer contains micro-pores that absorb colored dyes. A common challenge in procurement is batch-to-batch color variation, where components from different batches do not match at final assembly.

Color consistency depends on controlling three primary factors:

· Alloy Uniformity: Material traceability is critical. Mixing 6061 from different mills can change the trace silicon or iron content, which shifts the oxide layer tint. We source single-origin billet batches for cosmetic production runs.

· Thermal Control of the Acid Bath: The electrolyte bath (typically 18–20% sulfuric acid) must be cooled and held within a window of ±0.5°C. If the bath fluctuates by even 1.5°C, the pore dissolution rate changes, modifying the pore depth and altering how much dye molecule is trapped inside.

· Current Density: We apply constant-current rectification rather than constant-voltage. Maintaining exactly 1.5 A/dm² ensures the oxide layer grows at a steady linear rate, providing uniform color absorption across thousands of components.

Micro Arc Oxidation and E Coating Alternatives for Pure White Finishes

Product designers frequently request a pure white anodized finish. However, true white anodizing is chemically restricted. Anodizing dyes are translucent organic or inorganic molecules that sit within a transparent oxide structure. Because white requires a dense concentration of light-scattering pigments (such as Titanium Dioxide, TiO2) whose molecular clusters are too large to fit inside the 10 to 20 nanometer pores of an anodized layer, traditional anodizing can only yield a metallic silver or light gray.

To achieve a white aesthetic without sacrificing the precision of the underlying CNC machining, we offer two alternative processes:

· Micro-Arc Oxidation (MAO / PEO): An electrochemical plasma discharge process that converts the aluminum skin into a thick, crystalline ceramic layer. It outputs a matte, stone-like ceramic white that boasts high scratch resistance (>1000 HV).

· Electrophoretic Deposition (E-Coating): An organic lacquer coating deposited via an electrical field. It creates an ultra-thin (10-15 micron), uniform liquid-white finish that retains crisp edge definitions and prevents screw holes from clogging.

Metrology Inspections and Statistical Process Control in Volume Manufacturing

Achieving a high-quality cosmetic surface is only valuable if the enclosure fits reliably at final assembly. In volume manufacturing, stability is maintained through statistical control. With our 100-machine floor configuration, our quality assurance framework relies on coordinate metrology and real-time statistical tracking.

Production Sequence: [CNC Spindle Machining] -> [Automated In-Line Probing] -> [CMM Geometric Verification] -> [Real-Time SPC Tracking (Cpk >= 1.33)]

Coordinate Measuring Machine Protocols for GD and T Verification

For complex enclosures-especially those with multi-axis organic sweeps, internal interlocking battery compartments, or critical alignment pins-traditional manual metrology tools (like calipers or micrometers) are inadequate. We implement multi-sensor Coordinate Measuring Machines (CMM) housed in climate-controlled metrology labs maintained at a constant 20°C (±0.5°C) to eliminate thermal expansion skewing.

Our CMM protocols utilize ruby-tipped scanning probes to verify complex Geometric Dimensioning and Tolerancing (GD&T) callouts:

· Surface Profile: Verifies that 3D organic contours match the native CAD model across a continuous point cloud, maintaining a tolerance band down to ±0.02mm.

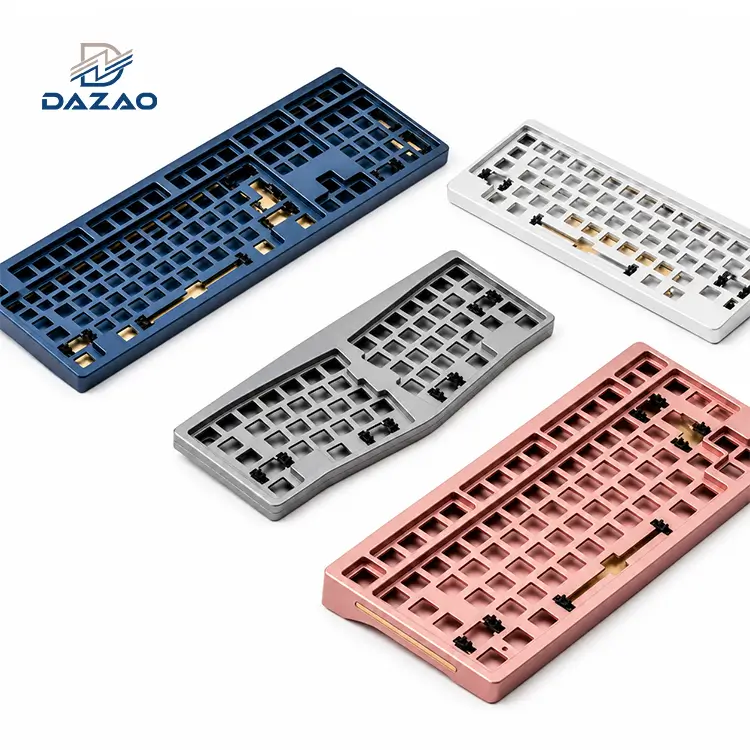

· Flatness: Critical for enclosure mating faces (e.g., top and bottom housings of a mechanical keyboard). The CMM samples a high-density grid to ensure total flatness deflection does not exceed 0.03mm over a 300mm span, preventing gaps or rocking post-assembly.

· True Position: Governs the exact center coordinates of threaded screw bosses and alignment pins relative to primary datums. This ensures that multi-component assemblies align accurately without requiring manual force.

Statistical Process Control with Cpk Targets for Tool Wear Compensation

Machine tools are dynamic systems subject to thermal drift, tool wear, and structural vibration. To manage process capability, we utilize Statistical Process Control (SPC) software tied directly to our machining centers.

SPC Control Limits:

· Upper Control Limit (UCL): High wear threshold indicating tool adjustment is required.

· Target Specification: Optimal center design dimension.

· Lower Control Limit (LCL): Lower wear threshold indicating pre-emptive tool calibration.

During a production run, parts are sampled at calculated intervals. Critical dimensions (such as bearing bores with a ±5μm tolerance window) are measured and plotted on control charts.

· Cpk Index (Process Capability Index): We manage volume production to a target Cpk≥1.33, which indicates that our machining process operates reliably within the design tolerance limits.

· Predictive Tool Compensation: If the SPC trendline shows a dimension drifting toward the Upper Control Limit due to micro-wear on the diamond or carbide endmill, the system prompts the operator to perform an automated tool offset adjustment or swap out the tool before any out-of-specification parts are produced.

Streamlining the RFQ Process for Accelerated CNC Prototyping

In manufacturing, the timeline from initial request for quote (RFQ) to the first prototype can be delayed by incomplete engineering documentation. Submitting an optimized RFQ packet allows our engineering team to generate a precise, binding DFM assessment and quotation within 24 hours.

Optimized Three Dimensional CAD Formats for CAM Processing

To facilitate immediate parsing by computer-aided manufacturing (CAM) software, all 3D geometry must be exported in a neutral, non-proprietary format.

· Preferred Formats: .STEP (.STP) or .IGES (.IGS). These formats retain exact parametric mathematical surfaces without tessellating the model into triangles.

· Formats to Avoid for CNC: .STL, .OBJ, or .3MF. While ideal for 3D printing, these polygon-mesh formats lack the true arc and surface data required to generate precise CNC toolpaths (G-code) for milling centers.

Two Dimensional Drawing Requirements for Tolerance Specifications

While the 3D model provides the physical shape, the 2D engineering drawing dictates the quality standard. Any requirement not explicitly documented on the 2D drawing defaults to standard commercial machining tolerances (typically ISO 2768-m). A comprehensive 2D enclosure drawing should include:

· Primary Datums clearly identified.

· Critical tight tolerances explicitly noted (e.g., ±0.01mm).

· Thread specifications (e.g., M3x0.5, Thread Depth 6mm).

· Material class and temper stated (e.g., Aluminum 6063-T6).

· Surface finish requirements detailed (e.g., Sandblast #150, Anodize Matte Black Pantone 426C).

Bill of Materials and Sourcing Volume Planning

To complete the RFQ packet, explicitly state your production expectations. Specify the Initial Prototype Quantity alongside your Target Annual Production Volumes. This allows our planning engineers to design the tooling and fixture strategy correctly from day one-deciding whether to build a rapid single-cavity prototype jig or optimize a high-volume multi-station pneumatic fixture suited for our 100-machine floor configuration.
