CNC Turning Aluminum Guide: Tools, Tolerances & Cost

For mechanical engineers, project managers, and procurement leaders sourcing cnc aluminum turning parts, achieving consistent dimensional stability, tight geometric tolerances, and sub-micron surface finishes requires direct control over three physical failure modes: Built-Up Edge (BUE) tool degradation, post-machining residual stress strain, and chemical pre-treatment dimensional erosion prior to anodizing.

Key Engineering Performance Indicators

Verdict: Precision cnc turning aluminum depends on selecting T651 stress-relieved temper stock, utilizing high-rake polished PCD tooling to eliminate chip wrapping, and pre-compensating CAD models for post-processing chemical dimensional shifts.

Mechanical & Metallurgical Realities of CNC Turning Aluminum

Turning aluminum alloys on a CNC lathe appears straightforward due to the material's low shear yield strength and high thermal diffusivity. However, cnc turning aluminum introduces distinct physical and mechanical phenomena that frequently compromise tight-tolerance components during serial production. For a broader perspective on milling and turning mechanics, consult our comprehensive aluminum CNC machining guide.

Physical Mechanics: Aluminum Alloys vs. Carbon Steels

Structural aluminum alloys exhibit an Elastic Modulus (E) of approximately 69 GPa, compared to 205 GPa for medium-carbon steel. This lower stiffness means aluminum deforms three times more under identical radial cutting forces (F_r) during aluminum lathe machining.

δ=(F_r⋅L³)/(3⋅E⋅I)

Where:

· δ= Radial deflection of the workpiece (mm)

· F_r= Radial cutting force (N)

· L= Overhang length of the shaft (mm)

· E= Elastic Modulus (MPa)

· I = Area Moment of Inertia (mm⁴)

Additionally, aluminum's Coefficient of Thermal Expansion (CTE) is approximately

23×10⁻⁶/K at 20^∘C-nearly double that of carbon steel (12×10−6/K). During continuous precision aluminum turning, a 35^∘C temperature spike in the workpiece causes a 100 mm long aluminum shaft to expand by 0.0805 mm.

ΔL=L₀⋅α⋅ΔT=100 mm×(23×10⁻⁶/K)×35 K=0.0805 mm

If final finish passes are executed and measured while the part remains thermally elevated, the component will contract out of blue-print tolerance once cooled to standard inspection laboratory ambient temperature (20^∘C).

Primary Shop-Floor Failure Modes in Serial Turning

· Built-Up Edge (BUE): Under heat and pressure, ductile aluminum micro-welds onto the cutting edge, dulling the tool and tearing the workpiece surface finish.

· Continuous Ribbon Chip Wrapping ("Bird-Nesting"): Long, ductile chips wrap around the chuck and tool turret, scratching turned surfaces and causing tool breakage.

· Post-Machining Stress Distortion: Internal residual stresses from extrusion or heat treatment release as material is removed, causing thin-wall rings to become oval and slender shafts to bow.

· Coating Fit Failures: Surface treatments like anodizing alter external and internal dimensions, locking threads and binding tight-tolerance bores.

Case Study: Aerospace Connector Thread Binding Failure Analysis

In 2018, Xiamen Dazao Machinery manufactured a production run of 5,000 aerospace connector housings featuring internal M20×1.5 threads turned from Al6061-T6 bar stock.

· The Operational Failure: All thread pitch diameters passed thread plug gauge inspections immediately after turning. However, after clear anodizing (Type II, 10 μm specified film thickness), 38% of the batch failed thread go-gauge verification due to thread flank binding.

· Root Cause Teardown: The engineering team calculated the outward anodizing film growth (5 μm per flank) but neglected the pre-anodizing caustic soda (NaOH) etch stage. This etch removed 8 μm of base aluminum non-uniformly across the pitch line. The resulting geometrical distortion altered the thread flank angle, reducing effective thread clearance.

· Corrective Action: Dazao engineered a pre-machining dimensional offset protocol for all aluminum threaded parts. By turning internal thread pitch diameters 0.012 mm oversize prior to anodizing, post-coating thread go-gauge pass rates reached 100%.

Aluminum Alloy Grades & Temper Metallurgy in Precision Turning

Selecting the correct aluminum alloy grade and heat-treatment temper dictates tool wear rates, achievable surface roughness, and dimensional stability during cnc aluminum turning.

Engineering Comparison: 6061 vs. 7075 vs. 2024 vs. 5052

Microstructure & Temper Impact: Why T651 Stress Relief Prevents Warping

6061 aluminum turning remains the baseline for general manufacturing due to its balance of strength, weldability, and low raw material cost. However, its lower matrix hardness (95 HB) makes it prone to material tearing and micro-welding when cutting speeds drop below 250 m/min.

Conversely, 7075 aluminum turning benefits from zinc as its primary alloying element (5.1–6.1% Zn). The matrix hardness (150 HB) shortens tool-chip contact length on the rake face, producing crisp C-shaped chips and permitting surface finishes below Ra 0.4 μm without specialized wiper inserts.

Standard T6 temper stock is solution heat-treated and artificially aged. This leaves high internal thermal stress gradients between the outer boundary and core. As a cnc turning service aluminum provider turns a long shaft, asymmetrical material removal unbalances these internal stress fields, causing the shaft to bow.

T651 temper stock undergoes a controlled 1.5% to 3.0% cold stretch after solution heat treatment. This permanent strain redistributes internal residual stress fields (S_ij):

For small aluminum turned parts with symmetric material removal, standard T6 material is sufficient. However, for asymmetric features, deep grooves, or long shafts, specifying T651 stock is required to prevent dimensional distortion.

Tool Geometries, Cutting Parameters, and Surface Quality Control

Optimizing aluminum precision machining requires matching tool geometry and cutting parameters to the physical properties of the aluminum alloy.

Tooling Materials: Uncoated Carbide vs. Polished PCD Diamond Inserts

Standard PVD/CVD coated inserts designed for steel machining (containing TiAlN or Al₂O₃ coatings) exhibit high chemical affinity for aluminum, accelerating BUE formation. High-performance aluminum lathe machining requires distinct tool geometries:

· Uncoated Micrograin Carbide (ISO K10–K20): Features a mirror-polished rake face (R_a<0.05 μm) to reduce friction coefficients (μ<0.2).

· Polycrystalline Diamond (PCD): PCD tools feature extreme hardness (>8000 HV) and zero chemical affinity for non-ferrous metals. PCD inserts last up to 50 times longer than carbide while maintaining R_a 0.2 μm tolerances across long production runs.

· Geometric Angles: High positive rake angles (+15^∘ to +25^∘) shear aluminum cleanly, while generous primary relief angles (7^∘ to 11^∘) prevent flank rubbing.

Speed, Feed, and Depth of Cut Optimization Matrix

Surface Roughness Mechanics and R_a Calculation

Theoretical surface roughness (R_a) in turning operations is calculated using feed rate and insert nose radius:

Ra ≈ f² /(32 ⋅ r_ϵ)×1000

Where:

· R_a = Theoretical surface roughness (μm)

· f = Feed rate per spindle revolution (mm/rev)

· r_ϵ = Insert corner nose radius (mm)

Calculation Example: A finish pass using an insert with a 0.4 mm nose radius at a feed rate of 0.12 mm/rev yields a theoretical surface roughness of:

Ra=0.12²/(32⋅0.4)×1000=(0.0144/12.8)×1000=1.125 μm

To achieve a mirror finish (R_a 0.4 μm), the feed rate must be reduced to 0.071 mm/rev, or a PCD wiper insert featuring a flattened secondary cutting edge must be applied.

Three Undocumented Aluminum Turning Hazards & Engineering Solutions

Standard turning guides outline basic speeds and feeds but omit practical shop-floor failure modes. Dazao addresses these three undocumented engineering hazards through technical protocols.

Hazard 1: Pre-Anodizing Chemical Etching vs. Oxide Layer Growth

Anodizing does not simply sit on top of a turned part; it consumes parent aluminum to form aluminum oxide (Al₂O₃).

During standard Type II anodizing (10 μm total film thickness):

· Inward Penetration: 50% (5 μm) of the film replaces the base aluminum.

· Outward Growth: 50% (5 μm) builds beyond the original physical boundary.

· Pre-Etch Metal Loss: Prior to anodizing, parts undergo an alkaline etch (NaOH) to remove tramp oils and native oxides. This etch uniformally strips 3 to 8 μm of parent metal per surface.

Dimensional Change Equation for External Shaft Diameters (D_final):

ΔD=2⋅(Film Growth Outward−Etch Metal Loss)

If alkaline etching removes 7 μm per side and anodizing adds 5 μm of outward growth per side, the net external shaft diameter decreases by 4 μm(0.004 mm). For tight-tolerance cnc turning aluminum parts, failing to calculate pre-etch loss results in out-of-spec dimensions.

Dazao Engineering Protocol: Dazao employs an automated dimensional pre-compensation matrix prior to machining custom aluminum turned parts:

Hazard 2: "Bird-Nesting" Continuous Chip Wrapping Scratches

When executing large diameter aluminum turning on ductile grades like 6061-T6 or 6063, cut material forms a continuous, high-speed ribbon chip. This chip wraps around the lathe spindle or tool post, causing severe operational risks:

· Spinning ribbon chips scratch turned surfaces (R_a 0.8 μm degrades to R_a>3.2 μm).

· Chips pack into boring bars, causing tool chatter and breakage.

Dazao Engineering Protocol: Dazao mitigates chip wrapping using a two-part intervention:

1. High-Pressure Coolant (HPC): Directing a 70 Bar (1015 PSI) coolant stream through the tool holder straight into the shear zone applies thermal shock to the chip root, hardening and fracturing the aluminum ribbon.

2. Custom Wave Chipbreaker Inserts: Ground-in wave chipbreakers bend the chip at a sharp angle immediately as it exits the rake face, forcing it to fracture into discrete C-shaped segments.

Hazard 3: Thin-Wall Bushing Clamping Distortion & Springback

When turning an aluminum bushing machining component with a wall thickness under 1.5 mm, traditional three-jaw hydraulic chucks concentrate clamping forces at three points, deforming the ring into a tri-lobed shape during machining.

When released from the chuck, the part springs back, resulting in a non-circular bore.

Dazao Engineering Protocol:

· 360° Pie-Shaped Soft Jaws: Dazao uses fully wrapped, custom-bored pie jaws that enclose the entire circumference of the workpiece, distributing clamping force evenly and reducing radial pressure from 3.0 MPa down to 0.4 MPa.

· Two-Stage Machining Cycle:Rather than completing the OD turning and ID boring in a single continuous operation, Dazao executes a two-stage stress-relief machining sequence. In the first phase, aggressive roughing cuts remove 80% to 90% of the material stock (leaving a 0.3 mm finishing margin), releasing internal residual stress and allowing thermal heat to dissipate. The hydraulic chuck is then completely unclamped, permitting the workpiece to spring back into its unstrained natural equilibrium state. Finally, the part is re-clamped under ultra-low pressure (0.3 MPa) in the pie jaws for a high-speed finish pass with sharp PCD tooling, reliably achieving bore roundness within 0.003–0.005 mm.

CNC Turning Aluminum Tolerances, Wall Thickness & DFM Design Rules

Understanding the limits of cnc turning aluminum tolerances enables engineers to design cost-effective components without over-specifying feature callouts.

ISO 2768 Tolerance Limits vs. Precision Manufacturing Capabilities

DFM Guidelines: Wall Thickness, Thread Reliefs, and Shaft Aspect Ratios

Wall Thickness Guidelines

· Minimum unsupported wall thickness: 0.75 mm.

· Recommended wall thickness: ≥1.50 mm.

· For aluminum bushing machining, maintain a length-to-wall-thickness ratio (L/T) under 10:1 to prevent vibration chatter during internal boring.

Thread Relief and Chamfers

· Always specify a thread relief groove at the shoulder of external threads. The relief width should equal at least 1.5×thread pitch, with a depth extending 0.2 mm below the minor diameter.

· Specify 45∘×0.5 mm lead-in chamfers on all thread starts to prevent burr formation during high-speed turning.

Aspect Ratio Limits for Shaft Machining

· For aluminum shaft machining, unsupported length-to-diameter (L/D) ratios must not exceed 4:1. For complex projects requiring high concentricity, review our custom aluminum shaft machining capabilities.

· For ratios between 4:1 and 10:1, specify a live tailstock with a 60^∘center hole.

· For L/D>10:1, a steady rest or Swiss-type CNC turning center is required to prevent shaft deflection from tool pressure.

Surface Finishing Options & Quality Assurance Protocol

Finishing operations complete the production process for turned components, ensuring parts meet exact functional and aesthetic specifications.

Anodizing Types, Chromate Conversion, and Bead Blasting Effects

When choosing aluminum surface finishing options, engineers must account for how layer growth impacts mechanical tolerances:

Inspection Workflows: CMM, Optical Profile, and Material Verification

To maintain strict adherence to ISO9001:2015 and IATF16949:2016 standards, Xiamen Dazao Machinery executes a comprehensive verification protocol:

1. Raw Material Verification: Handheld XRF Alloy Analyzers verify material composition prior to loading bar stock, eliminating alloy mix-ups.

2. In-Process Thermal Stabilization: Parts pulled from lathes undergo a 2-hour soak in a climate-controlled inspection lab (20^∘C±0.5^∘C) before CMM measurement.

3. Thread Profile Inspection: Aluminum threaded parts are measured using optical shadowgraphs and calibrated pitch micrometers rather than reliance on standard hand gauges alone.

4. Protective Packaging: Finished small aluminum turned parts are packed in individual anti-static VCI bubble pouches or custom-milled EPE foam trays, preventing metal-to-metal contact during international freight transport.

CNC Turning Cost Breakdown & Procurement Optimization

Understanding how shop floor decisions drive component costs empowers procurement teams to optimize budget allocation without sacrificing performance.

Key Cost Drivers in Precision Aluminum Lathe Machining

Total Cost=C_material+T_cycle×R_machine+C_tooling+C_finishing

Where:

· C_material = Raw stock weight × alloy cost per kg - scrap buyback credit.

· T_cycle = Total floor-to-floor time (roughing, finishing, thread cutting, parting off).

· R_machine = Hourly rate of the CNC lathe or multi-axis turn-mill center.

· C_finishing = Anodizing, masking, or plating costs per unit.

Design & Material Sourcing Strategies to Reduce Unit Cost

Strategy 1: Tubing vs. Solid Bar Stock for Bushings

When manufacturing an aluminum bushing machining component with a 70 mm OD and a 50 mm ID, starting from solid bar stock requires drilling out 51% of the initial material volume.

Transitioning to seamless extruded aluminum tubing reduces total cycle time by 35% and material consumption by 40%.

Strategy 2: Consolidate Multi-Axis Operations

Executing turning operations on a standard 2-axis lathe, followed by transferring components to a 3-axis mill for cross-hole drilling, introduces second-op setup fees and radial alignment stackup errors.

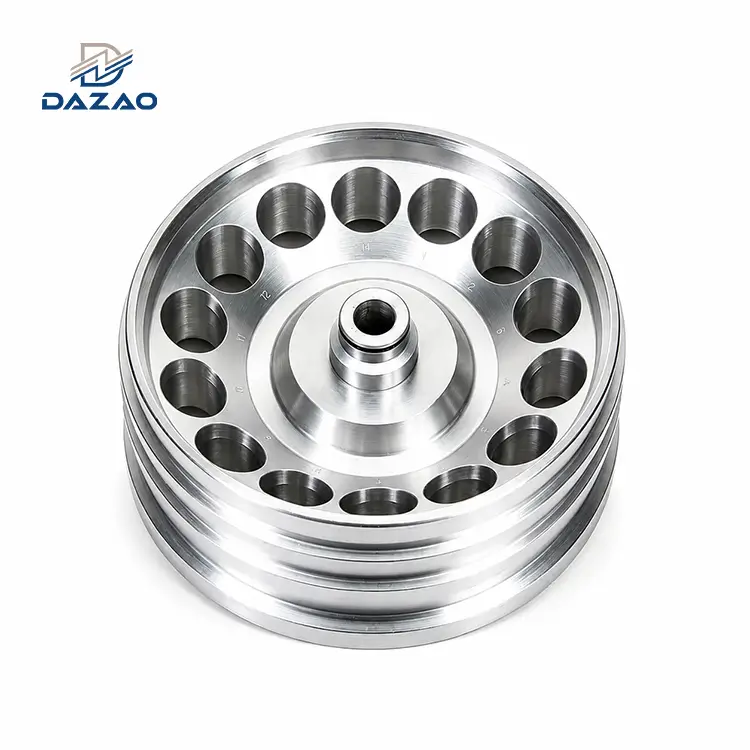

Dazao utilizes multi-axis turn-mill machining services equipped with live tooling and Y-axis capabilities to complete turning, milling, cross-drilling, and tapping in a single automated setup. This approach reduces setup fees and guarantees true position accuracy within 0.010 mm.

Partnering with Dazao Machinery for Custom Aluminum Turned Parts

Precision cnc turning aluminum requires clear engineering oversight across every phase of production-from raw alloy selection and T651 stress relief through to tool geometry optimization and pre-anodizing tolerance compensation. Partnering with an experienced aluminum turning parts manufacturer like Xiamen Dazao Machinery eliminates quality risks and optimizes unit production costs.

Next Steps for Procurement & Engineering Teams

1. Apply DFM Principles: Audit component drawings for adequate internal radii (R≥0.8 mm), wall thickness, and thread clearance grooves.

2. Define Surface Requirements: Specify acceptable R_a limits and post-processing coating standards (Type II vs. Type III) on your engineering drawings.

3. Engage Dazao for Early DFM Review: Submit your CAD files to Xiamen Dazao Machinery's engineering team for instant design-for-manufacturability analysis and transparent quotation.
