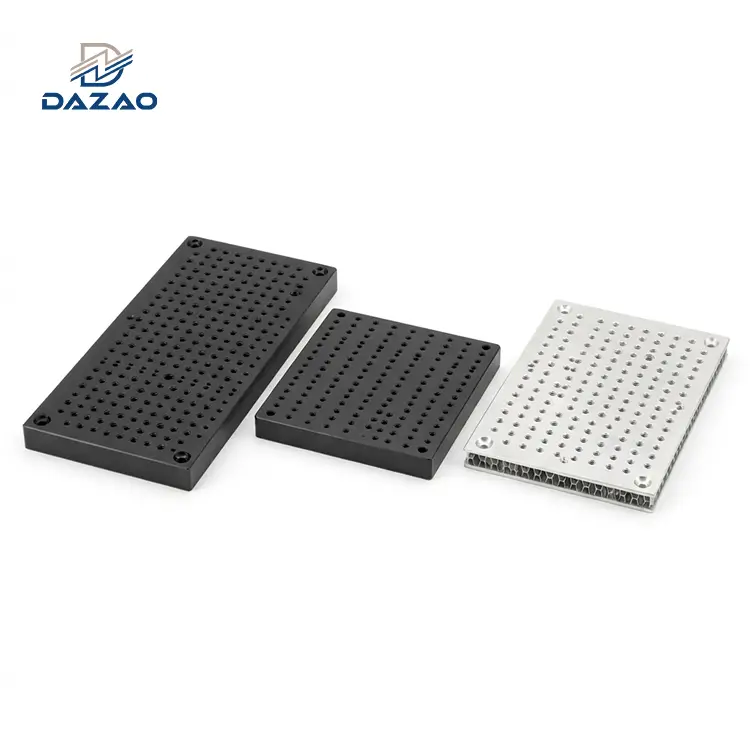

Precision Aluminum Optical Bench Plates 6061 T6 Grade

Product Engineering Overview & Precision Milling Capabilities

Rigid mounting foundations built via multi-axis CNC milling for demanding photonics and laser systems.

Precision CNC machined aluminum optical bench plates are engineered for high-rigidity optomechanical setups, laser alignment, and laboratory breadboard platforms. Utilizing high-purity 6061-T6 and 7075-T6 aluminum, these plates feature precision-tapped hole matrices in standard 25mm metric (M6) or 1-inch imperial (1/4"-20) configurations. Machine capabilities cover solid aluminum plates up to 2000mm in length and high-stiffness lightweight aluminum honeycomb optical plate structures.

Processing on 4-axis and 5-axis CNC machining centers eliminates cumulative positioning errors across large hole grids. Specialized surface finishing includes matte black anodized aluminum optical breadboard treatments for stray light absorption and low-outgassing conductive chromate coatings for vacuum-compatible aluminum optical breadboard applications.

Root-Cause Case Studies & Failure Analysis

Solving critical engineering defects in flatness warpage, pitch accumulation, and chamber outgassing.

Internal Residual Stress & Long-Term Flatness Drift

· Incident: A 1200mm x 600mm x 12.7mm solid 6061-T6 aluminum optical bench plate delivered to a European university laboratory satisfied the initial flatness specification (0.02mm/m) upon factory inspection. After 30 days of storage, internal stress relaxation caused a 0.08mm central bow, disrupting laser beam coaxiality across the 1.2m optical path.

· Root Cause: Single-stage conventional machining induced asymmetrical residual stress distributions across the top and bottom milled faces without intermediate stress-relief annealing.

· Corrective Action: Implemented a three-stage stress-relief protocol: high-temperature stress relief after rough milling (345^∘C for 2 hours), low-temperature stabilization after semi-finishing (160^∘C for 4 hours), and final artificial aging. Added a mandatory 7-day static hold before final CMM re-measurement.

· Verification Data: Plates subjected to this process demonstrate flatness drift ≤0.005mm/m over a 6-month static monitoring period.

Cumulative Pitch Error in Large Threaded Hole Matrices

· Incident: An optical system integrator experienced alignment binding when mounting a series of multi-axis linear stages across a custom metric aluminum optical breadboard m6. Individual hole-to-hole tolerances met ±0.02mm, but cumulative distance error reached 0.10mm over a 1m span at the plate boundary.

· Root Cause: Standard CNC linear interpolation accumulated lead-screw thermal expansion errors and tool deflection over sequential row-by-row drilling paths.

· Corrective Action: Re-engineered the toolpath strategy using unified datum positioning from a central coordinate origin. Applied real-time thermal compensation models to the CNC controller and implemented regional path distribution.

· Verification Data: Integrated 100% thread position inspection using optical coordinate measuring machines (CMM). Reduced cumulative matrix pitch error across 1000mm to ≤±0.01mm.

Outgassing Contamination in High-Vacuum Optical Chambers

· Incident: A vacuum-compatible aluminum optical breadboard installed inside a 1×10⁻⁵ Pa vacuum chamber released trapped moisture and organic volatiles, capping chamber base pressure at 1×10⁻⁴ Pa and fogging adjacent silica lenses.

· Root Cause: Standard sulfuric acid black anodizing formed a porous oxide layer that entrapped chemistry and atmospheric vapor.

· Corrective Action: Switched substrate specifications for vacuum builds to high-purity, low-inclusion 6061-T6 stock. Replaced standard black anodize with non-porous chemical conductive chromate conversion (MIL-DTL-5541) and instituted a post-machining vacuum thermal bakeout (150^∘C at 1×10⁻³ Pa for 12 hours).

· Verification Data: Residual gas analysis (RGA) confirmed outgassing rates dropped below 1×10⁻⁹ Torr⋅L/s⋅cm², allowing chamber pressures to achieve 1×10⁻⁶ Pa.

Standardized Manufacturing Protocols & Quality Standards

Eliminating long-term dimensional instability through multi-stage thermal stress relief and precision gaging.

Residual Stress Management Pipeline

Standard aluminum plates frequently warp following metal removal. A controlled stress relief pipeline is strictly executed:

· Rough Machining: Removal of 80% stock volume using high-speed symmetrical pocketing.

· Thermal Stabilization: Furnace annealing to break down machining-induced surface lattice tension.

· Finish Machining: Low-depth-of-cut finish passes (≤0.1mm) using polished single-crystal diamond or micro-grain carbide tooling to prevent surface mechanical stress.

· Stability Audit: Every heavy or large-format solid aluminum laser alignment plate undergoes a 7-day ambient environment hold followed by a secondary CMM surface profile scan before final release.

Thread Matrix Accuracy & Optical Interoperability

· Cumulative Pitch Control: Matrix grid locations are calculated using central datum offsets rather than incremental stepping, maintaining grid accuracy within ≤±0.01mm over 1000mm.

· Thread Cleanliness: Blind tapped holes are flushed via high-pressure solvent jets to remove tapping fluids and aluminum micro-burrs.

· Interoperability Testing: First-article units undergo physical test fitting with Thorlabs equivalent optical post mounts, ensuring a thorlabs equivalent aluminum optical plate substitution without mounting binding or pitch mismatch.

Vacuum-Grade Degassing Control

For ultra-high vacuum (UHV) applications, standard finishes are insufficient:

· Substrate Selection: Certified low-void 6061-T6 aluminum billets.

· Surface Chemistry: Conductive chromate conversion coating per MIL-DTL-5541 Class 1A, avoiding porous anodic structures.

· Degassing Bakeout: Thermal vacuum baking eliminates volatile organics and absorbed moisture prior to cleanroom sealed packaging.

Complete Technical Specifications & Tolerance Limits

Quantitative parameters for material grades, surface finishes, matrix pitch accuracy, and outgassing limits.

Precision CNC Aluminum Plates vs. Traditional Bench Substrates

Performance benchmarking against sheet metal fabrications, cast iron tables, and modular extrusions.

Optomechanical Selection Guide & Substrate Matrix

Matching solid vs. honeycomb structures and surface treatments to your exact operating environment.

Structural Configuration Selection

· Solid Aluminum Plates: Select for high thermal mass, maximum structural rigidity, and dense mounting setups. Recommended for high-power laser paths and precision optical interferometry.

· Honeycomb Core Plates: Select when total system weight must be minimized without losing flexural rigidity. Ideal for portable testing rigs, airborne optical platforms, and end-of-arm robotic vision assemblies.

Thread Standard Selection

· Metric M6 Grid (25mm Spacing): Standard configuration for European and Asian optical mounts, optomechanical stages, and industrial vision frameworks.

· Imperial 1/4"-20 Grid (1-Inch Spacing): Standard configuration for North American laboratory hardware and standard Thorlabs or Newport optomechanical assemblies.

Application-Specific Surface Finish Matrix

· Standard Optics Laboratories: Specify Type II matte black anodizing. Absorbs >95% of stray visible light and resists surface scratching from stainless steel mounting posts.

· High-Vacuum / Thermal Vacuum Chambers: Specify MIL-DTL-5541 conductive chromate conversion paired with high-purity 6061-T6 aluminum to maintain outgassing limits below 1×10⁻⁹ Torr⋅L/s⋅cm².

· High-Wear / Portable Field Rigs: Specify Type III Hardcoat Anodizing (thickness 25–50 μm) to prevent surface scratching during frequent component repositioning.

Multi-Stage Quality Assurance & Metrology Pipeline

Rigorous 6-step quality control from raw billet verification to final CMM surface mapping.

1. Raw Material Validation: Material test certificates (MTC) verifying chemical composition and mechanical yield strength are checked for every aluminum lot. Low-inclusion purity verification is applied to vacuum-grade stock.

2. First Article Inspection (FAI): Includes complete 3D CMM dimensional inspection, thread gaging using class 6H or 2B plug gages, and surface roughness measurement using contact profilometers.

3. In-Process Monitoring: CNC machines utilize laser tool setters to track cutting edge wear, preventing thread pitch drift across large matrix hole layouts.

4. Specialized Optical Inspections:

· Flatness Mapping: Measured on Class 00 granite surface plates using multi-point CMM probing.

· Thread Engagement Verification: Test fitted using standardized optical posts across corner, center, and perimeter grid locations.

· Outgassing Certification: Vacuum-grade lots are verified via residual gas analysis (RGA) data.

5. Final Inspection & Export Packaging: Plates are solvent-cleaned to eliminate cutting fluids, wrapped in non-abrasive anti-static film, and encased in customized foam-lined wooden cases to prevent flat surface distortion during international transit.

Specialized Industrial Application Environments

Proven performance in microscopy, laser processing, UHV testing, and mobile vision systems.

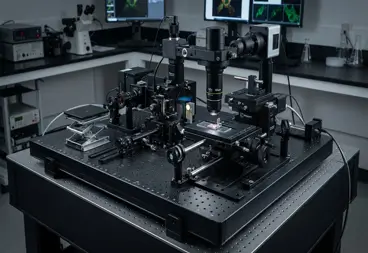

Biological & Fluorescence Microscopy Platforms

High-flatness base plates providing stable, vibration-damped mounting platforms for objective lenses, beam splitters, and high-sensitivity EMCCD cameras.

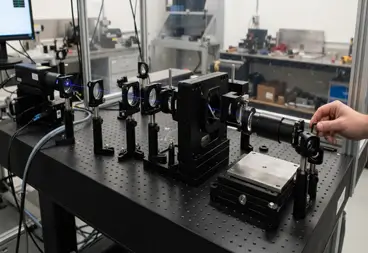

High-Power Industrial Laser System Alignment

Sturdy black anodized aluminum optical breadboard assemblies designed to absorb stray reflections and anchor beam-shaping galvo heads, mirrors, and focusing optics.

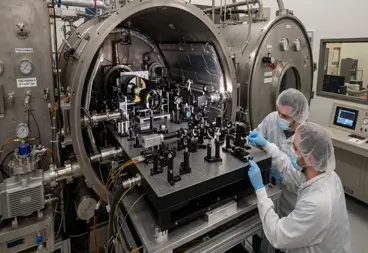

Vacuum Optical Test Chambers

Vacuum compatible aluminum optical breadboard setups operating within thermal-vacuum environmental testing chambers for satellite sensors and optical payloads.

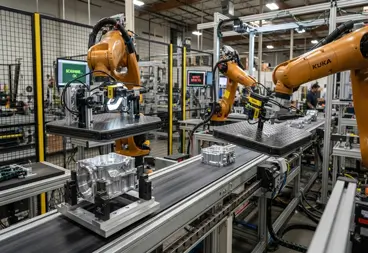

Automated Machine Vision Systems

Lightweight aluminum honeycomb optical plate sub-assemblies mounted directly onto 6-axis industrial robot arms for real-time inline defect scanning.

Get A Quote for Aluminum Optical Bench Plates

Frequently Asked Questions





01.Why do large aluminum optical breadboards warp over time and how do you prevent long-term distortion?

Internal residual stress from raw extrusion or aggressive high-speed rough milling slowly releases over weeks, pulling un-annealed aluminum plates out of flatness. Warping is prevented by executing a three-stage thermal stress-relief cycle (345^∘C post-roughing, 160^∘C post-semi-finishing) and enforcing a 7-day static CMM hold prior to final surface finishing.

02.Does black anodizing cause thread interference or pitch binding on M6 and 1/4"-20 tapped holes?

Standard Type II black anodizing adds 10–20 μm of oxide buildup per surface, which shrinks internal thread pitch diameters and risks post binding. Thread taps are pitch-compensated before machining, and every thread is 100% verified using 6H or 2B go/no-go thread plug gages following anodizing.

03.How do you prevent outgassing when placing aluminum bench plates inside high-vacuum chambers?

Standard sulfuric anodizing traps water molecules and volatile cutting oils inside porous anodic layers. For high-vacuum setups, high-purity low-void 6061-T6 stock is combined with non-porous chemical chromate conversion (MIL-DTL-5541) and a 150^∘C thermal vacuum bakeout, keeping outgassing rates below 1×10⁻⁹ Torr⋅L/s⋅cm².

04.Are these custom optical plates directly compatible with commercial post mounts and linear stages?

Yes. Grid pitch spacings (25mm metric or 1-inch imperial), hole counterbores, and thread depth parameters strictly adhere to commercial optical mounting standards. First-article inspections test-fit standard stainless steel posts across edge, center, and corner grid positions to guarantee smooth thread insertion.

05.When should an engineer choose a solid aluminum plate versus a lightweight honeycomb core plate?

Solid 12.7mm or 25.4mm aluminum plates deliver high thermal inertia, excellent local damping, and dense mounting flexibility for stationary laser setups. Honeycomb core structures reduce total mass by up to 65% while preserving bending stiffness, making them ideal for dynamic motion stages, airborne payloads, or mobile vision rigs.

06.Can non-standard mounting counterbores or mixed metric/imperial grids be combined on a single plate?

Yes. Because every plate is milled directly on multi-axis CNC machinery, custom peripheral mounting counterbores, alignment dowel pin holes, and mixed thread sizes (e.g., M6 grid with M4 peripheral mounts) are incorporated directly from your 3D CAD model without hard tooling costs.

Submit your CAD files for instant manufacturability feedback and transparent pricing.

Submit your 2D/3D CAD files (STEP, IGS, or PDF) for a comprehensive DFM manufacturability evaluation and an itemized quotation within 24 hours.
