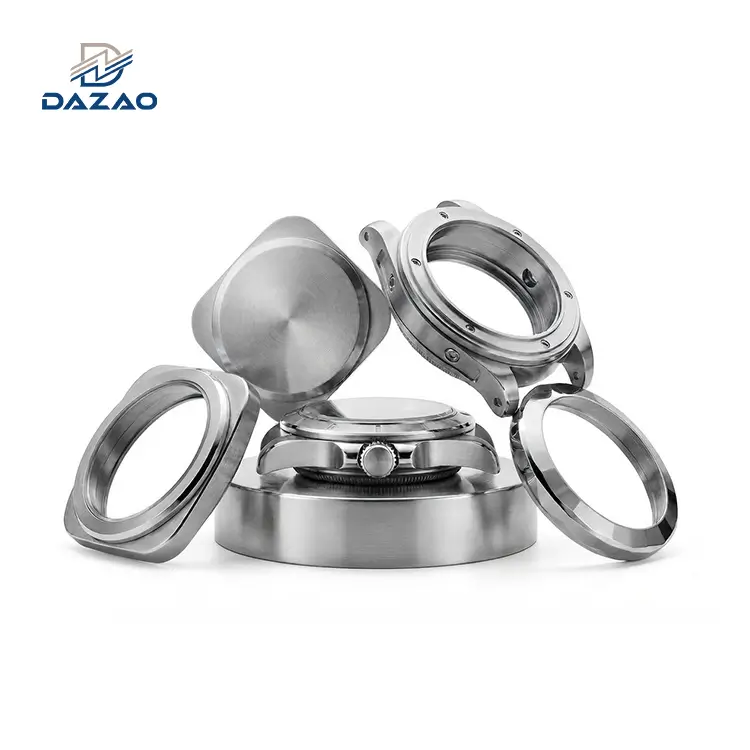

CNC Machining Titanium Watch Case Grade Five Production

Precision Engineering and Turn-Mill Capabilities for Titanium Watch Components

Integrating advanced multi-axis machining to deliver high-precision watch cases with stable geometries.

Dazao specializes in turn-mill and 5-axis CNC machining titanium watch case components, supporting Grade 2 pure titanium and Grade 5 (Ti-6Al-4V) titanium alloy. Utilizing high-speed machining centers, we fabricate single-piece monolithic watch chassis directly from solid billets. This process eliminates structural joints and minimizes assembly tolerance stacking. Our capabilities support case diameters from 32mm to 46mm, accommodating custom designs for diving watches, dress watches, and high-durability smart wearables requiring certified water-resistance performance.

Thermal Stress-Relief Protocols to Prevent Watch Case Deformation

During a production run of 42mm Grade 5 titanium alloy watch cases for a European micro-brand, conventional steel-machining parameters were initially applied. Post-machining internal stress release caused the lug areas and movement seats to deform by 0.08mm after 15 days of storage, rendering the movement alignment and crown stem mechanism inoperable.

To resolve this, Dazao established a multi-stage stress-relief thermal cycle:

1. Raw-material roughing.

2. Stress-relief vacuum annealing at controlled temperatures to release residual machining stresses.

3. Semi-finishing.

4. Secondary low-temperature thermal stabilization.

5. Final high-speed finishing using optimized toolpaths (low radial depth-of-cut, high cutting speed).

This procedure reduced internal stress build-up. Under prolonged coordinate measuring machine (CMM) verification, post-machined dimensional drift remained within ≤0.01mm over six months of storage.

Standardizing Anodizing Parameters to Eliminate Batch Color Variations

A batch of matte grey titanium watch cases manufactured for an independent studio exhibited visual color variation across different production runs, resulting from separate anodizing bath cycles. Additionally, individual cases showed color inconsistency between flat and vertical faces.

To standardize visual consistency, Dazao integrated full surface-treatment parameters:

· Sandblasting Standardization: Locked the abrasive medium grit size, nozzle pressure, distance, and automated articulation angles to achieve uniform surface roughness (Ra 1.6).

· Anodizing Bath Control: Fixed chemical concentrations, temperature ranges, and electrical current density.

· Spectrophotometer Verification: Configured automated test cycles to verify anodized parts against a master reference plate, limiting batch-to-batch variation to ΔE ≤ 1.0 to ensure consistency visible to the human eye.

High-Precision Sealing Groove Control for Certified Water Resistance

A custom 100m diving-style watch case suffered sealing failures during IP67 pressure tests because the groove tolerances did not account for the low elastic modulus and spring-back behavior of titanium alloys. This resulted in uneven O-ring compression.

Dazao optimized the machining offsets of the seal seats, using mirror-finish milling to maintain a groove depth tolerance of ±0.01 mm and a surface finish of Ra 0.4. Every newly configured chassis structure now undergoes physical O-ring assembly and pneumatic pressure testing to verify seal compression prior to initiating batch production, maintaining zero leakage up to 100-meter ratings.

Engineering Parameters and Metrology Specifications

Exact dimensional tolerances, material options, and surface treatments for high-end watchmaking.

Rigorous Inspection Protocols and Dimensional Metrology

Ensuring structural reliability, exact seal fitment, and aesthetic perfection across all batches.

Our metrology and inspection workflow utilizes calibrated instruments to verify both dimensional and cosmetic integrity across the production sequence:

· Incoming Material Verification: Every batch of Grade 2 and Grade 5 titanium bars undergoes handheld X-ray fluorescence (XRF) spectrographic analysis to verify alloy chemical composition. Mill Test Certificates (MTC) are logged for trace verification.

· First Article Inspection (FAI): Prior to running a batch, the initial machined watch case is subjected to complete coordinate measuring machine (CMM) profiling. Lug alignment, internal threads, thread pitch, and waterproofing grooves are checked against the nominal 3D CAD model.

· In-Process Quality Control (IPQC): Digital calipers, thread plug gauges, and optical comparators are used to inspect critical dimensions every 10 cycles. This mitigates risk from tool wear and deflection during titanium machining.

· Leakage & Waterproofing Verification: Assembled watch cases undergo air-leakage test runs under simulated pneumatic pressure differentials (up to 10 bar) to ensure sealing integrity.

· Cosmetic In-Process & Final Inspection: 100% of finished watch cases are inspected under 10x magnification lighting to identify and reject surface scratches, tool marks, or color variations in the anodized layer.

· Export Packaging: Each case is placed in a custom-cut high-density foam tray inside individual anti-scratch protective sleeves, preventing physical impact during transit.

Target Industries and Precision Component Classifications

Serving boutique watch brands, wearable tech innovators, and specialized mechanical horology labs.

Component Categories

· Dress Watch Cases: Thin-profile, multi-step turn-milled housings designed for low-clearance dress movements.

· Sports & Diving Watch Housings: Monolithic titanium chassis featuring integrated bezel click-spring holes and deep screw-down caseback threads.

· Smartwatch Enclosures: Complex internal multi-pockets with precision sensor windows and antenna-isolation slots.

· Watch Sub-Assemblies: Precision bezels, inner movement spacers, casebacks, crowns, pusher guards, and lug adaptors.

Application Fields

Boutique Horology Brands

Small-to-medium-scale mechanical watch brands requiring unique metal options.

Independent Watchmaking Studios

Specialized horologists requiring low-volume custom geometries without tooling setup investments.

Wearable Electronics & IoT

Tech manufacturers designing high-strength, lightweight smart devices and fitness trackers.

Aerospace Commemorative Production

Specialized high-durability projects requiring structural protection.

Get A Quote for CNC Machining Titanium Watch Case

Honest Evaluation of Titanium Machining Advantages and Process Challenges

Balancing the extreme strength and lightweight properties of titanium with its hard-to-machine nature.

Key Advantages

· High Strength-to-Weight Ratio: Titanium cases are approximately 40% lighter than 316L stainless steel while offering comparable mechanical strength, improving wearing comfort.

· Corrosion & Sweat Resistance: Resists chloride-induced pitting, sweat, and saltwater degradation without tarnishing.

· Biocompatibility: Hypoallergenic material properties make it suitable for direct skin-contact applications, reducing skin reactions common with nickel-containing steel alloys.

· Tooling-Free Production: Direct CNC milling from CAD models avoids high mold tool investments, facilitating rapid design updates and prototyping.

Practical Process Limitations

· Elevated Machining Cost: The high hardness, low thermal conductivity, and chemical reactivity of titanium accelerate tool wear, resulting in production costs 30% to 50% higher than stainless steel.

· Extended Cycle Times: Lower material removal rates and multi-stage stress-relief thermal cycles increase overall production lead times by approximately 30%.

· Finishing Limitations: Polished titanium surfaces are prone to micro-scratches. For high-wear applications, we suggest Grade 5 titanium over Grade 2, or applying a Diamond-Like Carbon (DLC) coating to increase surface hardness.

Material Selection and Finishing Guide for Product Developers

Helping design engineers choose the correct titanium grade and surface treatments to match their use case.

1. Material Selection Matrix

· Grade 2 Pure Titanium:

Characteristics: Excellent biocompatibility, low weight, moderate mechanical hardness. Easy to machine compared to Grade 5.

Applications: Dress watches, casual luxury styles, hypoallergenic back covers.

Consideration: Lower surface hardness makes it susceptible to minor scuffs; not recommended for deep-sea diving models.

· Grade 5 Titanium (Ti-6Al-4V):

Characteristics: High tensile strength, scratch-resistant surface hardness, excellent structural stiffness.

Applications: Sports chronographs, professional diving models, rugged outdoor smartwatches.

Consideration: Harder to mill, leading to higher tool consumption and higher overall component costs.

2. Finishing Options & Design Recommendations

· Bead Blasting (Matte Finish): Achieves a non-reflective, satin grey appearance that masks micro-scratches. Best for tactical or instrument-style military watches.

· Linear / Circular Brushing: Emphasizes the raw metallic look of titanium with micro-grooves. Best for bezel surfaces and sports watch lugs.

· Mirror Polishing: Highly reflective, shiny finish. Demands multi-stage manual and machine buffing due to titanium's low heat dissipation. Recommended for high-end limited editions.

· Anodizing (Type II): Generates oxide films in blue, gold, bronze, or grey shades. Note that bright neon colors and white are difficult to achieve on titanium substrates.

· Diamond-Like Carbon (DLC) Coating: Increases surface hardness to over 1500 HV. Best for black-tactical sports models needing high wear and scratch protection.

FAQs





01.Can you machine CNC titanium watch cases?

Yes, we specialize in high-precision turn-mill and 5-axis machining for Grade 2 and Grade 5 titanium cases. Our CNC services ensure exact geometries and dimensional alignment for standard, sports, and smartwatch components.

02.Do you support custom CNC titanium watch cases?

Yes, we provide full customization based on your 2D/3D CAD files. Our engineering department handles structural DFM analysis and works with you to optimize movement seats, water-resistance seals, and cosmetic external contours.

03.Do you use Grade 5 titanium for watch cases?

Yes, Grade 5 (Ti-6Al-4V) is our primary alloy for sports and diving watch cases. It provides superior scratch resistance, tensile strength, and structural rigidity compared to pure Grade 2 titanium, making it ideal for rugged applications.

04.Do you accept small-batch watch case orders?

Yes, we support low-volume production with no strict minimum order quantities. We machine orders ranging from a single prototype for design validation up to production runs of 50 to 500 units for independent watchmaking brands.

05.How much does a CNC titanium watch case cost?

The cost depends on structural complexity, tolerances, surface finishes, and batch size. Although titanium costs 30% to 50% more to machine than stainless steel, our direct-factory setups ensure competitive pricing without any tooling fees.

06.Do you offer bespoke watch component machining?

Yes, we provide custom machining for all external watch components. Beyond the main case, we manufacture matching bezels, screw-down casebacks, custom crowns, inner movement spacer rings, and structural lug adaptors to your specific technical standards.

Upload your 2D/3D CAD files (STEP/IGS/PDF) for rapid engineering DFM feedback and a comprehensive technical quotation within 24 hours.
