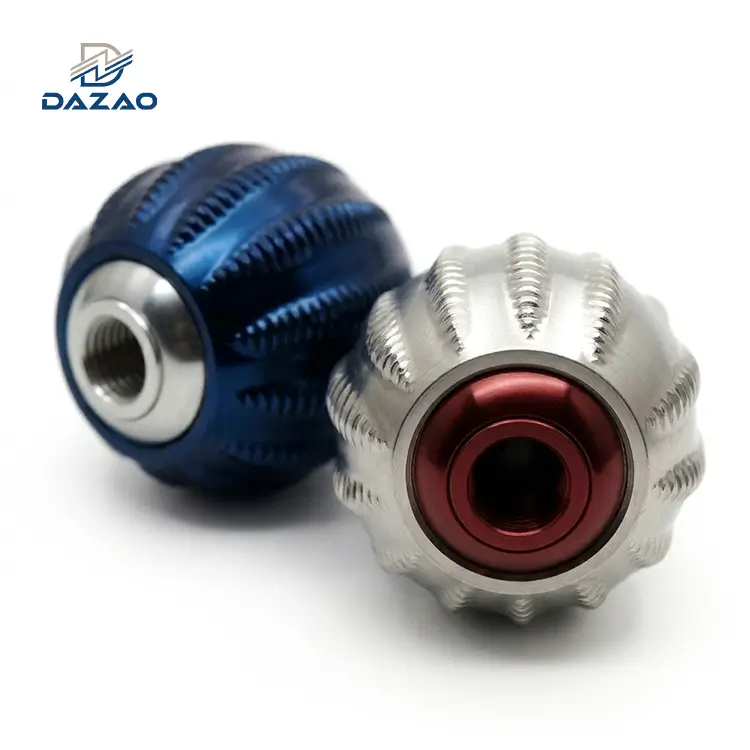

Precision CNC Machining Aluminum Shift Knobs Billet Gears

Product Overview and Multi Axis CNC Machining Capabilities

Solid aerospace billet stock converted into robust components through advanced machining practices.

Xiamen Dazao Machinery provides high-precision turn-mill compound machining services for custom shifter hardware. Utilizing single-piece billet stock (such as aerospace-grade AL6061-T6 and AL7075-T6), we turn and mill exact interior profiles without structural welds, casting voids, or cheap plastic cores. By executing these steps under our professional aluminum cnc machining services, we guarantee structural reliability.

Our specialized CNC manufacturing footprint accommodates spherical, cylindrical, and teardrop ergonomic geometries. Rather than supplying generic, loose-fitting aftermarket components, our facility engineered three proprietary corrective processes to resolve the three most common field failures reported by performance automotive brands:

1: Resolving Thread Jamming via Oxide Thickness Pre-Compensation

Standard anodizing processes add a superficial oxide layer of 5 μm to 20 μm to the component surface. When machining standard inner thread dimensions prior to anodizing, this surface buildup constricts the thread pitch diameter. During a past run of custom JDM shift knobs for a US distributor, standard M10x1.5 threads suffered from severe thread binding post-anodizing, leading to a 30% assembly rejection rate at retail.

To correct this during the cnc turning phase, we established an oxide layer thickness pre-compensation algorithm. Prior to tapping or single-point thread turning, we calculate the exact oxide layer thickness (dependent on Type II or Type III hard-coat anodizing requirements) and oversize the pre-anodized internal thread pitch diameter accordingly. This ensures the finalized, anodized component matches exact 6H or 6g thread class specifications, achieving a perfect thread engagement runout with zero binding.

· Pre-Anodizing Phase: Core Metal Thread Cut -> Oversized by 5–20μm

· Post-Anodizing Phase: Oxide Layer Deposition -> Thread Settles to 6H/6g Target

2: Preventing Knurling Wear via CNC 3D Milling

Conventional knurled shift knobs rely on low-cost pressure extrusion knurling wheels. This process deforms the metal outward, creating shallow, weak peaks that degrade within months of high-vibration racing environments, turning smooth and slippery. Additionally, pressure knurling often leaves micro-splinters on the metal edges, presenting safety hazards for drivers.

Our engineering solution replaces traditional extrusion knurling with multi-axis CNC 3D milling. By cutting the crosshatch profile directly into the billet structure using specialized form cutters, we achieve 40% deeper tactile ridges, complete burr-free chamfered edges, and a structure that resists mechanical wear even under professional, heavy-glove racing operations.

3: Eliminating Shift Lever Vibration through Concentric Weighting

Generic weighted gear knobs often feature misaligned cast-iron or heavy steel inserts epoxied into hollow aluminum shells. When our racing equipment client tested these configurations under high engine RPMs, the lack of concentricity (frequently exceeding 0.15 mm eccentricity) produced high-frequency shifter rattling and vague gear engagement feedback.

We developed an integrated concentric weighting process. Weighted cores (brass or stainless steel) are machined with an interference-fit locating shoulder. The outer aluminum shell is machined and press-assembled on the same setup before final exterior turning. This guarantees that the center of gravity aligns precisely along the centerline of the shift-lever thread axis, reducing dynamic eccentricity to ≤ 0.02 mm. The result is a solid, vibration-free shift action with positive mechanical feedback.

Technical Specifications and Billet Material Performance Standards

Verified metallurgical data and exact tolerances structured for demanding mechanical environments.

Structural Performance and Manufacturing Process Comparison Matrix

An objective comparison proving why solid billet components outperform standard casting and molding.

Engineering Trade Offs and Material Selection Design Analysis

Clear, balanced design insights regarding thermal properties and weight balance for optimal operation.

While solid billet aluminum shift knobs deliver high mechanical performance, engineers must balance specific material limitations during product development:

· Thermal Conductivity: Solid aluminum acts as an efficient thermal conductor. In open-cabin racing or regions with extreme climates, the metal knob absorbs heat rapidly in summer and loses heat in winter. For high-end applications, we recommend integrating an engineering-plastic (POM/Delrin) thermal isolation barrier or a genuine leather sleeve over the aluminum chassis.

· Mass and Inertia vs. Short-Throw Setups: Increasing the mass of a weighted shifter knob (>400 g) provides smoother shifts by overcoming gate resistance. However, in track scenarios utilizing high-tension, short-throw shifters, excessive knob weight can increase shift times or put continuous resting load on the shift forks, accelerating synchro wear.

· Matt Finish Maintenance: While a fine, media-blasted matte finish feels premium, matte-anodized surfaces retain oil and sweat residues more visibly than polished surfaces. For high-touch consumer parts, we suggest specifying our hard-anodized silver or medium-gloss textured finishes.

Technical Selection Matrix for Materials and Thread Geometries

A structured reference guide to help project managers select the ideal material grade and thread configuration.

· AL6061-T6: Recommended for daily-driven vehicles and general aftermarket applications. Highly responsive to aesthetic anodizing with excellent color consistency.

· AL7075-T6: Reserved for track use, heavy-duty racing, and premium tactile requirements. Highly resistant to impact and abrasion, though it exhibits slightly lower color vibrance under light anodizing shades.

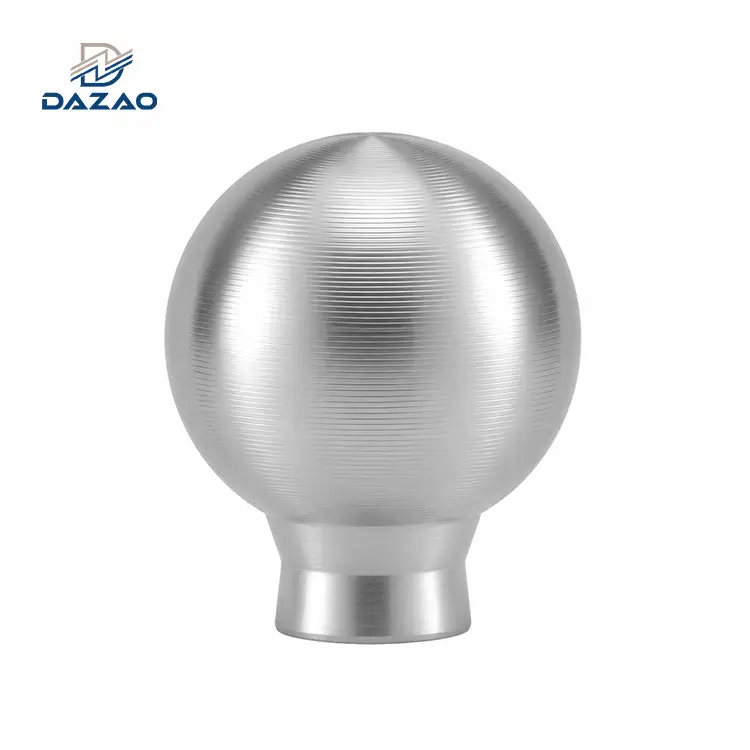

· Spherical Configuration: Standard diameter of 48 mm to 52 mm fits natural palm grip profiles, ideal for H-pattern gearboxes.

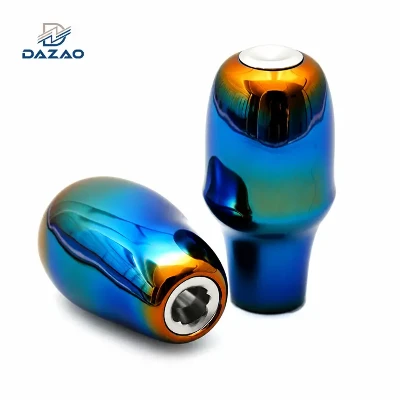

· Cylindrical JDM Profile: Optimized for quick-access sequential shifters, facilitating fast hand transit from the steering wheel.

Quality Control Systems and Precision Metrology Inspection Standards

Rigorous dimensional verification and material testing protocols ensuring traceably perfect production batches.

Xiamen Dazao Machinery enforces a complete, closed-loop quality system certified to ISO 9001:2015. Our professional cnc machining service includes strict verification protocols at every key gate:

· Material Verification: Incoming aluminum bar stock undergoes Optical Emission Spectrometry (OES) chemical analysis and tensile testing. Every production run is issued with a certified material test report (MTR) traceable to the batch.

· In-Process Metrology: Critical thread dimensions are validated at the CNC workstation every 20 parts using calibrated thread go-no-go plug gauges.

· Dynamic Balancer Runout Analysis: Weighted shift knobs undergo 100% spin balance testing. We measure and correct imbalance to ensure center of gravity runout is within ≤0.02 mm.

· Optical Anodizing Assessment: Post-anodizing visual inspections are performed inside a standard light booth under D65 illuminants. Color consistency is verified utilizing a spectrophotometer to maintain ΔE ≤ 1.2.

· Protective Packing Specification: Components are packaged individually in custom-molded Expanded Polyethylene (EPE) foam trays to eliminate metal-on-metal contact during international transit.

Diverse Application Scenarios and End Use Environments

Proven hardware integration across elite racing divisions, tuning brands, and heavy-duty industrial systems.

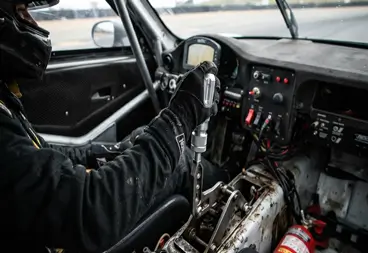

Professional Motorsports Gearboxes

High-vibration racing cabins requiring durable billet aluminum shift knobs capable of resisting extreme shear forces.

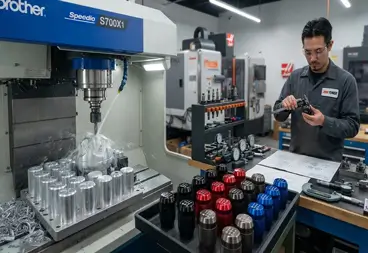

JDM Tuner Aftermarket Brands

High-end aftermarket distributors demanding premium anodized finishes, clear laser-etched shift patterns, and tight-tolerance threads.

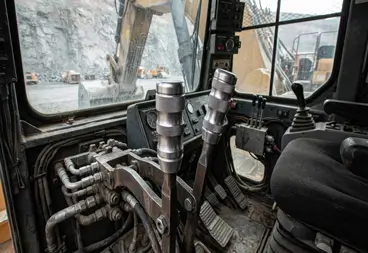

Heavy Industrial Machinery Control Levers

Ergonomic control handles fitted to high-cycle hydraulic valves and heavy mechanical transmission controls.

Sim-Racing Simulator Gear Shifters

Ultra-precise, weighted replicas engineered for high-end force feedback sim-racing wheelbases.

Get A Quote for CNC Machining Aluminum Shift Knobs

FAQs





01.How do you custom cnc aluminum shift knob models for OEM brands?

We machine custom shift knobs directly from your 2D drawings or 3D STEP/IGS CAD files. Our engineering team conducts a full-scope DFM review, optimizing thread pre-compensation for anodizing thickness and machining concentric internal chambers to ensure consistent material density and proper thread alignment.

02.What are the benefits of a weighted aluminum shift knob 6 speed?

An internally weighted 6-speed gear knob utilizes physical inertia to smooth out gate resistance during gear changes. By concentrating solid brass or steel weights along the central axis, we stabilize shifter vibration, reduce shift effort, and provide positive gear engagement feedback under high-RPM track conditions.

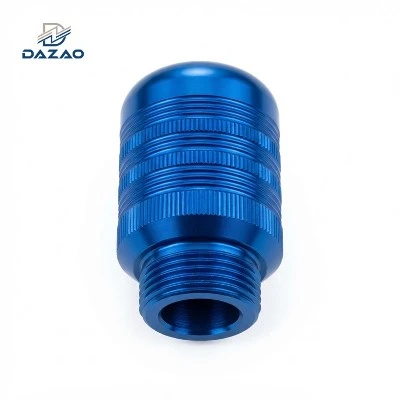

03.Why choose an anodized cnc billet aluminum gear knob over cast options?

Solid billet turning eliminates the internal gas pockets, surface porosity, and structural weaknesses common in cast components. Billet machining yields a highly consistent surface texture, holds tight 6H/6g thread tolerances, and supports Type II/III anodizing finishes that resist skin acidity and mechanical wear.

04.Do you manufacture universal jdm aluminum shift knob manual kits?

Yes. We manufacture JDM-profile cylindrical and spherical shift knobs. Our universal kits feature a larger internal bore to accommodate various threaded brass or self-tapping composite adapters, allowing automotive distributors to service multiple vehicle makes with a single, consolidated product inventory.

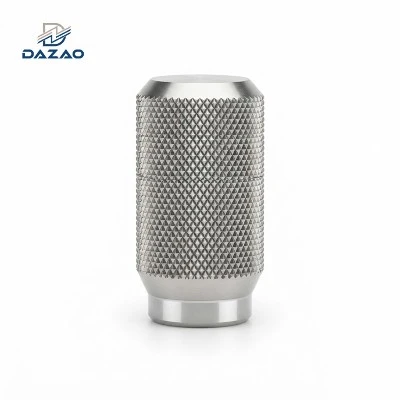

05.Can you supply a knurled aluminum shift knob with adapters?

Yes. We machine deep, wear-resistant 3D crosshatch patterns using multi-axis CNC milling cutters rather than standard pressure knurled wheels. This ensures sharp, burr-free surfaces. Every unit ships with precision-machined threaded brass inserts to fit standard shift levers from M8 to M16.

06.Do you offer a black matte cnc aluminum shifter knob?

Yes. Our matte black finish utilizes 150# glass bead blasting followed by a Type III hard-coat anodizing bath. This creates a non-reflective, highly scratch-resistant micro-texture. This finish resists finger oils, reduces sweat buildup, and provides a secure, tactile grip for performance driving.

Ready to Optimize Your Shift Knob Production?
Submit your 2D/3D CAD files (STEP, IGS, or PDF formats) directly to our engineering team at Xiamen Dazao Machinery.

We will provide a comprehensive, data-driven Design for Manufacturability (DFM) assessment and an itemized production quote within 24 hours.
