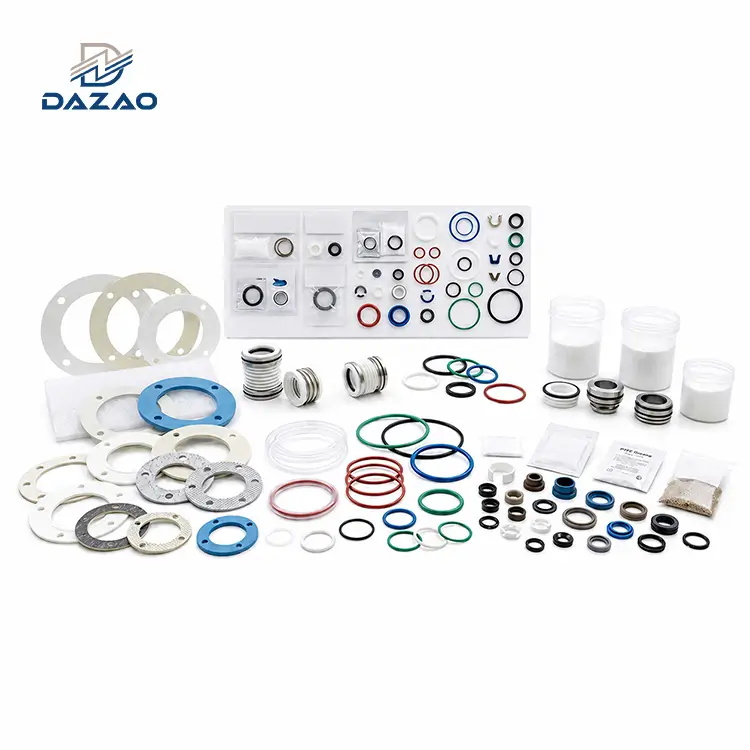

High Precision PTFE Mechanical Gaskets Seals FDA ANSI Compliant

Engineering Specifications For PTFE Mechanical Sealing Components

Advanced material properties ensuring structural integrity in extreme environments.

Dazao Machinery specializes in high-precision CNC machining of PTFE (Polytetrafluoroethylene) components, including flange gaskets, valve seats, and dynamic shaft seals. Unlike traditional die-cutting or molding, our 5-axis CNC process ensures zero-burr finishes and precise tolerances (up to ±0.01mm) required for critical zero-leakage environments. We address the inherent "cold flow" (creep) weakness of PTFE through specialized material compounding and post-machining stress-relief cycles, ensuring long-term seal integrity in high-pressure chemical and pharmaceutical systems.

Performance Data And Material Grade Comparison Table

Comparative analysis of filled and virgin polymers for informed selection.

Failure Mode Prevention Through Precision Engineering Iterations

Case-driven optimization to eliminate creep and chemical degradation.

We do not offer "standard" parts; we provide engineered solutions based on verified failure data from our 9-year production history.

1.Cold Flow Prevention in Petrochemical Flanges: Following a 2021 failure in 120°C acid pipelines, we implemented a 3-layer suppression protocol. By utilizing carbon-filled PTFE and a proprietary 24-hour thermal annealing cycle, we reduced the compression set by 65%, preventing the "extruding" effect common in virgin PTFE under pressure.

2.Ultra-Clean Compliance for Pharma: To eliminate leachables found in standard shops, Dazao established a Class 100 dedicated plastics machining zone. Using DI-water cooling and ultrasonic cleaning, we ensure all FDA-compliant virgin PTFE gaskets meet USP Class VI standards for zero-residue pharmaceutical filling.

3.Concentricity for Valve Seats: For Australian valve OEMs, we corrected a 0.07mm leakage issue by moving from 2-setup machining to single-setup 5-axis milling. This guarantees ≤0.01mm concentricity between the ID sealing face and OD mounting surface, eliminating internal leakage.

Primary Industry Applications For High Purity PTFE Seals

Specialized sealing solutions across pharmaceutical semiconductor and aerospace sectors.

Petrochemical Processing

Chemical resistant PTFE envelope gaskets for corrosive acid/alkali transport.

Pharmaceutical & Biotech

fda compliant virgin ptfe gaskets for sanitary pumps and reactors.

Semiconductor Manufacturing

High-purity seals for wafer etching and fluid handling systems.

Industrial Valve & Pump

carbon filled ptfe seal rings and valve seats for high-wear dynamic applications.

Get A Quote for PTFE Mechanical Gaskets Seals

FAQs





01.Can you provide expanded ptfe flange gasket dimensions for ANSI/ASME standards?

Yes. We machine ePTFE gaskets to all ANSI B16.21 and ASME B16.5 standards. Because we use CNC machining rather than dies, we can also produce non-standard thicknesses (e.g., 1.5mm, 3.2mm, or 6.0mm) and custom bolt patterns without tooling charges.

02.How does your factory handle fda compliant virgin ptfe gaskets for medical use?

We manage a complete traceability chain. We use only medical-grade resins with full material certs. Parts are machined using oil-free tools, cleaned via 40kHz ultrasonic tanks, and vacuum-sealed in a dust-free environment to prevent secondary contamination.

03.What are the advantages of carbon filled ptfe seal rings over standard PTFE?

Carbon-filled PTFE offers significantly higher thermal conductivity and lower deformation under load. It is the preferred choice for ptfe dynamic shaft lip seals where heat dissipation and wear resistance are required, though it is not recommended for highly oxidizing chemicals.

04.Do you offer spring energized ptfe mechanical seals for high-pressure systems?

Yes. We integrate C-spring, Helical, or V-spring energizers into CNC-machined PTFE jackets. This configuration provides a constant load for sealing in cryogenic or high-vacuum environments where standard elastomers fail due to "compression set."

05.Are your chemical resistant ptfe envelope gaskets suitable for glass-lined reactors?

Absolutely. Our CNC process allows for precise "envelope" geometry that protects the inner elastomer filler from chemical attack while maintaining a soft interface to prevent damage to fragile glass-lined flange faces.

06.What is the typical lead time for high temperature resistant ptfe gaskets?

Prototyping takes 48 hours from CAD approval. Small to medium batches (100–500 pcs) typically ship within 5 to 7 working days. We support DDP shipping to the US, EU, and Australia for seamless delivery.

Immediate Engineering Support & Quotation
Upload your 2D/3D CAD files (STEP, IGS, or PDF) for a detailed DFM (Design for Manufacturability) review.

Our engineering team provides fixed-price quotes within 24 hours, including material certification and inspection plan details.
