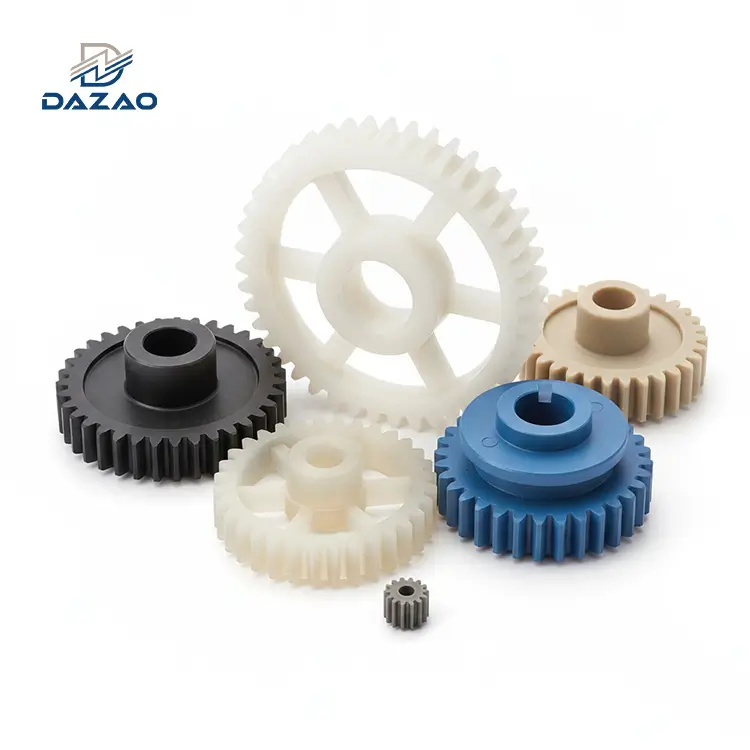

Precision Machined Plastic Spur Gears Nylon Acetal Gearing

Industrial Plastic Gear Machining Capabilities and Materials

Advanced 5-axis milling processes ensuring zero-defect tooth profiles for mission-critical automation.

Precision machined plastic spur gears are engineered for high-performance industrial applications where metallic gears are unsuitable due to weight or chemical constraints. Unlike injection-molded gears that suffer from shrinkage, our 5-axis CNC milling process ensures dimensional accuracy of ±0.02mm and Ra 0.8 surface finishes. We serve robotics, medical instrumentation, and automated machinery sectors globally. Our engineering team utilizes material-specific cutting parameters and stress-relief cycles to eliminate the common issues of creep and deformation in engineering plastics.

Engineering Solutions for Plastic Gear Failure Prevention

Data-driven process improvements to eliminate thermal creep, engagement noise, and maritime warping.

To ensure reliable delivery, we have optimized our processes based on real-world engineering challenges:

1. Eliminating Material Creep in AGV Robotics

In 2021, a client's AGV chassis gears failed due to thermal creep. Standard PA6 Nylon was used without evaluating the 24/7 operating load. We now implement a Condition-Material Matching Matrix. For high-duty cycles, we utilize glass-fiber reinforced Nylon or PEEK to maintain elastic modulus under friction-induced heat, reducing field failure rates by 98%.

2. Reducing Decibel Levels in Laboratory Equipment

A German medical client reported noise levels exceeding 45dB in POM gears due to 0.08mm coaxiality errors. We transitioned to Single-Station Setup Processing, where the gear teeth, center bore, and keyway are machined in one clamping. This reduced noise to <32dB and eliminated secondary assembly alignment issues.

3. Preventing Dimensional Warp During Maritime Freight

Following a 2023 incident, we mandated a Dual-Stage Thermal Stabilization process: pre-machining annealing followed by a secondary stabilization after rough machining. This limits post-delivery dimensional variance to <0.01%, ensuring precision upon arrival.

Quality Assurance and Structural Integrity Inspection Protocols

Comprehensive 100% inspection cycles guaranteeing reliability from the production floor to the final destination.

· Material Verification: Incoming OES testing and moisture content analysis for all plastic resins.

· FAI (First Article Inspection): 100% measurement of tooth profile, pitch, and concentricity.

· Environmental Stress Testing: 72-hour humidity and temperature cycling to simulate international shipping conditions.

· Final Inspection Report: CMM data and material certifications provided with every batch.

Cross Industry Deployment of Engineered Plastic Gears

Optimized transmission solutions for robotics, medical devices, and high-speed food processing sectors.

Robotics & AGVs

High-torque drive gears and end-of-arm tooling components.

Medical Devices

Low-noise PEEK gears for surgical instruments and precision pumps.

Automated Machinery

Precision timing gears for packaging and high-speed sorting lines.

Food Processing

FDA-compliant PET and POM gears for conveyor and catering systems.

Get A Quote for Plastic Spur Gear

FAQs





01.What are the advantages of machined plastic spur gears vs. injection molding?

Machined gears eliminate expensive mold costs, allow for ±0.02mm tolerances (vs. ±0.1mm for molding), and have no sink marks. This makes CNC ideal for R&D, small-to-medium batches, and high-precision applications where dimensional stability is critical.

02.Which material is best for high-load plastic gears?

For high-load bearing applications, Nylon (PA66) reinforced with glass fiber is recommended. For underwater or high-humidity environments, Acetal (POM) is superior due to its low moisture absorption and dimensional stability compared to Nylon.

03.Can you manufacture gears from a physical sample?

Yes. We utilize 3D laser scanning and gear measuring centers to reverse-engineer physical samples. We calibrate the tooth profile and center distance to ensure 100% engagement compatibility with your existing drivetrain components.

04.How do you ensure the gears do not warp during shipping?

We perform a two-stage annealing process. By pre-stressing the material at specific temperatures before the final precision cut, we ensure that the internal stresses are neutralized, maintaining accuracy even during extreme temperature fluctuations in maritime transport.

05.What is the minimum order quantity (MOQ) for custom gears?

We have no minimum order quantity. We support R&D engineers with single-unit prototypes. For B2B production, orders of 100+ units benefit from optimized CNC cycle times and lower per-unit material costs.

06.Do you provide material certifications for medical or food grade applications?

Yes. We provide full material traceability reports, including RoHS and REACH compliance. For food and medical projects, we supply FDA-compliant certificates for specific grades of POM, PEEK, and PET.

To learn more about our Quality Assurance protocols and inspection equipment
Submit your 2D/3D CAD files (STEP, IGS, or PDF) to our engineering team.

We provide a complimentary Design for Manufacturing (DFM) review to optimize your gear geometry for performance and cost.
