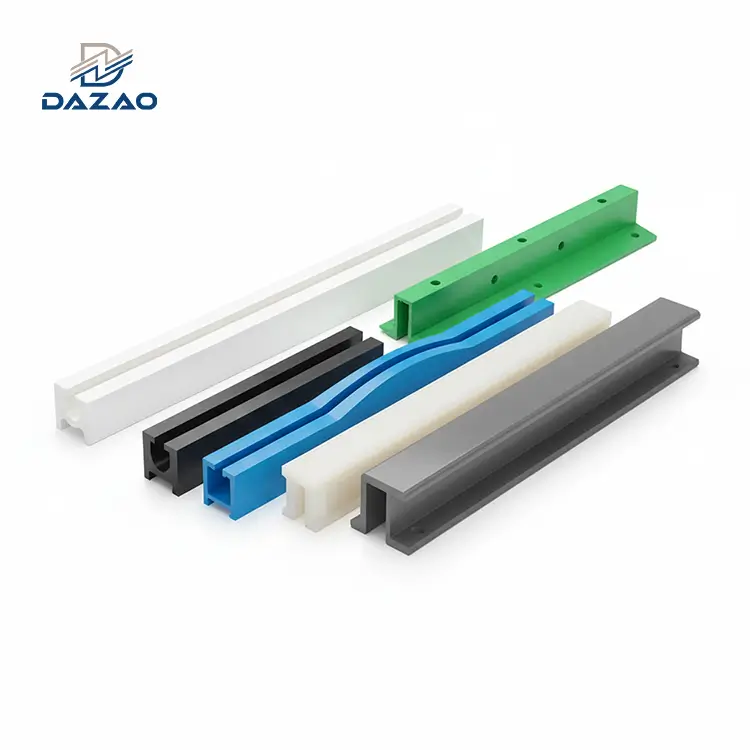

Precision Machined Plastic Chain Guides UHMWPE Nylon

Industrial Engineering and Machining Capabilities

Advanced 5 axis CNC processing for complex profiles and extreme dimensional stability

Our facility provides high-precision 5-axis CNC machining for plastic chain guides designed for high-speed conveyor systems and automated assembly lines. Unlike standard extruded profiles, these components are fully machined from annealed plates including UHMWPE, PA66, and POM. This process eliminates internal stresses and ensures dimensional stability during long-distance maritime shipping. We support complex 3D geometries, including curved rails and spiral guides, without the need for expensive injection molds.

Corrective Field Engineering and Failure Analysis

Technical insights from 9 years of resolving conveyor tracking and material fatigue issues

Technical excellence is built on resolving real-world failures. Our current production protocols are derived from extensive field data and historical case resolutions:

1.Eliminating Assembly Misalignment (2021 Case)

A German packaging client reported 0.8mm/m parallelism deviations in extruded-and-drilled guides, causing chain snagging. Root Cause: Inconsistent clamping references during secondary operations. Solution: Adopted single-station CNC machining where the guide surface, mounting slots, and holes are processed in one setup. Current first-pass assembly rate: 100%.

2.Low-Temperature Fracture Prevention (2022 Case)

A North American cold-chain client experienced PA66 guide cracking at -18°C. Root Cause: Material embrittlement in sub-zero environments. Solution: Transitioned to Toughened UHMWPE with high impact strength at low temperatures. We now mandate a 4-point environmental audit (Temp, Speed, Load, Media) before material selection.

3.Wear Reduction via Profile Optimization (2023 Case)

An Australian bottling plant saw premature wear at guide entry points. Root Cause: Square-cut ends caused chain link impact. Solution: Standardized 30° lead-in chamfers and R0.5 transition radii on all butt-joints, increasing guide service life by 40%.

Industry Compliance and Machining Standards

Precise tolerances and material certifications meeting global industrial safety requirements

Technical Differentiation and Stress Relief Protocols

Proprietary thermal stabilization and edge finishing for superior mechanical longevity

Thermal Stress Control (Anti-Warping Process)

UHMWPE has a thermal expansion coefficient 5x higher than steel. To prevent deformation during sea freight, we implement:

· Constant Temp Annealing: Raw plates are heat-treated to neutralize residual stresses.

· Low-Temp Air Cooling: CNC parameters are optimized with vortex cold-air systems to prevent thermal expansion during cutting.

· Stabilization Period: Parts are rested for 24 hours between rough and finish machining.

Condition-Based Material Selection Matrix

Joint Geometry and Surface Finish Optimization

Standard extruded guides often fail at the joints. Our CNC process includes:

· Staggered Lap Joints: Precision-milled lap joints ensure a flush guiding surface with zero step-height.

· Entry/Exit Radii: Standard R0.5 curves and 30° lead-in angles eliminate chain impact and reduce noise by 6-8 dB.

Primary Industrial Applications and Environments

Reliable guiding solutions across food processing automotive and logistics sectors

Food & Beverage

High-speed bottling and canning lines (Wash-down compatible).

Automotive Assembly

Heavy-duty chassis conveyor systems (Oil resistant).

Logistics & Sorting

High-speed parcel induction lines (Wear resistant).

Pharmaceutical

Cleanroom-compliant transport systems (Low dust emission).

Get A Quote for  Plastic Chain Guide

FAQs





01.Can you reverse engineer a plastic chain guide from a physical sample?

Yes. We utilize 3D laser scanning and coordinate measuring machines (CMM) to map worn samples, apply tolerance offsets for wear compensation, and ensure 100% compatibility with existing conveyor tracks.

02.How do you ensure plastic guides don't warp during long-distance shipping?

We use a three-step stress-relief process: plate annealing, low-temperature CNC milling, and a 24-hour stabilization cycle before final inspection. Our parts maintain a dimensional change rate of ≤0.01% under varying maritime conditions.

03.What is the minimum order quantity for precision guides?

We support low-volume projects starting from 1 meter. However, significant cost efficiencies are achieved for batch orders exceeding 100 meters due to optimized material nesting and CNC setup times.

04.Can you provide FDA-certified materials for food contact?

Absolutely. We supply virgin UHMWPE and POM-C with full traceability, including material data sheets and compliance certificates for FDA, EU 10/2011, and RoHS standards.

05.What is the maximum length of a single-piece guide rail?

We can machine single sections up to 6000mm. For longer runs, we design precision-machined joints (lap or finger joints) to ensure a seamless transition for the chain.

06.How do I choose between Nylon and UHMWPE for my conveyor?

UHMWPE is superior for high-speed, low-friction, and food-grade applications. Nylon 66 is preferred for heavy-load, high-temperature (up to 100°C), or oily environments where UHMWPE might soften or swell.

Expert DFM Feedback Within 24 Hours
Submit 2D/3D CAD files (STEP, IGS, or PDF) for a technical review.

Our engineers will verify material suitability and provide a competitive quote for batch production or prototyping needs.
