Surface Roughness Chart: The Definitive Engineering Guide To Precision Manufacturing

When we Surface Roughness at Dazao, we aren't just discussing the aesthetic shine of a part. We are discussing the Invisible Architecture that decides if a high-speed aerospace bearing lasts 10,000 hours. Or it may seize up in ten.

In CNC machining, 3D printing, and injection molding, surface finish is often the most misunderstood CAD drawing specification. A common misconception is that smoother is always better. At Dazao, our 20 years of shop-floor experience says otherwise. The wrong surface finish can cause failure or waste money.

In this guide, we break down key surface roughness concepts. We compare Ra and Rz. We cover manufacturing processes, costs, and real engineering uses. This helps you make informed decisions.

What Is Surface Finish in Machining?

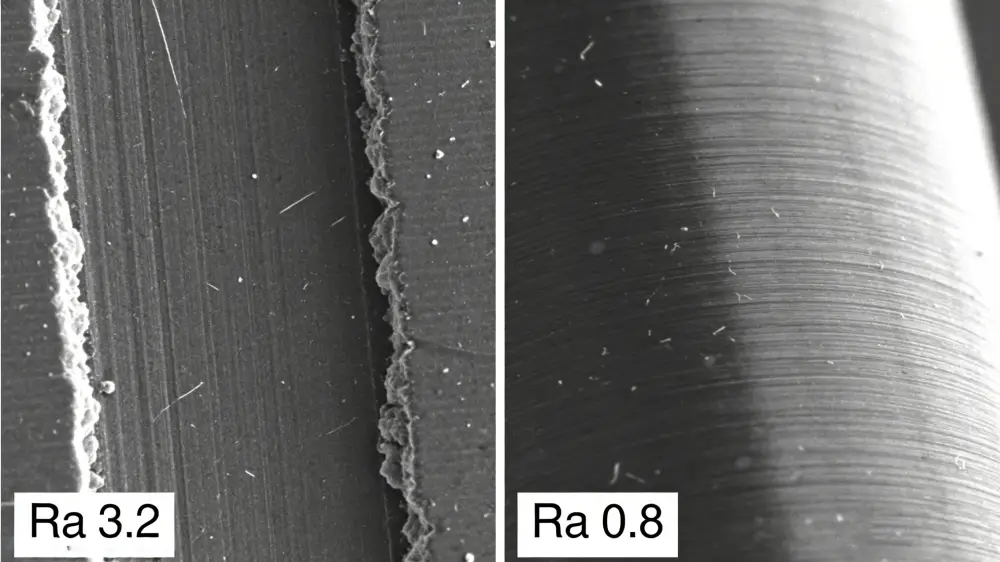

To understand the surface roughness chart, one must first understand what a "surface" actually is. In a perfect Euclidean world, a plane is flat. In the world of subtractive manufacturing, a surface is a chaotic landscape of peaks, valleys, and ripples.

Roughness vs Waviness vs Form: Key Differences in Surface Finish

A surface profile is a composite signal of three distinct geometric components:

· Roughness (Primary Profile): These are high-frequency irregularities left by a cutting tool edge. They can also come from grinding wheel grit or layer-by-layer 3D printing. This is the noise we measure and quantify using Ra and Rz.

· Waviness (Secondary Profile): These are wider-spaced irregularities. Macro issues usually cause waviness. These include machine chatter, spindle runout, heat expansion during cutting, and unstable workholding. You can have a low Ra value on a part that is extremely wavy, which would still lead to seal failure.

· Form (Error of Shape): This is the total deviation from the intended geometry. For example, a cylinder may have a slight taper. A flat plate may have a slight bow.

What Is Surface Lay and Why It Matters in Machining?

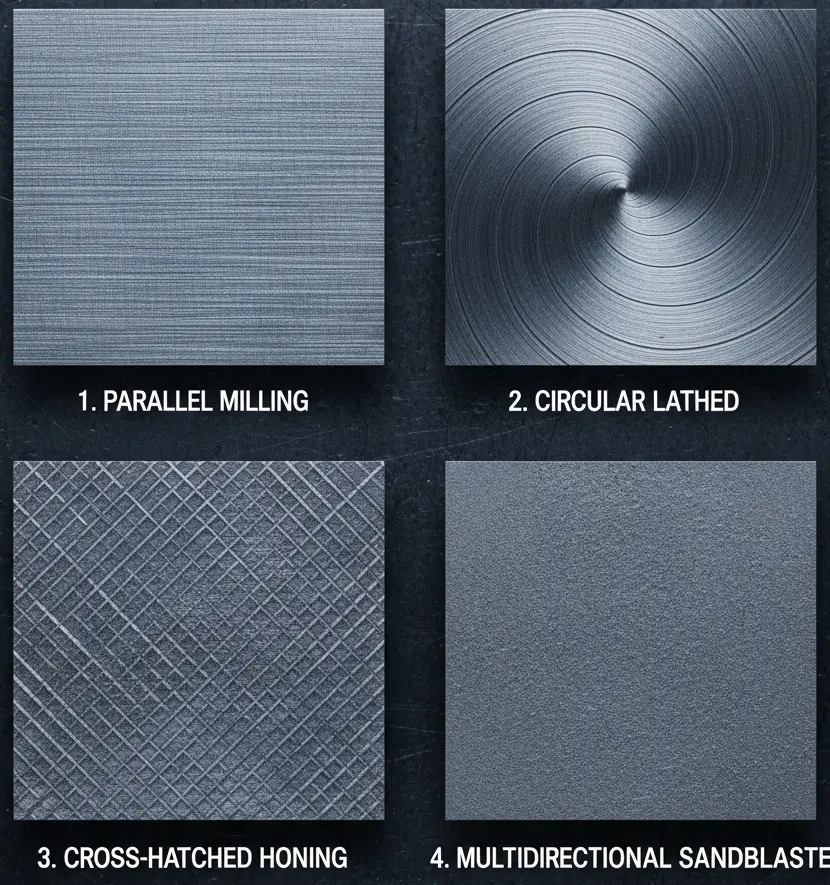

The Lay is the direction of the predominant surface pattern. Why does this matter for your DFM (Design for Manufacturing)?

· Longitudinal Lay: If the tool marks run parallel to the direction of motion, they minimize friction.

· Radial/Circular Lay: Frequently seen in face milling, where the cutter creates swirling arcs.

· Cross-Hatched Lay: Essential for engine cylinders (honing) to ensure oil retention.

At Dazao, we don't just hit the number on the chart; we orient the Lay to your part's functional movement.

Surface Roughness Parameters Explained (Ra, Rz, Rq & More)

The most significant mistake in modern engineering is the over-reliance on Ra (Roughness Average). While Ra is the industry's lingua franca,it is an averaging metric that often hides the truth.

What Is Ra in Surface Roughness? Definition, Formula and Limitations

Ra is the arithmetic average of all profile deviations from the mean line. excellent for general quality control because it's stable and repeatable.

Nevertheless, Ra remains unaware of what form the peaks take. A surface with sharp, needle-like peaks and a surface with rounded, hill-like peaks can have the Ra. The sharp peaks will destroy a mating plastic seal; the rounded ones will not.

What Is Rz and Why It Matters for Sealing Performance?

Rz measures the average distance between the five highest peaks and the five deepest valleys.

The Dazao Engineering Insight: For hydraulic parts, vacuum seals, and high-pressure fittings, only Rz matters. A single deep groove (a leak pathway) may let fluid slip past a seal.Ra would average that valley out and give you a pass, but the part will leak in the field.

Rq (RMS Roughness):When Sensitivity Matters More Than Averages

The Root Mean Square is more sensitive to occasional highs and lows than Ra.

The standard in the optical industry and for high-precision glass and mirror components.

Advanced Surface Roughness Parameters: Rsk (Skewness) and Rku (Kurtosis)

To help your design reach a high level of EEAT, consider the following.

Rsk (Skewness): This indicates whether the surface is more peak-dominant or valley-dominant.A negative skew (more valleys) is ideal for lubricated sliding surfaces because the valleys act as microscopic oil reservoirs.

Rku (Kurtosis): This measures the spikiness.A Kurtosis value of 3 is a Gaussian distribution. A value above 3 means the surface is abrasive and will lead to rapid initial wear (the break-in period).

Surface Roughness Chart (Ra, Rz, N Grades & Machining Methods)

(Below is the data core for Dazao's technical reference. Note the inclusion of the N-Grade and Cost Multipliers.)

ISO 21920 Surface Roughness Standard Explained

Most "Surface Roughness Charts" on the web are outdated, still referencing ISO 4287. At Dazao, we pride ourselves on being at the cutting edge of metrology standards. In 2021, ISO released ISO 21920 to replace the aging 4287.

Why the Shift?

Engineers built the old standard for an era of analog stylus meters. The new standard supports Optical Profilometry and digital data processing.

· Filter Settings (Cut-off): The new standard redefines how we calculate the "cut-off" length (λc). In the past, engineers often ignored the cut-off. This led to different measurements for the supplier and customer.

· Functional Focus: ISO 21920 links the numbers on paper to the part's real function. If your current supplier isn't ISO 21920, they are falling behind the global curve.

How Different Materials Affect Surface Finish ?(Aluminum, Steel, Titanium)

You cannot specify a Ra 0.4 on every material and expect the same results.

Aluminum (6061-T6, 7075): Managing Built-Up Edge and Smearing

Aluminum is soft and has a high thermal expansion coefficient. If the cutting tool is not "mirror-polished" and the RPM is not high enough, the aluminum will smear rather than cut.This creates a Built-up Edge (BUE), which ruins the surface finish. we use Diamond-Like Carbon (DLC) coated tools to achieve Ra 0.4 on aluminum without secondary polishing.

Stainless Steel (304, 316L): Overcoming Work-Hardening in Finishing

Stainless steel is an extremely durable material. If the tool stays on the surface for even a millisecond too long, the surface work-hardens.

It then becomes impossible to finish to a low Ra. We use high-pressure, through-spindle coolant to remove heat fast. This helps maintain a consistent N6 finish.

Titanium: Low-Modulus Challenges in Thin-Walled Aerospace Parts

Titanium is flexible. When the tool pushes against it, the material springs back rapidly. This makes achieving a fine Rz value incredibly difficult in thin-walled aerospace parts. We use specialized vibration-damping tool holders to counteract this chatter.

Surface Finish Cost vs Roughness (Ra 6.3 to 0.05 Explained)

There is a "Wall" at Ra 0.8 (32 µin).

Surface Roughness Cost Curve: Why Ra 0.4 Is Expensive

· From Ra 6.3 to 1.6: The cost increase is linear. It's mostly about feed rates and cycle time.

· From Ra 1.6 to 0.8: The cost curve starts to bend upward. We must introduce "Wiper" inserts, reduce tool life expectations, and perform mid-process inspections.

· Below Ra 0.4: The cost explodes. You are no longer "machining"; you are "finishing." This requires a separate setup on a grinding machine or manual labor by a master polisher.

How to Reduce Machining Cost with Functional Surface Finish Zoning?

Avoid defining a single overall surface finish for the whole part. we help our clients use Functional Zoning:

· Mating Surfaces: Ra 0.8

· Seal Grooves: Rz 3.2

· Exposed/Aesthetic Surfaces: Ra 1.6

· Internal/Hidden Pockets: Ra 6.3

By differentiating these zones, we've helped clients reduce their BOM (Bill of Materials) costs by up to 40%.

How Surface Treatments Affect Surface Roughness (Anodizing, Polishing, Blasting)

What happens after the CNC machine stops? Post-processing can either save or destroy your surface finish.

Bead Blasting: Often used to hide machining marks. However, bead blasting will increase the Ra of a finely machined part. If you have a Ra 0.8 finish and then bead blast it, you will likely end up with a Ra 2.0 matte finish.

Anodizing (Type II vs Type III): Hard anodizing (Type III) builds up a thick layer of aluminum oxide. This layer follows the original topography but adds its own "grain." Generally, you should assume a Ra increase of 10-20% after hard anodizing.

Electropolishing: The savior of the medical industry. It removes "micro-peaks" using an electrochemical process. This reduces the Ra and creates a chemically clean, smooth surface.

How Surface Roughness Is Measured (Tools & Methods)

If you can't measure it, you don't own it. Our quality lab is equipped with:

· Stylus Profilometers (Contact): For rugged, reliable Ra/Rz data on standard parts.

· Confocal Microscopy (Non-Contact): For delicate materials or when we need a 3D map of the surface (S-parameters).

· Visual Comparators: For rapid check-ins during the production run to ensure no tool wear has occurred.

How Feed Rate and Tool Radius Affect Surface Roughness?

Many engineers look at a surface roughness chart and assume the machine simply "outputs" that number. we know that surface finish is a mathematical result of tool geometry and motion.

Rt and Ra from Feed Rate and Nose Radius

For turning and milling, you can calculate the theoretical peak-to-valley height (Rt) using the feed rate (f). You also need the tool nose radius (r).

And the arithmetic average (Ra) is approximately:

The Dazao Engineering Insight:

To halve your Ra value, you have two choices:

· Reduce the feed rate (f) by half, which doubles your machining time (and cost).

· Increase the tool nose radius (r). However, a larger radius increases tool pressure and can cause "chatter" (waviness) in thin-walled parts.

This is where Dazao's master machinists earn their keep-balancing the radius and feed to hit your spec without blowing the budget.

Surface Finish Requirements by Industry (Aerospace, Medical, Hydraulic)

Different industries have hidden requirements that don't appear on a standard surface roughness chart.

Aerospace: Fatigue Life and Stress Risers

In aerospace (e.g., turbine blades or structural landing gear), a surface is never just a surface. A rough finish (Ra > 3.2) acts as a series of stress risers. Under cyclic loading, cracks initiate at the bottom of these microscopic valleys.

Dazao's Aerospace Protocol: We often utilize Shot Peening after machining. This method hits the surface with tiny spherical media.

It creates compressive residual stresses. These stresses seal valleys in the roughness profile. This can greatly extend fatigue life.

Medical: Biocompatibility and Bacteria Retention

For orthopedic implants (hip joints, bone screws), the Ra value is a matter of life and death.

· The Trap: If a surface is too smooth (Ra < 0.05), bone cells may not adhere (osseointegration).

· The Danger: If it's too rough (Ra > 0.8), the valleys can harbor bacteria that are resistant to sterilization.

· Dazao's Solution: We use Centrifugal Barrel Finishing to create a non-directional, isotropic finish. It meets strict medical Rz requirements.

Hydraulics: The "Seal-Killer" Surface

In hydraulic cylinders, the piston rod must be smooth enough to avoid wearing the seal. It must also be rough enough to hold a thin film of oil.

The Sweet Spot: An Ra of 0.2 to 0.4 µm is standard. But more importantly, you must control the Rmax. One single spike can tear a high-pressure polyurethane seal, leading to catastrophic fluid leaks.

Common Surface Finish Defects and How to Fix Them

When a part comes off the machine and doesn't meet the Dazao standard, we look for these four Surface Killers:

1.Chatter (Waviness):

· Appearance: Periodic waves or "tiger stripes."

· Cause: Lack of rigidity in the setup or harmonic resonance.

· Solution: Alter the spindle speed (SSV - Spindle Speed Variation) or use variable-helix end mills.

2.Tearing (BUE - Built-Up Edge):

· Appearance: A plucked or dull, sandpaper-like surface.

· Cause: Cutting speed is too low. the material is welding to the tool tip.

· Solution: Increase cutting speed (Vc) and switch to a high-lubricity PVD coating.

3.Feed Marks:

· Appearance: Visible threads on the part.

· Cause: Feed rate is too high relative to the nose radius.

· Solution: Use a Wiper insert, which has a small flat area on the cutting edge to iron out the feed marks.

4.Burnishing:

· Appearance: A shiny but smeared surface.

· Cause: The tool is dull and rubbing rather than cutting.

· Solution: Immediate tool change and check for work-hardening in the material.

Environmental Impact of Surface Finishing in Manufacturing

As a responsible manufacturer, Dazao also considers the sustainability of surface specs. High-precision finishing (Grinding, Lapping, Polishing) uses a lot of energy.

It also produces swarf. Swarf is fine metal dust mixed with coolant. Swarf is harder to recycle than standard CNC chips.

Our Advice:
By using Ra 1.6 instead of Ra 0.4 where it still works, you can cut the carbon footprint by about 25%. This is less machine time and less consumable waste.

3D Surface Roughness Parameters (ISO 25178 Explained)

The world is moving from 2D (Profile) to 3D (Areal) surface measurement. This is the ISO 25178 standard.

Sa (Areal Average Roughness): Instead of a single line, we measure a square area.

Sp (Maximum Peak): Essential for identifying "burrs" or high spots in 3D printed metal parts.

Sv (Maximum Valley): Essential for checking lubricant reservoirs.

At Dazao, we invest in White Light Interferometry (WLI). This helps us deliver full 3D surface maps for mission-critical parts.

Conclusion

The surface roughness chart is more than a set of numbers; it is a roadmap for engineering success.

We believe that transparency is the key to a successful partnership. By knowing that an Ra 0.8 finish costs more than an Ra 3.2 finish, you design better. You also design better when you know when to use Rz instead of Ra.

Our mission is to bridge the gap between "Digital Design" and "Physical Reality." Whether you are dealing with chatter on a titanium aerospace part, our engineering team can help.

We can also help you reduce the cost of an automotive housing.
