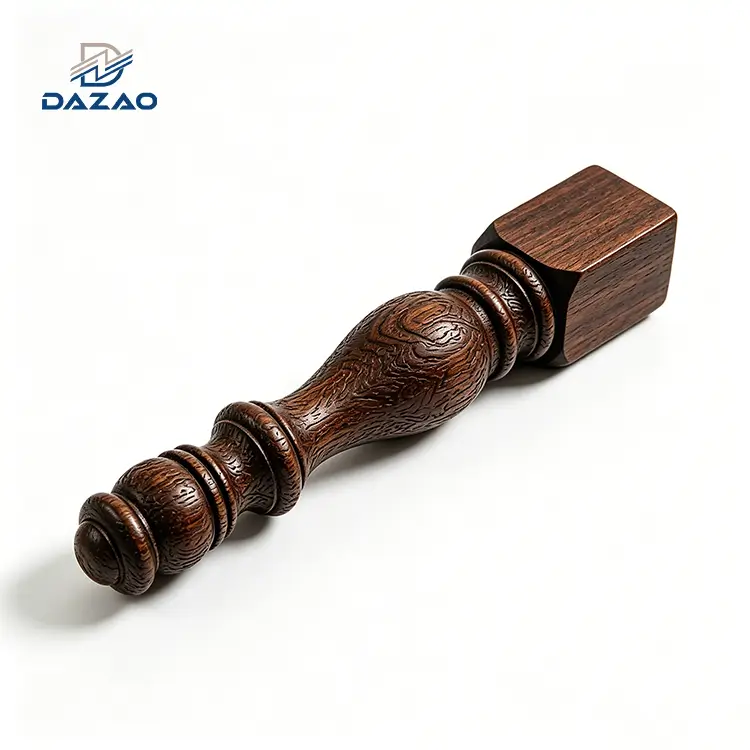

Precision 5 Axis CNC Machined Wooden Table Legs For Furniture Brands

Engineering Analysis and Technical Capabilities

Bridging the gap between traditional woodworking and aerospace-grade precision.

Our production line utilizes advanced 5-axis CNC routing to provide furniture brands with absolute dimensional consistency. Unlike traditional wood lathes, our process ensures that every precision wood part meets a ±0.03mm tolerance standard. We specialize in complex geometries, including tapered, fluted, and asymmetrical designs, specifically engineered for the rigors of international sea-freight and varied climates.

Comprehensive Technical Specifications

Data-driven manufacturing parameters for rigorous industrial quality standards.

Industrial Case Studies and Failure Prevention

Proven solutions derived from real-world cross-border supply chain challenges.

1. Thermal Expansion Mitigation (Europe): A 2,200-unit order faced a 17% cracking rate during Atlantic transit due to internal stress. Correction: We developed a proprietary CNC internal stress-relief micro-groove (0.8mm) to neutralize wood tension without compromising load capacity.

2. Grain Mismatch Resolution (North America): A brand reported a 23% return rate due to mismatched wood textures.

Correction: Implemented an AI-based raw material scanning system. CNC programming now groups timber by grain density and color before the first cut.

3. Structural Hardware Failure (Australia): Traditional glued-in nuts failed in 31% of units under load.

Correction: Shifted to CNC-milled undercut cavities for mechanical nut locking. Zero glue required; vertical pull-out strength increased by 42%.

Exclusive CNC Technology for Structural Integrity

Proprietary milling techniques that redefine wood component durability.

Proprietary CNC Stress-Relief Micro-Milling

Deep internal milling of "invisible" grooves allows for natural expansion and contraction during the 72-hour temperature/humidity swings in ocean containers, preventing surface splitting.

Integrated Glue-Free Mechanical Nut Locking

CNC precision-milling of stepped cavities mechanically locks metal inserts into the wood structure, preventing hardware loosening or stripping caused by adhesive failure in humid environments.

AI-Driven Texture Scanning and Path Optimization

Automated grain analysis ensures that every leg in a 4-piece set originates from aligned timber sections, meeting the aesthetic standards of high-end furniture collections.

Quality Assurance and Compliance Protocols

Multi-stage inspection ensuring 100% assembly readiness for overseas markets.

· Moisture Calibration: 100% digital MC testing to match the destination climate (e.g., lower MC for arid regions).

· Sea-Freight Simulation: 72-hour environmental chamber testing (temp/humidity cycling) for batch samples.

· Dimensional Verification: CMM and digital caliper checks on all CNC-milled mounting points and hardware bores.

· Compliance Documentation: Provision of Phytosanitary certificates and E0 formaldehyde test reports for customs clearance.

Sector Specific Applications and Use Cases

Versatile designs tailored for hospitality, residential, and outdoor environments.

High-End Residential

Precision walnut legs for premium dining and coffee tables.

Hospitality/Contract

Heavy-duty load-bearing legs for hotel desks and cabinetry.

Outdoor Furniture

Carbonized wood legs with anti-aging surface treatments for patio sets.

Commercial Office

Ergonomic and asymmetrical CNC legs for modern workstations.

Get A Quote for Wooden Table Legs

FAQs



01.How do you prevent wooden table legs from cracking during sea freight?

We mill 0.8mm internal stress-relief grooves using 5-axis CNC. This allows for natural expansion and contraction during the 72-hour temperature swings typical of ocean transit, reducing the failure rate to less than 0.6%.

02.Can you match the wood grain for a complete 4-leg set?

Yes. We utilize an AI-scanning and CNC grouping system. Raw timber is scanned before cutting, and the CNC nesting software ensures all four legs in a set share consistent grain patterns and color tones.

03.Are your wooden components compliant with US and EU environmental laws?

We use E0 and CARB Phase 2 compliant materials. We provide full documentation, including Phytosanitary certificates and formaldehyde emission reports, to ensure seamless customs clearance in the US and Europe.

04.What is the benefit of CNC-milled nut embedding over traditional gluing?

Glued nuts often fail due to wood shrinkage or humidity. Our CNC-milled mechanical locking system uses an undercut cavity that secures the hardware through geometry, increasing load-bearing pull-out strength by 42%.

05.What is your minimum order quantity (MOQ) for custom orders?

Our standard MOQ for wholesale production is 500 units. However, we support smaller trial runs for established furniture brands and provide rapid CNC prototyping within 3-5 working days.

06.Can you manufacture based on 3D CAD files or reverse-engineer samples?

We accept STEP, IGS, and DWG files. Our engineering team provides DFM (Design for Manufacturing) feedback within 24 hours to optimize wood utilization and reduce your per-unit cost.

Optimize your furniture supply chain with engineering-grade CNC precision.
Upload your 2D/3D CAD files (STEP, IGS, or PDF) for a detailed DFM evaluation and a technical quote within 24 hours.
