High Density Wood Machining Solutions for Audio Equipment

Engineered material density and structural stiffness for high-end acoustic systems.

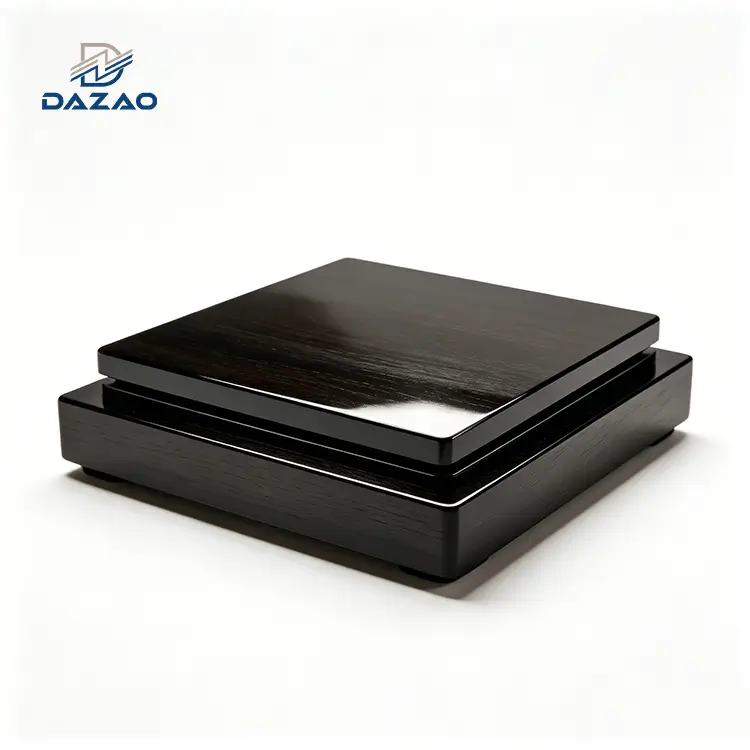

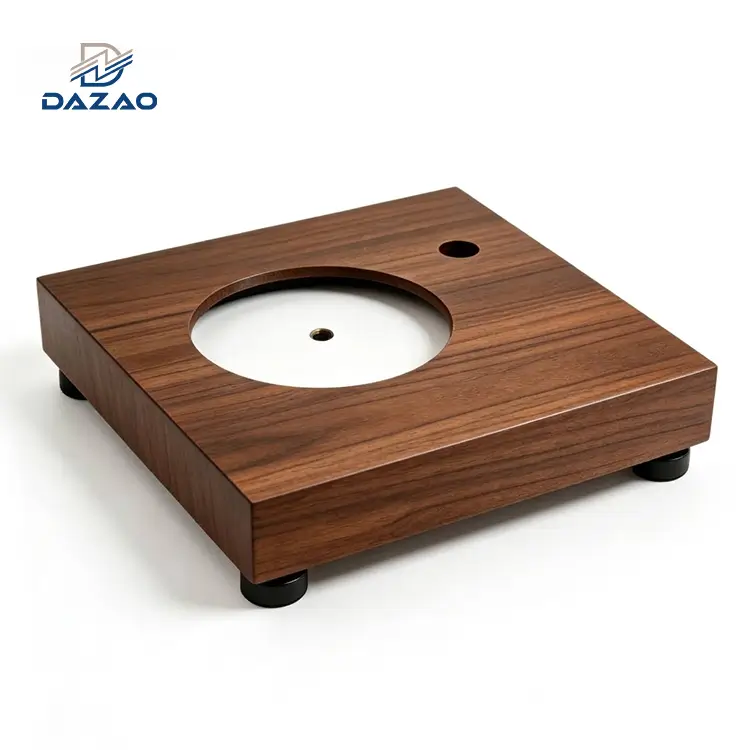

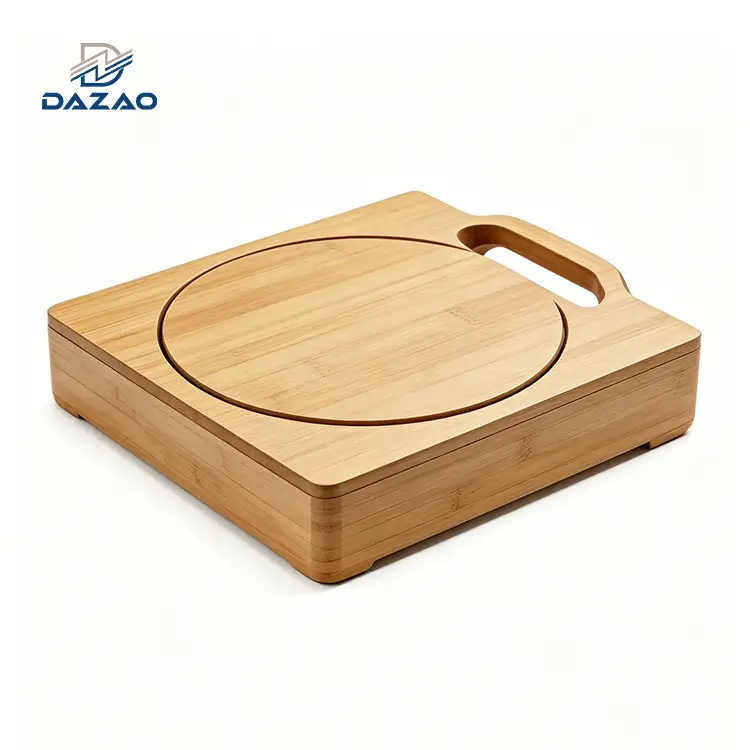

We provide specialized CNC machining service for high-fidelity turntable bases. We utilize advanced 5-axis machining centers to mill complex acoustic paths that traditional woodworking cannot achieve. By using high-density Acoustic MDF, solid American Black Walnut, and multi-layer Birch Plywood, we ensure every chassis provides a resonance-free platform for sensitive analog playback components.

Professional Grade Wood Audio Component Technical Specifications

Hard data and dimensional tolerances for precision mechanical integration.

Engineering Iteration Driven by Real World Audio Production Data

Refining manufacturing protocols through rigorous analysis of historical field performance.

Our current production protocol is built on resolving three critical failure points identified in previous large-scale export projects:

1. Eliminating Mid-Frequency Resonance

In a 500-unit European production run, solid-fill bases showed a +3dB noise floor. We responded by developing internal dovetail damping slots. These slots house high-viscosity butyl inserts, which decouple the motor vibration from the tonearm, reducing resonance peaks by 42%.

2. Regional Moisture Stabilization

Following an 800-unit shipment to North America where 12% of solid walnut bases experienced surface checks, we implemented Integrated Stress-Relief (ISR) grooves. By milling intermittent channels on non-visible surfaces, we break the internal grain tension, preventing deformation in low-humidity environments.

3. Mechanical Phase Accuracy

To prevent the 0.15mm tracking errors common in multi-setup machining, we utilize custom-engineered jigs for single-station boring. All critical holes are milled in one cycle, ensuring the bearing and tonearm remain perfectly phased.

Specialized Machining Technologies for Resonance and Stability Control

Utilizing 5-axis CNC capabilities to reach acoustic performance limits.

Integrated CLD Milling: Unlike surface-applied pads, our 5-axis CNC centers mill internal cavities that are press-fitted with damping media. This ensures permanent contact and consistent acoustic performance for the life of the product.

Climate-Specific Calibration: We calibrate the moisture content of every batch of solid timber to match the destination market (e.g., 6% for dry northern climates, 10% for tropical regions), minimizing the risk of warping during sea freight.

High-Speed Bore Finishing: All mounting apertures are finished with high-speed spindles to ensure a mirror-like internal surface, providing a perfect interference fit for high-end turntable bearings.

Industrial Applications for Precision Engineered Wood Enclosures

Versatile housing solutions for the professional audio and luxury electronics sectors.

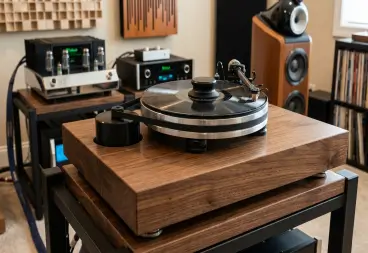

Audiophile Playback

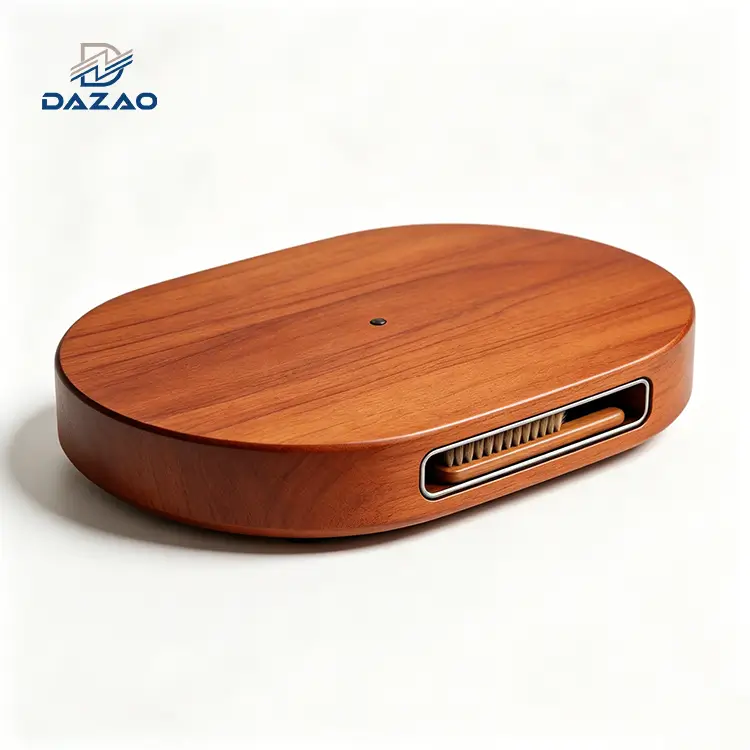

High-mass solid walnut bases for reference-grade belt-drive systems.

Professional Monitoring

Vibration-isolated birch plywood enclosures for studio environments.

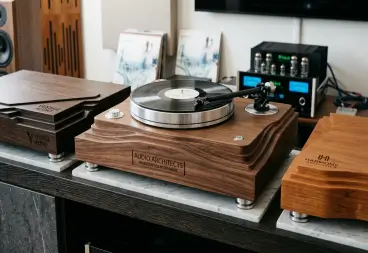

Luxury Hi-Fi Brands

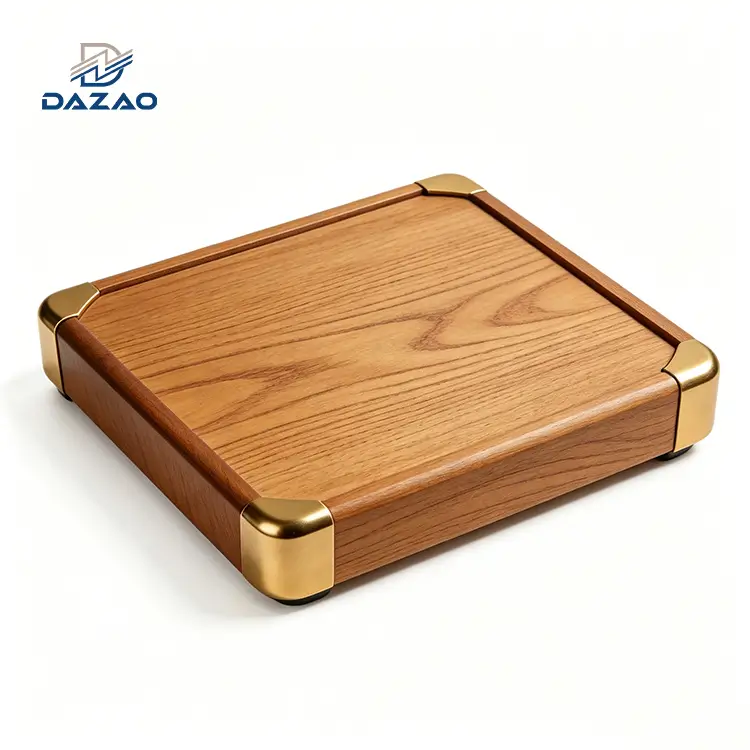

Branded plinths featuring CNC-milled logos and architectural contours.

Vintage Restoration

Accurate geometric replication for classic turntable chassis.

FAQs



01.How is solid wood stabilized for international shipping?

We use vacuum-kiln drying followed by a 72-hour stabilization period. During machining, we mill stress-relief slots on the underside of the plinth to interrupt grain tension, ensuring the product remains flat and crack-free during transit and regional climate shifts.

02.Can internal damping structures be modified for specific motor types?

Yes. Using our 5-axis CNC capability, we can adjust the depth, width, and pattern of the internal damping channels to target specific resonance frequencies generated by AC synchronous or DC brushless motors.

03.What is the benefit of single-setup machining for tonearm holes?

Most shops move the part between operations, introducing cumulative errors. We use a single-setup process where the bearing hole and tonearm mount are bored simultaneously. This keeps coaxiality within ±0.02mm, which is essential for maintaining correct stylus geometry and reducing record wear.

04.Do you provide support for B2B branding and finishing?

We offer full integration services, including CNC-milled branding, laser etching, and various architectural finishes such as high-gloss piano lacquer or matte wood wax, all performed in-house under our ISO 9001 quality system.

05.What are the typical lead times for bulk production?

Standard production cycles for a 300-unit order are 15-22 days following prototype approval. We offer expedited 12-day cycles for established partners using standard material stocks (MDF or Walnut).

06.Are the materials safe for EU/US consumer markets?

Yes. Every batch of timber and adhesive is verified to meet CARB Phase 2 and REACH standards. We provide material certificates and formaldehyde emission reports with every shipment to assist in customs clearance.
