In the world of CNC machining, stainless steel is like a temperamental superstar. It looks great, resists rust, and is strong. This makes it a top choice for medical devices, aerospace parts, and high-end electronics.
Many machinists have worked on the shop floor. If you ask them, they will tell you that machining stainless steel is hard.
A common mistake is assuming that "metal is metal" and applying aluminum machining logic to stainless steel. The result is often disastrous-broken tools, warped parts, delayed projects, and rapidly escalating costs.
As an engineer with over 20 years of experience, I have seen many projects fail. This often happens because people underestimate the difficulty of machining stainless steel.
In this article, I will not only say it's hard-I will explain why. I will look at it from a physical and metallurgical view. I will also show how professional DFM (Design for Manufacturability) strategies can help you tackle these challenges.
The "Hidden" Science: Why Stainless Steel Behaves Differently?
To solve a problem, you first need to understand your opponent. Stainless steel is not difficult to machine simply because it's "hard" (titanium is harder). The real issue is that its combination of physical properties is extremely unfriendly to the cutting process.
The Nightmare of Work Hardening
When machining aluminum or brass, the material shears away cleanly. Stainless steel behaves differently. Its crystal structure strengthens under plastic deformation.
Think of kneading dough-the more you work it, the tougher it becomes. If the cutting tool stays on the surface, rubs instead of cutting, or moves too slowly, the material hardens right away.
The next pass no longer cuts normal steel-it hits a hardened "armor layer," leading to rapid tool wear or catastrophic tool failure.

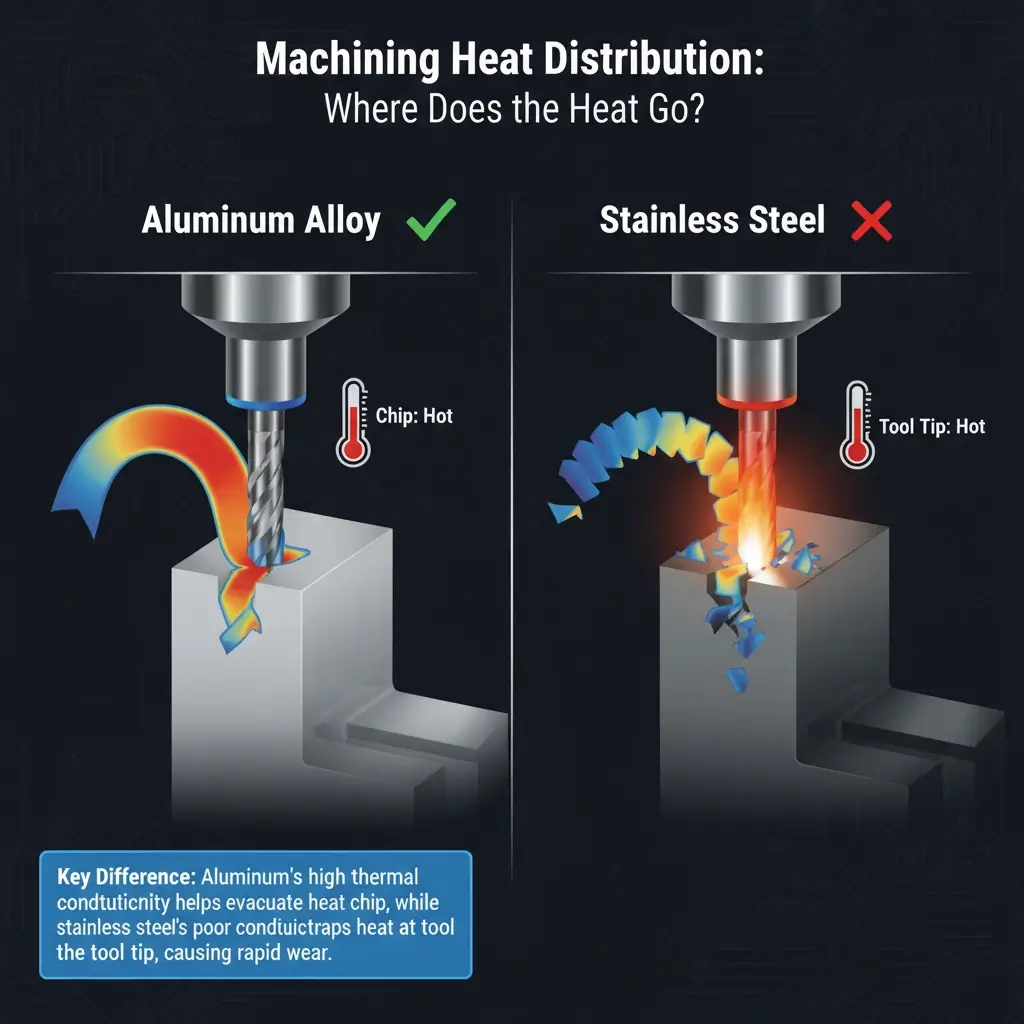

Low Thermal Conductivity: Where Does the Heat Go?
This is a classic physics trap. When machining aluminum, the chips carry away most of the heat. This the tool and workpiece cool.
Stainless steel, however, has low thermal conductivity-about one-tenth that of aluminum. The heat generated during cutting cannot dissipate and cannot escape with the chips. Instead, it concentrates at the cutting edge.
Temperatures at the tool tip can exceed 1000°C, softening tool coatings and causing premature tool failure.
High Ductility and Gummy Chips
Stainless steel is notoriously "gummy." Under a microscope, you'll see that the material tears rather than shears cleanly. Chips tend to stick to the cutting edge, forming Built-Up Edge (BUE).
BUE degrades surface finish, alters tool geometry, and significantly reduces machining accuracy.
Pro Tip:
The key to fighting work hardening is constant motion. Never allow the tool to dwell on the surface. Use sufficiently aggressive feed rates so the tool is cutting, not rubbing.

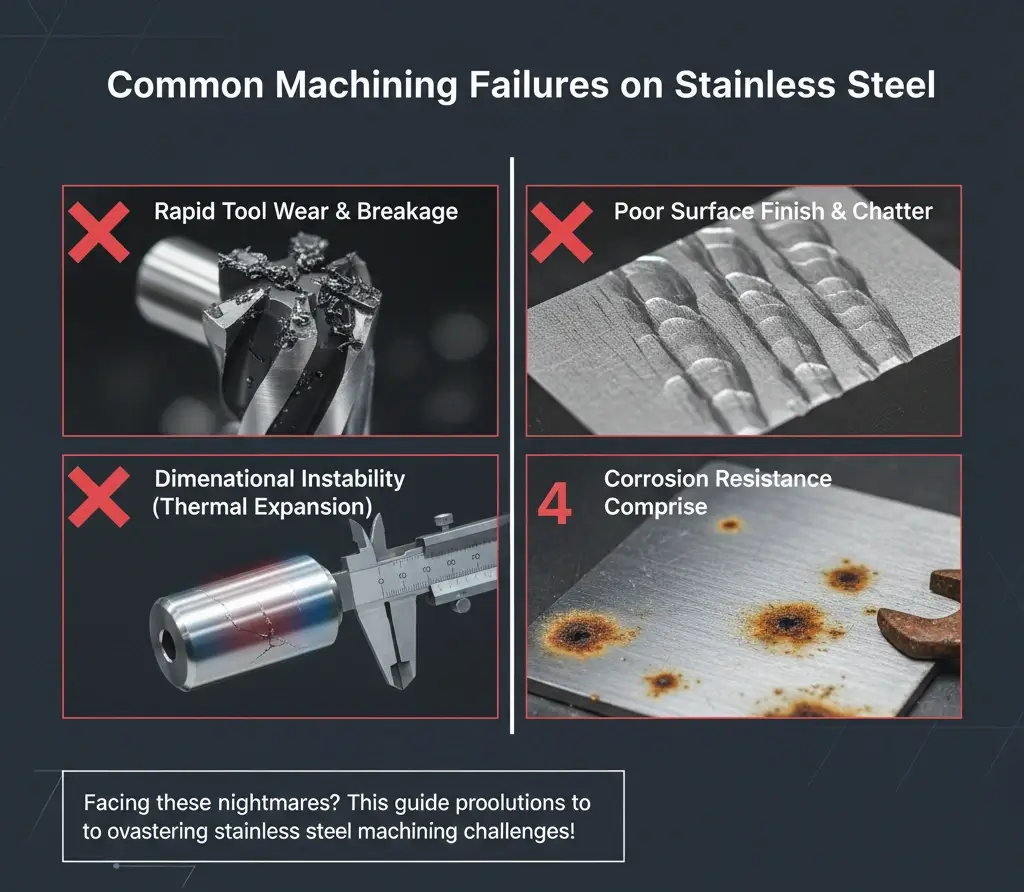

5 Common Failures in Stainless Steel CNC Machining
If your supplier lacks experience, you may encounter the following issues upon delivery. These are not random quality problems-they are direct consequences of stainless steel's material behavior.
1. Rapid Tool Wear and Breakage
High heat and work hardening dramatically shorten tool life. Frequent tool changes or drifting dimensions are strong indicators of excessive tool wear.
2. Poor Surface Finish and Chatter
High cutting forces make stainless steel prone to chatter. Insufficient machine rigidity or unstable fixturing results in visible vibration marks, poor aesthetics, and compromised sealing performance.
3. Dimensional Instability from Thermal Expansion
Stainless steel expands significantly under heat. A part may measure in tolerance during machining, only to shrink out of tolerance after cooling to room temperature.
On the shop floor, this happens more often than people expect.
We once had a 304 enclosure that looked perfect during in-process inspection. After it cooled, the CMM told a different story.
4. Compromised Corrosion Resistance
Yes-even stainless steel can rust. If someone uses carbon-steel tools or fixtures, microscopic iron particles can contaminate the surface. Months later, rust appears and damages the passive layer.
Pro Tip:
Always ask your supplier: "Do you use dedicated tooling for stainless steel?"
Cross-contamination is the number-one cause of post-delivery corrosion.
Many of these failures are avoidable with proper DFM review before machining. At Dazao, our engineers flag these risks during quotation-before they turn into cost overruns.
Grade Wars: 304 vs. 316 vs. 17-4 PH
Material selection is always a balance between performance and cost.
304 / 304L – The Industry Standard (and a Trap)
Overview: The most widely used austenitic stainless steel with good corrosion resistance.
Challenge: Extremely prone to work hardening.
Recommendation: Suitable for enclosures and brackets, but never underestimate its machining difficulty just because it's common.
316 / 316L – Superior Corrosion Resistance, Higher Cost
Overview: Contains molybdenum (Mo), offering excellent corrosion resistance for marine and medical environments.
Machining Difficulty: Harder than 304. Molybdenum increases abrasiveness, reducing tool life by roughly 20–30%.
17-4 PH – A Machinist's Friend?
Overview: A martensitic precipitation-hardening stainless steel.
Machining Reality: Despite its high strength, it often machines better than 304 in certain conditions. Chips break more easily and are less gummy.
Recommendation: For high-strength, complex parts, 17-4 PH is often a better choice than 304.
How We Conquer the Challenge: Expert Machining Strategies?
To achieve a yield rate over 99% in stainless steel machining, you need strong equipment and smart process control.
Tooling Selection: Carbide and Advanced Coatings
High-speed steel is not an option. We use micro-grain carbide tools. These tools have multi-layer coatings like TiAlN. These coatings help with heat and keep lubrication at high temperatures.
High-Pressure Coolant (HPC) Is Non-Negotiable
A few drops of coolant won't work. We use HPC systems exceeding 1000 PSI, aimed directly at the cutting edge.
· Breaks gummy chips
· Instantly removes heat from the tool tip
Rigid Setup and Climb Milling
We primarily use climb milling, where the tool engages the material at maximum thickness and exits at minimum thickness. This minimizes surface rubbing and reduces work hardening.
DFM Tips: Designing Stainless Steel Parts to Reduce Cost
Smart design choices can reduce machining costs by up to 30%.
Avoid Deep Cavities and Thin Walls
Deep holes (L/D > 5:1) are extremely difficult in stainless steel chip evacuation issues. Thin walls vibrate easily under cutting forces, making tight tolerances hard to achieve.
Internal Corner Radius Recommendations
Avoid sharp internal corners. If the corner radius exactly matches the tool radius, cutting forces spike.
Best practice:
Make internal radii a bit larger than standard tool sizes. For example, use R3.2 mm instead of R3.0 mm. This will help with smoother tool engagement.
Specify Tolerances Wisely
Stainless steel machines slowly. Applying ±0.01 mm tolerances to non-critical features can double machining time. Use tight tolerances only on functional interfaces.
Pro Tip:
For text or logos, choose laser marking or post-processing instead of CNC engraving. Fine engraving tools break easily and dramatically increase cycle time.
If you are not sure if your design works well for stainless steel, a quick DFM check can help. This check can often lower machining costs by 20–30%.
How to Choose the Right Stainless Steel CNC Partner?
Price alone is not the metric. Before sending an RFQ, evaluate these three factors:
Machine Rigidity: Heavy-duty machines are essential. Light machines produce chatter.
Special Alloy Experience: If stainless steel accounts for only 5% of their workload, proceed with caution.
Thermal Control & Inspection: Temperature-controlled rooms and CMM inspection are critical for managing thermal expansion.
Conclusion
Stainless steel CNC machining is a true engineering battle-driven by physics, heat, and material behavior. But with the right tooling, cooling strategies, and DFM principles, it becomes entirely manageable.
Don't let machining failures delay your project. If you need a partner who can meet tolerances, surface finish, and lead time, reach out to us today. Upload your CAD files and receive a free DFM and accurate quotation from our engineering team.
Frequently Asked Questions
1. Why is stainless steel harder to machine than aluminum?
A: Stainless steel has low thermal conductivity, high ductility, and work-hardens instantly if the tool rubs. Aluminum dissipates heat efficiently and shears easily.
2. What coolant works best for stainless steel CNC machining?
A: A water-soluble emulsion with high lubrication works well for chip control and heat removal. High-pressure coolant systems apply it.
3. Is 304 or 316 harder to machine?
A: 316 is generally harder molybdenum content, which increases toughness and abrasiveness, accelerating tool wear.
