In plastic manufacturing, flow marks in injection molding are among the most common yet frustrating surface defects. While they don't usually affect the part's structural strength, they can seriously impact the visual appearance and perceived quality of a product. For your, visible flow marks often mean rework, rejection, or costly production delays.
Understanding what causes flow marks and how to prevent them is critical for achieving consistent quality and cost-effective production. This guide explains their origins, prevention methods, and what your should look for when evaluating suppliers.
What Are Flow Marks in Injection Molding?
Lorem ipsum dolor sit amet consectetur adipisicing elit.
During the injection molding process, molten plastic is injected under pressure into the mold cavity, fills the part geometry, and cools to solidify. If the flow of material is uneven or cooling occurs at different rates across the surface, it creates visible wavy lines or circular streaks known as flow marks (also called flow lines).
These marks often appear near the gate - the entry point of the molten plastic - and radiate outward like rings or ripples. Though they rarely affect the part's functionality, flow marks reduce the surface gloss and make products appear defective, especially in consumer goods, automotive interiors, or visible housing components.
In simple terms, flow marks occur when the molten material cools and solidifies unevenly while filling the mold cavity.
The Main Causes of Flow Marks
Flow marks typically result from a combination of material, machine, and mold design factors.
Each element can contribute to uneven cooling or inconsistent material flow inside the mold.
Material-Related Causes
Low melting temperature
When the material temperature is too low, the flow rate decreases, causing the resin to cool before it fully fills the cavity.
01
Low Melt Flow Index (MFI)
Materials with poor flowability are more prone to forming streaks or lines.
02
Moisture or poor lubrication
Moisture turns into vapor, forming voids or trapped air pockets, while lack of lubrication increases friction in the mold cavity.
03
Uneven pigment dispersion
Uneven mixing or cooling can cause visible color bands, emphasizing the flow marks.
04
Key takeaway: Keeping the resin dry and maintaining an optimal melting temperature ensures smooth material flow.
Machine-Related Causes
Machine settings strongly influence how evenly the plastic flows and cools.
Low injection speed and pressure
Insufficient injection pressure or injection speed allows parts of the molten plastic to cool too soon.
01
Uneven mold temperature
A cold mold surface causes premature solidification, resulting in waves or dull marks.
02
Improper nozzle or barrel temperature
If the nozzle is cooler than the melt, plastic may partially solidify before injection.
03
Short cycle time
Rapid cycling without adequate cooling leads to unstable mold temperatures.
04
Solution: Balance temperature, pressure, and speed parameters to maintain consistent flow behavior.
Mold Design-Related Causes
Poor mold design is often the root cause of persistent flow marks.
Non-uniform wall thicknesses
Thick areas cool slower than thin ones, creating temperature gradients that result in flow lines.
Small gate or runner size
Restricted flow reduces pressure and temperature inside the mold.
Inadequate venting
Trapped air pockets create local heat buildup and flow disruptions.
No cold slug well
Without a proper cold slug trap, semi-solid plastic can enter the cavity, disturbing material flow.
Sharp corners and poor transitions
These cause turbulence and irregular flow patterns.
Rule of thumb: A well-designed mold should ensure smooth material flow, balanced cooling, and proper venting.
How to Prevent Flow Marks in Injection Molding?
Eliminating flow marks requires optimizing both process parameters and mold structure.
Below are proven strategies to minimize the problem.
Optimize Pressure and Speed
Increase back pressure and holding pressure to ensure the resin compacts evenly.
Avoid excessive pressure, which can create other injection molding defects like jetting or flashing.
Maintain steady injection speed to prevent temperature drops in the molten flow.
Use multi-stage injection (slow–fast–slow) to balance filling speed and pressure.
Goal: Achieve a smooth, stable flow that completely fills the mold cavity before cooling begins.
Control Temperature Settings
emperature is one of the most critical parameters in avoiding flow marks.
Set the barrel temperature gradually higher from rear to front.
Maintain consistent mold temperature across all areas; cold molds cause premature cooling.
Keep the nozzle temperature slightly above the melt temperature (about +6°C).
Use separate temperature controls for different zones to reduce uneven heating or cooling.
Start with the material's recommended temperature range, then fine-tune through testing and observation.

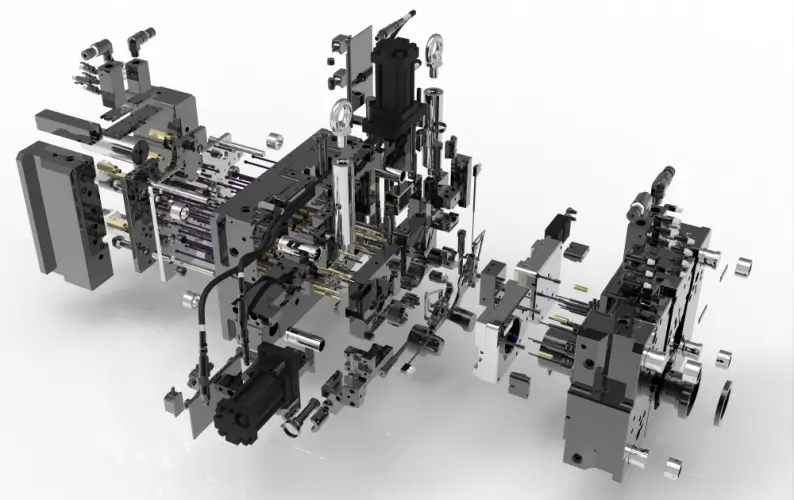

Improve Mold Design
Maintain uniform wall thickness wherever possible.
Add cold slug wells at the runner ends to capture solidified material.
Design proper venting channels to release trapped gases.
Use rounded corners and fillets instead of sharp edges to improve flow.
Optimize gate and runner diameters for steady flow without restricting pressure.
Tip: Always ask your supplier whether mold flow analysis (MFA) was performed before mold fabrication.
Manage Materials and Train Operators
Ensure all materials are properly dried before processing.
Add flow-enhancing additives or lubricants when necessary.
Train operators to monitor cycle time, lubrication, and temperature stability.
Use smart process monitoring to track real-time pressure and temperature curves for quality consistency.
How to Differentiate Flow Marks from Other Defects?
|
Defect Type |
Visual Characteristics |
Primary Cause |
Corrective Action |
|
Flow Marks |
Wavy or circular streaks near gates |
Uneven cooling or flow |
Adjust temperature and pressure, improve mold design |
|
Sink Marks |
Surface dents or depressions |
Thick wall cooling slower |
Reduce wall thickness, increase holding pressure |
|
Short Shots |
Incomplete filling |
Low pressure or flow blockage |
Raise injection pressure or temperature |
|
Air Pockets |
Internal voids or bubbles |
Poor venting |
Add vents or improve air release |
|
Jetting Marks |
Snake-like flow pattern |
Excessive injection speed |
Slow initial injection speed or change gate angle |
Understanding the difference helps engineers and your identify root causes faster and prevent repeated defects.
Advanced Methods and Modern Solutions
Our using technology to prevent common injection molding defects and improve production stability:
Mold Flow Simulation
Tools like Moldflow or Autodesk Simulation can predict resin behavior, cooling rates, and air traps before manufacturing begins.
Hot Runner Systems
Keep molten plastic at a stable temperature to prevent premature solidification and cold slugs.
AI Process Control
Machine learning algorithms can automatically adjust injection parameters based on live sensor data.
High-Flow Materials
Choosing resins with better flowability or adding modifiers helps maintain consistent flow rate.
Design Optimization
Smooth transitions, fillets, and balanced wall thicknesses reduce internal stress and improve surface finish.
Our recommendations
Preventing flow marks starts with supplier evaluation
Request a mold flow analysis report during the design phase.
Work with suppliers who use temperature and pressure monitoring systems.
Perform random batch inspections to ensure consistency across production runs.
Define acceptable visual standards in the quality agreement.
Verify mold maintenance frequency and records.
A reliable supplier will not only fix visible defects but also optimize the process to prevent them from happening again.
Key Takeaways
Flow marks are a surface-level symptom of deeper process imbalance - between temperature, pressure, and mold design.
To eliminate them:
1.Maintain proper melt and mold temperature.
2.Control injection speed and pressure consistently.
3.Design molds with smooth flow paths and venting.
4.Monitor process parameters with precision.
5.Train operators and engineers for proactive process control.
Conclusion
Turning Defects into Design Excellence
Flow marks may seem like a small issue, but they often determine whether a product is seen as premium or defective.
For Dazao, mastering flow mark prevention is not just about surface quality - it's about efficiency, brand reputation, and long-term trust.
Partnering with a supplier who understands injection molding defects and has the technical expertise to control them is key to achieving high-quality, repeatable production.
Get Your Defect Free Injection Molding Parts from Dazao
Partner with Experts Who Understand Your Quality Goals
We help your (OEM) prevent flow marks, sink marks and short shots through better mold design and process control.
Talk to our engineering team to see how we can improve your next molding project.
Frequently Asked Questions
We are always here, if you have any questions, you can consult us.
Q1: What are flow marks in injection molding?
+
-
A1: Flow marks are wavy or circular streaks that appear on plastic parts when molten plastic cools unevenly during injection molding. They are surface-level defects that mainly affect the appearance.
Q2: What causes flow marks on molded parts?
+
-
A2: Flow marks are usually caused by low mold temperature, inconsistent injection speed and pressure, or uneven wall thicknesses in the mold design. Moisture and trapped air pockets can also contribute.
Q3: How can flow marks be prevented?
+
-
A3: To prevent flow marks, optimize injection speed and pressure, maintain consistent mold temperature, use uniform wall thicknesses, and ensure proper venting in the mold design.
Q4: Are flow marks the same as sink marks or short shots?
+
-
A4: No. Sink marks are small surface depressions caused by uneven cooling in thick sections, while short shots occur when the mold cavity is not completely filled. Flow marks are visual streaks on the surface.
Q5: How do you ensure defect-free injection molded parts?
+
-
A5: You can request a mold flow analysis report from us, verify the quality inspection report, and select a partner with experience in controlling injection molding defects such as flow marks, sink marks, and jetting.
