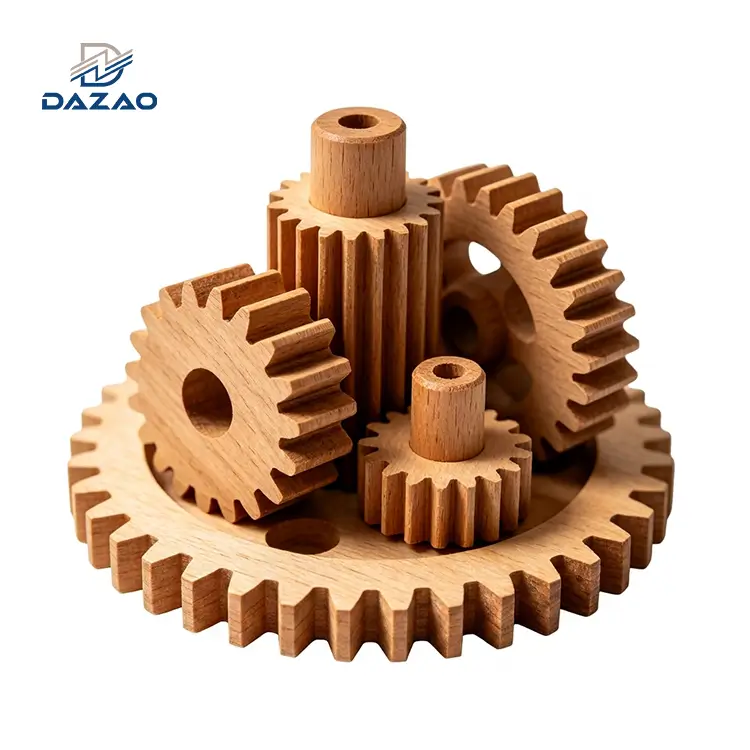

Precision CNC Wooden Gears And Mechanical Wood Gear Sets

Technical Capabilities in CNC Wood Gear Machining

Bridging the gap between traditional woodworking and high-precision mechanical engineering.

The production of CNC Machined wooden gears requires rigorous control over grain orientation and hygroscopic expansion. Unlike standard laser-cut components which suffer from charred tooth flanks and taper-induced mesh interference, our 5-axis milling process ensures that the pitch circle, center bore, and keyway are perfectly concentric. This eliminates rotational vibration and mechanical lag in complex gear train assemblies.

Mechanical Specifications and Material Data Sheets

Quantitative standards and tolerance controls for professional procurement.

Reliability Validation through Engineering Failure Analysis

Real-world durability testing and structural optimization based on field data.

To ensure procurement reliability, we have optimized our processes based on three critical field failure post-mortems:

1.Eliminating Mesh Interference: A 20,000-unit STEM kit order previously failed due to 0.12mm variances in laser-cut profiles. We transitioned to 5-axis CNC milling with parametric modeling, achieving 100% assembly pass rates for all precision wood gear sets.

2.Surface Durability Upgrade: 8,000 clock gears experienced 22% wear failure in high-torque environments. We developed a vacuum impregnation process that forces hardeners into the wood fibers, extending component service life by 300%.

3.Hygroscopic Expansion Control: Large 600mm decorative gears warped during ocean freight. We implemented hidden stress-relief slots and six-side moisture barriers, maintaining moisture content within 1% variance to prevent deformation.

Proprietary CNC Woodworking and Surface Hardening Processes

Advanced thermochemical treatments and structural layouts for extended life cycles.

· Single-Setup Milling: Pitch profiles and center bores are machined in one clamping operation. This eliminates accumulated error, ensuring concentricity within 0.03mm.

· Vacuum-Impregnated Polymerization: We utilize vacuum pressure to infuse food-grade resins into the wood pore structure, increasing density and hardness for light-load transmission applications.

· Root Fillet Optimization: Tooth root geometries are optimized via FEA (Finite Element Analysis) to reduce stress concentration, preventing shear failure under high torque.

Industrial Applications for Precision Wood Gear Components

Versatile engineering solutions across education, horology, and architectural sectors.

STEM Educational Equipment

High-durability gear trains for mechanical physics demonstrators and robotics kits.

Horological Instruments

Precision movement components for high-end wooden clocks and astronomical models.

Kinetic Architectural Installations

Large-scale synchronized gear systems for commercial displays and kinetic wall art.

Food Processing Environments

Non-contaminating, food-grade gears for light-load conveying and packaging machinery.

Get A Quote for Wooden Gears

FAQs





01.Can CNC wooden gears replace plastic or nylon gears in light-load applications?

Yes. When treated with our vacuum-impregnation process, wood gears offer high strength-to-weight ratios and natural vibration damping. They are suitable for STEM equipment, medical simulators, and consumer electronics where low noise and non-conductivity are required.

02.How is moisture-induced warping prevented in mechanical wood components?

We stabilize wood to 6%–8% moisture content and machine internal stress-relief slots. Each batch undergoes 72-hour climatic chamber testing to simulate ocean freight conditions, ensuring dimensional stability upon arrival.

03.What is the standard MOQ for industrial wooden gear sets?

For small diameter gears (under 100mm), the standard MOQ is 1,000 units. For large architectural or decorative gears (up to 1200mm), we accept low-volume orders starting at 50 units. Prototyping is available for qualified inquiries.

04.Are your wood materials compliant with international import regulations?

Absolutely. We provide FSC-certified timber and all necessary phytosanitary certificates. Our coatings are FDA-compliant for food contact and ASTM-certified for toy safety, ensuring smooth customs clearance for North American and EU markets.

05.Can you reverse engineer gear profiles from a physical sample?

Yes. We use 3D laser scanning and CMM data to create accurate CAD models. We then calibrate the parameters to standard metric modules to ensure 100% mesh compatibility with your existing mechanical hardware.

06.What surface finishes are available for high-torque applications?

For functional gears, we recommend our specialized low-friction sealants which reduce tooth-to-tooth drag. For decorative requirements, natural oil rubs, matte lacquers, and carbonized finishes are available without compromising dimensional accuracy.

Optimize your mechanical systems with precision CNC engineering.
Upload 2D/3D CAD files (STEP, IGS, or SolidWorks) for a technical DFM review.

Our engineers provide detailed quotations and tolerance analysis within 24 hours.
