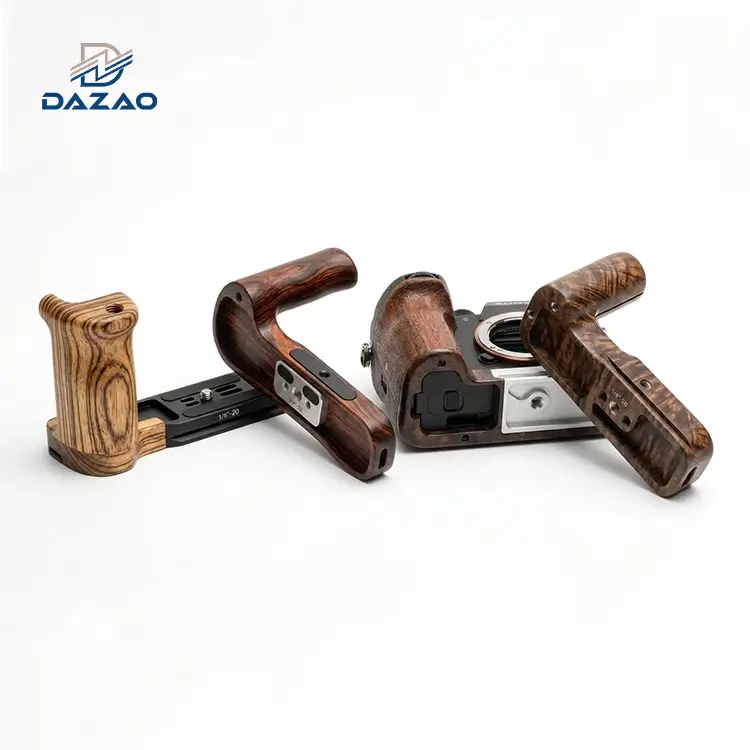

5-Axis CNC Wooden Camera Grip Engineering and Precision Wood Handle Production

Engineering-grade tactile stability and dimensional accuracy for professional cinematography rigs.

Our production facility integrates advanced CNC machining services to manage complex geometries and strict mechanical requirements for high-end optical accessories. We focus on neutralizing the inherent instability of timber to provide a reliable interface for professional filmmakers.

Core Engineering Features:

Tolerance Precision: Mechanical interfaces maintained at ±0.02mm for seamless cage integration.

Climate Calibration: Region-specific moisture adjustment (5%-10%) prevents timber expansion or contraction.

Material Certification: Professional grade Black Walnut, Rosewood, and Maple with FSC compliance.

Structural Integrity: Zero-glue mechanical lock inserts eliminate thread stripping in high-torque environments.

Ergonomic Uniformity: 100% profile consistency via 5-axis milling from digitized 3D hand molds.

Rapid Fulfillment: Standard batch delivery in 8–10 days; complex custom projects in 15 days.

Wooden Camera Grip For Dslr Mirrorless Camera Cage

Industrial Wood Engineering Solutions Based on Real World Performance Data

Iterative technical refinements derived from field failure analysis and large-scale deployment.

Our expertise in manufacturing high-precision CNC wood parts allows us to address the unique challenges of timber stability in professional photography environments. By analyzing historical field data, we have engineered out common failure points like insert loosening and environmental cracking.

Dovetail Mechanical Lock System for Copper Inserts

To address the 29% failure rate of traditional adhesive-bonded nuts in maritime transit, we developed a zero-glue mechanical lock. By milling a trapezoidal dovetail cavity, the serrated copper insert is permanently anchored, increasing vertical pull-out resistance by 370% compared to epoxy methods.

One-Setup 5-Axis Surface Profiling

Manual sanding introduces a ±1.2mm variance in grip thickness. Our protocol utilizes 5-axis CNC centers to mill the entire ergonomic surface in a single setup. This ensures a contour tolerance of ≤±0.05mm, providing identical tactile feedback across thousands of units for brand consistency.

Hidden Stress-Relief Channels and Moisture Level Alignment

Wood fractures often occur during intercontinental shipping. We incorporate 0.6mm non-visible relief grooves to disrupt internal stress propagation. Simultaneously, we calibrate raw material moisture content to match the destination climate (e.g., 5% for arid regions like Australia, 10% for tropical zones).

OEM custom wooden camera grip manufacturer China

CNC Machining Specifications and Technical Performance Standards

Quantitative data ensuring mechanical compatibility with professional-grade camera enclosures.

Technical Parameter	Engineering Standard
Material Selection	American Black Walnut, Brazilian Rosewood, African Mahogany
Boring Accuracy	±0.02mm for 1/4"-20 and 3/8"-16 mounting points
Profile Tolerance	±0.05mm across complex ergonomic curvatures
Mounting Hardware	Arri Rosette, Arca-Swiss, Cold Shoe, NATO Rail Integration
Internal Moisture	Calibrated to 5% - 10% based on ISO climate zones
Surface Roughness	Ra 0.8 achieved through high-speed CNC finishing
Compliance	FSC, CARB Phase 2, REACH, and RoHS compliant

Custom engraved wooden camera grip with logo

Industrial Quality Control and Environmental Stress Testing Protocols

Rigorous multi-stage verification to ensure zero-defect delivery for global supply chains.

· Raw Material Profiling: Moisture and density verification of every timber lot before CNC processing.

· Coordinate Measuring Machine (CMM) Inspection: 100% verification of battery door clearance and mounting hole concentricity.

· Thermal Cycling Simulation: 72-hour environmental chamber testing to simulate ocean freight temperature extremes.

· Torque Resistance Testing: Mechanical pull-testing of all threaded inserts to ensure field reliability.

Ergonomic Wooden Camera Grip With Cold Shoe Mount

Professional Deployment Scenarios for CNC Wood Camera Accessories

Optimized components for cinematography, studio broadcasting, and outdoor media production.

Cinema Rig Integration

High-mass side grips for 8K camera cages requiring maximum stability.

Vlogging and Handheld Video

Lightweight top handles with integrated cold shoe mounts for accessories.

Mirrorless Retro Customization

Ergonomic L-shaped grips for Sony, Fujifilm, and Canon systems.

Gimbal and Stabilizer Extensions

Precise Arri rosette handles for dual-handed stabilizer operation.
