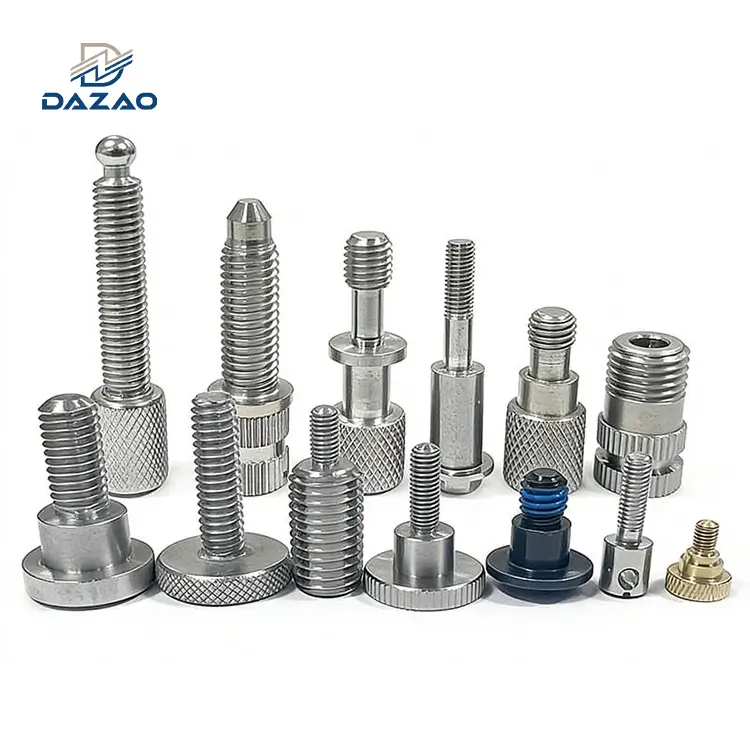

Precision Stainless Steel Special Screw CNC Turning Service

Product Overview and Multi-Axis Machining Capabilities

Eliminating secondary tooling fees while delivering micrometric accuracy directly from raw bar stock.

Dazao Machinery processes non-standard fastener geometries directly from bar stock using multi-axis turn-mill centers. This approach eliminates mold investment, supports low-volume orders, and maintains dimensional accuracy unattainable through cold heading.

Our facility processes 304, 316, and 316L stainless steel bar stock into specialized stainless steel machined components, including captive screws, stepped shoulder screws, knurled thumb screws, and proprietary security drive screws. Thread profiles range from metric M2 to M12 with pitch error controlled to ISO class 6g tolerances.

Field Failure Analyses and Root-Cause Engineering Correctives

How real-world mass production failures shaped our zero-defect machining protocols.

To eliminate hidden failure modes in non-standard fasteners, Dazao built its manufacturing standards around actual production failure root-cause analysis:

Telecom Cabinet Captive Screw Retention Failure

· Failure Context: A telecommunications enclosure panel utilized custom captive screws that detached from the sheet metal panel during field maintenance. This caused a 30% rework rate during initial installation.

· Root Cause Analysis: Machining was performed strictly to nominal thread undercut drawing dimensions without factoring in total sheet metal panel thickness plus countersink chamfer tolerances. The thread relief gap was insufficient for complete axial disengagement.

· Corrective Action Protocol: Implemented a mandatory panel-parameter verification step during design review. Undercut length and neck shank diameter are calculated against actual customer panel thickness and hole chamfer specs. Every initial sample undergoes physical panel test-fitting to verify complete disengagement without panel detachment before mass turning.

Medical Instrument Shoulder Screw Axis Alignment Drift

· Failure Context: Stepped alignment screws used as pivot shafts in a medical diagnostic scanner caused mechanical binding during assembly, stopping prototype qualification.

· Root Cause Analysis: Processing the smooth shoulder shaft and threaded tail in separate lathe operations introduced a secondary clamping error, causing total runout to exceed 0.03mm.

· Corrective Action Protocol: Upgraded the process to single-setup turn-mill machining. The shoulder diameter, thread pitch diameter, thread relief, and chamfers are cut in a single clamping cycle. Concentricity is now consistently maintained at ≤0.008mm, verified via roundness measuring instruments.

Security Enclosure Tamper-Resistant Drive Engagement Failure

· Failure Context: Torx-pin security screws exported for outdoor security hardware failed on-site when installation drive bits could not fully seat into the pin-recess.

· Root Cause Analysis: Tool wear during multi-axis milling caused the center security pin diameter to swell by 0.2mm, preventing full driver engagement.

· Corrective Action Protocol: Instituted tool life tracking alongside a mandatory drive fitment test. Every offset pin drive or non-standard socket is 100% double-checked using calibrated master driver bits and Go/No-Go recess gauges at the machine station.

Proprietary Standards and Integrated Process Execution

Standardized machining metrics designed to eliminate structural dropouts and runout errors.

1. Stroke-Matched Captive Screw Control: Undercut shanks are turned to exact ratios derived from panel thickness and retention spring free-length to prevent axial jams or unintentional dropouts.

2. Single-Setup Concentricity Protocol: Stepped shaft profiles, bearing surfaces, and threaded ends are cut in one continuous machining sequence to eliminate secondary chucking runout.

3. 100% Recess & Drive Fitment Verification: Specialized socket geometries are manually and dimensionally tested with mating assembly bits prior to final cleaning and passivation.

Technical Specifications and Engineering Tolerances

Comprehensive material parameters and machining limits verified by coordinate measuring machines.

Machined Fasteners versus Cold Heading and Standard Parts

Direct technical comparison illustrating cost and precision benefits for non-standard runs.

Engineering Selection Guide for Functional Types and Alloys

Selecting optimal thread geometries and corrosion-resistant alloys for severe industrial environments.

Selection by Functional Configuration

· Captive Screws: Feature an undercut shank beneath the thread. Designed to remain attached to equipment panels when unfastened. Design Note: Always specify panel thickness and hole diameter during inquiry.

· Shoulder Screws: Ground step cylindrical shanks act as linear shafts, mounting studs, or pivot pins for moving parts. Design Note: Select single-setup turn-milling when concentricity under 0.01mm is required.

· Thumb Screws: Wide heads with straight or diamond knurling allow tool-less manual adjustment. Design Note: Diamond knurling provides superior grip torque for oily industrial environments.

· Security & Tamper-Resistant Screws: Custom head drive geometries prevent unauthorized disassembly. Design Note: Custom driver bits are supplied directly alongside fastener lots.

Material Grade Selection Guide

· AISI 304 Stainless Steel: Standard industrial choice providing high tensile strength and basic atmospheric corrosion resistance. Optimal cost-to-performance ratio for indoor machinery.

· AISI 316 / 316L Stainless Steel: Contains 2-3% Molybdenum to prevent pitting corrosion from chlorides and acids. Specified for marine hardware, medical devices, and outdoor food processing gear.

· 17-4PH Stainless Steel: Precipitation-hardened alloy delivering tensile strength up to 1100 MPa after heat treatment, used for high-stress aerospace fasteners.

Quality Assurance Framework and Traceability Standards

Full-spectrum dimensional verification from raw bar stock spectroscopy to final thread inspection.

· Raw Material Traceability: Every raw stainless bar batch undergoes optical emission spectrometry testing to verify chemical composition before loading onto multi-axis lathes.

· First Article Inspection (FAI): FAI reports covering 100% of blueprint dimensions, pitch diameters, and concentricity features are logged prior to initiating automated production runs.

· In-Process Precision Gauging: Optical comparator profile projectors verify thread angle and root radii while calibrated thread plug/ring gauges inspect pitch tolerance every 30 minutes.

· Protective Export Packaging: Individual compartments or thread protection netting prevent inter-part contact damage during international transport.

Industrial Applications across Severe Operating Environments

High-reliability fastener solutions built for critical electronics, medical devices, and robotics.

Electronics & Server Cabinets

Stainless steel captive screws custom manufacturing for rack-mount server faceplates, power supply units, and outdoor telecom enclosures.

Medical & Diagnostic Equipment

Custom stainless steel shoulder screws CNC machined for precise pivot mounts, optical adjustment blocks, and internal fluid pump housings.

Robotics & Factory Automation

Step screws serving as combination fasteners and locating pins for end-of-arm tooling and cobot joint assemblies.

Public Infrastructure & Security Systems

Anti-tamper stainless steel non standard machined screws protecting surveillance camera housings, outdoor charging stations, and ticketing terminals.

Get A Quote for CNC Turning Stainless Steel Special Screw

FAQs





01.How do you prevent thread galling on machined stainless steel screws during high-torque assembly?

We control thread surface roughness below Ra 0.8 µm through precise single-point threading tools and apply ASTM A967 chemical passivation. For stainless-to-stainless assemblies, we recommend micro-encapsulated dry lubricants or silver plating to eliminate friction friction seizure during high-speed installation.

02.Why choose CNC turning over cold heading for short production runs of special screws?

Cold heading requires expensive heading dies costing thousands of dollars and weeks of tooling lead time. CNC turning machines special screws directly from bar stock with zero tooling charges, supporting instant drawing revisions, lower minimum order quantities, and superior dimensional tolerances down to ±0.01mm.

03.How do you stop captive screws from dropping out of thin sheet metal panels?

Dropouts occur when the thread undercut shank length is incorrectly calculated against panel thickness and hole chamfers. We evaluate your total panel stack-up and perform physical test-fitting on sample panels to guarantee complete thread disengagement while holding the retainer shoulder securely.

04.How do you prevent shoulder screws from binding in high-precision pivot joints?

Pivot binding stems from concentricity runout between the smooth shoulder shaft and the threaded tail when machined in separate chuckings. We turn both features simultaneously on multi-axis centers in a single clamping setup, maintaining total runout below 0.008mm.

05.How do you prevent fine-pitch stainless screws from stripping out soft aluminum enclosures?

We machine custom neck reliefs and optimized thread engagement lengths tailored to your housing alloy's shear strength. Additionally, we offer custom shoulder steps that distribute axial clamping force onto load-bearing faces rather than applying stress directly to delicate tapped threads.

06.Why do custom security driver bits slip or strip out during field installation?

Slippage occurs when milling cutter wear causes central pin dimensions to expand beyond standard driver bit tolerances. We enforce strict tool life monitoring and perform 100% physical fitment checks using master driver bits and Go/No-Go gauges before shipment.

Partner with experienced machinists for rapid prototyping and reliable batch production.

Submit your 2D/3D CAD drawings (STEP, IGS, PDF) to Dazao's engineering team today.

We review panel clearances, thread tolerances, and tool access requirements to optimize your component designs for production.
