5-Axis CNC Machined Aluminum Intake Manifold Manufacturer

Core Specifications:

Tolerance limits controlled strictly to ±0.005mm.

Ra 0.4 to Ra 1.6 finish for high-velocity airflow.

Aircraft-grade AL6061-T6 and AL7075-T6 materials.

MOQ starts at 1 unit for performance intake parts.

100% Zeiss CMM inspection with FAI documentation.

5-7 day rapid prototyping for engine intake manifold.

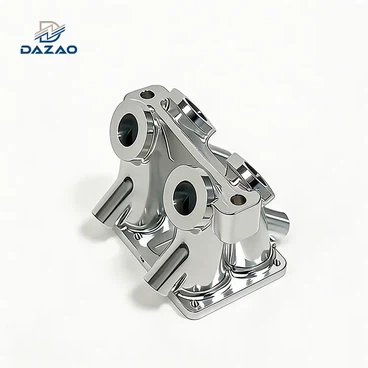

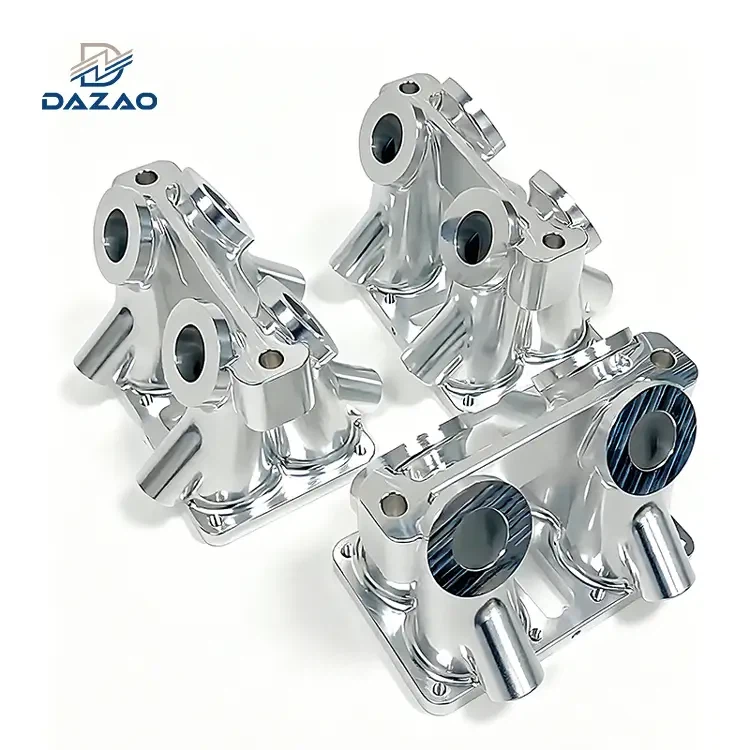

5-Axis CNC Machined Custom Aluminum Intake Manifold

Product Overview & Machining Capabilities

The aluminum intake manifold functions as the primary distribution channel delivering the air-fuel mixture to the cylinder heads under high-RPM loads. We utilize 5-axis CNC milling to program complex internal runner geometries and optimized plenum volumes, achieving strict volumetric efficiency targets for the engine manifold. Machining from solid billet aluminum eliminates the porosity defects common in cast manifolds, ensuring maximum structural integrity for forced induction systems. Our factory specializes in high-precision porting and flange facing, guaranteeing an exact fitment for any custom automotive intake manifold.

Technical Specifications

Specification Parameter	Engineering Data & Capabilities
Material Grades	AL7075-T6, AL6061-T6, AL7050, AL2024 (Billet Aluminum)
Manufacturing Process	5-Axis CNC Milling, CNC Turning, Precision Boring, Threading
Dimensional Tolerance	±0.005mm (Machining), ±0.01mm (Assembly Fitment)
Flange Flatness	≤ 0.02mm (Prevents vacuum leaks at the cylinder head)
Concentricity/Runout	≤ 0.01mm (Throttle body mounting interface)
Surface Finish	Ra 0.4 – Ra 1.6 (As machined), Bead Blasting, Polishing
Post-Processing	Type III Hard Anodizing, Chromate Conversion Coating
Max Machining Size	800mm x 500mm x 400mm
Minimum Order Quantity	1 Unit (Prototyping) to 10,000+ Units (Batch Production)
Standard Lead Time	5–7 Days (Prototypes), 15–20 Days (Production Runs)

Video: In-Machine: 5-Axis CNC Milling Process

This footage demonstrates the multi-axis machining sequence of a custom AL6061-T6 billet intake manifold. By utilizing continuous 5-axis interpolation, we consolidate multiple setups into a single operation, eliminating clamping errors and maintaining absolute dimensional stability across the entire part.

Machining Process Breakdown:

· High-Volume Roughing: Dynamic milling toolpaths with high feed rates remove up to 85% of the raw billet mass. Heat generation is strictly controlled via high-pressure coolant to prevent thermal distortion in the aluminum matrix.

· Plenum & Runner Profiling: Simultaneous 5-axis movement allows the spindle to access deep internal cavities. This geometry control is mandatory for machining optimized, bottleneck-free airflow plenums.

· Precision Surface Finishing: Extended-reach ball nose end mills execute micro-stepdown passes inside the intake runners. This targeted finishing strategy guarantees a consistent Ra 0.8 internal surface roughness, directly increasing air velocity and volumetric efficiency.

· Flange Facing & Porting: The main cylinder head mounting flange and throttle body interfaces are surface-milled to a flatness tolerance of ≤ 0.02mm. This ensures an exact zero-leak seal under extreme positive boost or vacuum conditions.

Quality Control & Inspection Standards

All custom CNC machining components undergo rigorous dimensional verification in our ISO 9001:2015 certified facility. We utilize Zeiss Coordinate Measuring Machines (CMM) to verify flange flatness, port alignment, and thread pitch on every air intake manifold.

Each shipment includes complete traceability documentation, including Material Test Reports (MTR), surface hardness certificates, and First Article Inspection (FAI) reports. Post-machining pneumatic leak testing is available upon request to ensure zero pressure loss in the final manifold intake assembly.

Application Industries

Engineered for high-stress powertrain environments, our billet intake manifolds are heavily utilized in professional motorsport engine builds, off-road rally vehicles, and modified street cars. We supply direct to OEM race teams, aftermarket tuning shops, and engine builders requiring custom inlet manifold designs for turbocharged, supercharged, or naturally aspirated high-compression applications.

FAQs

01.What aluminum grade is best for an engine intake manifold?

AL6061-T6 is the industry standard due to its excellent machinability and thermal conductivity. For extreme boost applications requiring maximum tensile strength and fatigue resistance, AL7075-T6 billet aluminum is highly recommended.

02.Can your factory CNC machine internal runners for a performance intake?

Yes. We use advanced 5-axis CNC milling to machine complex, smooth internal runners. This process removes restrictive bottlenecks, achieves a Ra 0.8 or better surface finish, and maximizes airflow velocity for performance intake systems.

03.What is the MOQ for custom automotive intake manifolds?

Our minimum order quantity is exactly 1 unit. We support rapid prototyping for engineering validation and offer scalable manufacturing up to 10,000+ units for aftermarket suppliers.

04.Do you provide leak testing for the air intake manifold?

Yes. We perform pneumatic pressure decay testing on assembled or multi-piece bolt-together manifold intake designs to verify O-ring groove dimensions and ensure absolute sealing against vacuum or boost leaks.

05.What surface finishes reduce heat transfer on the inlet manifold?

Type III Hard Anodizing is standard for wear resistance, while specific thermal barrier coatings or phenolic spacer integration at the flange can be applied to reduce heat soak from the cylinder block.

06.How fast can your china CNC facility deliver a custom intake prototype?

Once 3D CAD files (STEP/IGS) are approved, standard lead times for single-unit prototyping range from 5 to 7 days, depending on internal geometry complexity and secondary surface treatments.

Upload your 2D drawings (PDF/DWG) and 3D CAD files (STEP/IGS) today for rapid DFM analysis.

Our engineering team will review your requirements and provide a detailed manufacturing quote within 24 hours.
