How Helical Gears Work - Tooth Geometry Explained

OEM Helical Gears Supplier. Request a quote today.

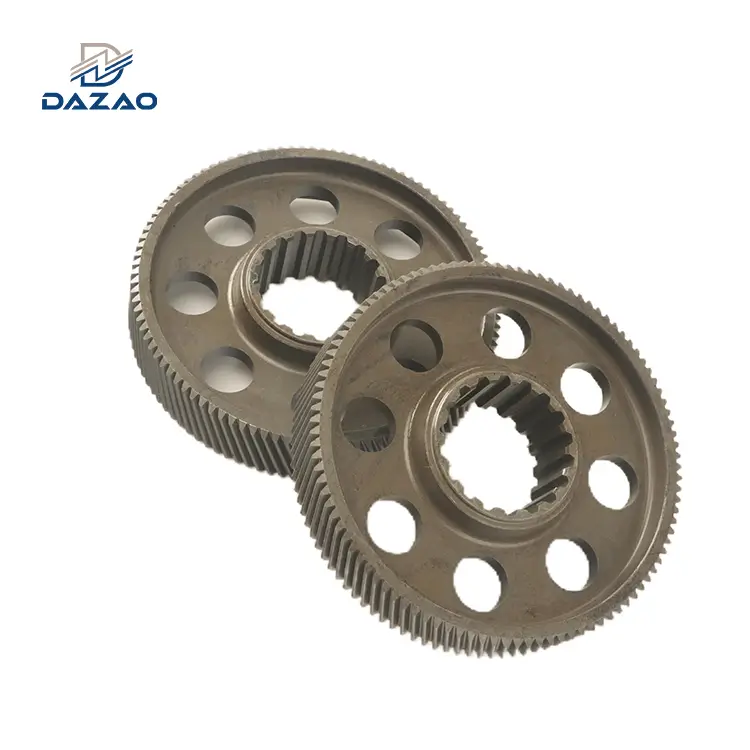

CNC machined helical gear parts for industrial gearbox

Helical gears operate through angled teeth (helix angle) that gradually engage. This design creates higher contact ratio, resulting in:

· Smoother rotation

· Reduced vibration

· Lower noise levels

· Increased load distribution

Key parameters affecting performance:

Parameter	Effect on Gear Performance
Helix Angle	Higher angle → higher load capacity, more axial thrust
Tooth Width	Wider → greater torque, but machining difficulty increases
Module	Determines gear size and strength
Pressure Angle	Influences stress distribution along tooth face

Engineering tip: For high-speed precision applications, a 15°–25° helix angle balances noise reduction and torque capacity.

Torque Capacity & Load Comparison

We provide complete CNC machining services to manufacture helical gears with high accuracy and consistent quality.

Compared with spur gears

· Helical gears transmit up to 30–40% higher torque at the same module.

· Gradual engagement reduces impact loading, extending gear life.

· Overlap ratio > 2 → smoother engagement, especially under shock loads.

Example Case

A 20-tooth helical gear with 25° helix angle operating at 1500 RPM in a conveyor system showed:

· Noise reduction: 76 dB → 63 dB.

· Load capacity increase: 1.4× compared to similar spur gear.

Axial Thrust Management

Helical gears generate axial thrust proportional to helix angle. To counteract:

· Opposing helical gear pairs (left/right hand)

· Thrust bearings at housing ends

· Optimized tooth width to reduce lateral force

Proper thrust management avoids premature wear and improves efficiency.

Upload your file

Helix Angle Selection Guide

Helix Angle	Performance	Application
15°	Low sliding → high efficiency	High-speed electric motors
25°	Balanced load & noise	General industrial machinery
35°	Maximum load → higher wear	Heavy-duty equipment

Selecting the correct helix angle is critical to lifetime performance.

Material Selection for Helical Gears - Strength, Wear Resistance, and Longevity

Selecting the right material is crucial for gear performance.

Material impacts torque capacity, wear resistance, fatigue life, and corrosion protection.

Application	Recommended Material	Hardness (HRC)	Advantages
Heavy load / shock	20CrMnTi	58–62	Carburized, high surface hardness, tough core
Continuous high speed	SCM420 / 42CrMo	56–60	High core strength, wear resistance
Corrosive environments	SUS304 / SUS316	-	Corrosion resistance, suitable for marine or chemical use
Low noise / lightweight	Bronze, Brass, POM, Nylon	-	Reduced friction, smooth running, quiet operation

Engineering tip: For high-load, high-speed applications, alloy steel with surface carburizing ensures optimal tooth life and fatigue resistance.

Manufacturing & Tolerance Engineering

We combine advanced CNC hobbing, gear shaping, grinding, and turning to deliver high-precision gears.

Our capabilities include:

Gear Cutting Methods Comparison

Process	Advantages	Limitations	Application
Hobbing	Cost-effective, efficient	Moderate precision	Medium-volume production
Grinding	High precision, low noise	Higher cost	Low-noise, high-speed applications
5-axis CNC	Flexible, prototype-friendly	Lower efficiency	Small batch, custom geometries

Accuracy & Tolerance Control

· AGMA 10–12 / ISO 7–8 gear tooth accuracy

· Tooth profile deviation ±0.01 mm

· Runout & backlash controlled with CMM and gear testers

Tip: Tooth profile accuracy directly influences gear noise, wear, and efficiency.

Heat Treatment & Surface Finishing

Proper heat treatment extends gear life. Our processes include:

Treatment	Purpose
Carburizing & Quenching	High surface hardness with tough core
Nitriding	Fatigue strength, wear resistance
Induction Hardening	Selective tooth hardening
Grinding & Polishing	Smooth surface to reduce friction & noise
Black Oxide / Phosphating	Corrosion protection

Surface finish ensures proper gear meshing, reducing vibration and prolonging service life.

Precision Specifications & Engineering Capability Tables

Gear Geometry Capability Chart

Parameter	Range
Module	0.5 – 6 mm
Tooth Width	5 – 120 mm
Helix Angle	15° – 35°
Gear OD	10 – 300 mm
Accuracy	AGMA 10–12 / ISO 7–8
Prototype Lead Time	7–15 days
Production Capacity	50,000+ pcs/month

Batch Consistency & CPK/SPC

· 100% dimensional inspection for each gear

· SPC tracking of critical tolerances

· Traceable batch documentation for OEM compliance

Industries & Application Cases

Industrial Automation & Robotics

High-precision helical gears reduce noise & backlash

Example: Servo motor gear set achieved runout <0.02 mm, efficiency 98%+
Automotive Transmission

Helical gears with 25° helix angle reduce vibration in gearbox

Lifetime >5000 hours at full load
Heavy Machinery & Mining

High-load helical gears for excavators and conveyors

Fatigue life improved 2–3× vs non-optimized spur gears

Get a free quote

Quality Control & Inspection

OEMs and engineers can verify every batch before assembly.

Every gear is 100% inspected:

CMM Inspection: Tooth profile, helix angle, runout

Gear Measuring Instrument: Profile and pitch deviation

Hardness Test: Surface and core hardness

Surface Roughness Test: Ensure smooth meshing

Metallurgical Analysis: Microstructure for carburizing/nitriding

Report Package: Full dimensional report, material certificate, heat treatment report

Design Support & Co-engineering

This collaborative approach reduces redesign cycles and ensures long-term reliability.

Our engineering team provides:

DFM review for minimum root thickness, tip relief, backlash

Optimization for low noise and wear

Prototype evaluation & testing

Recommendations for lubrication, mounting, and alignment

Applications of Our Helical Gears

Our helical gears are trusted by global customers across multiple sectors.

Automotive & Transmission Systems

Gearboxes, differentials, and drive shafts.

Industrial Gearbox & Heavy Machinery

Crushers, conveyors, hoists, compressors.

Machine Tools & Automation Equipment

CNC lathes, milling machines, robotics.

Power Generation & Wind Energy

Turbine drives, generators, reduction gears.

Mining, Oil & Gas Equipment

Drilling rigs, pumps, mixers.

Marine & Agricultural Machinery

Ship propulsion systems, tractors, harvesters.

Any system that requires stable, smooth, and quiet angular transmission benefits from helical gears.

Why Choose Us as Your Helical Gear Supplier?

We offer a variety of transmission components

OEM & Customization

Flexible design support from prototyping to mass production.
Engineering team assists with material selection, heat treatment, and gear design optimization.

Reliable Production Capacity

Advanced CNC gear hobbing, shaping, grinding, and turning machines.
Capable of both small batch production and large volume orders.

Precision & Quality Control

Strict inspection with CMM, gear measuring center, hardness tester, and surface analyzer.Compliance with ISO/AGMA/DIN standards.

Competitive Pricing & On-Time Delivery

Cost-effective manufacturing process.
Stable lead time with global shipping support.

OEM & Ordering Process

We support customization customers worldwide with a clear and efficient purchasing workflow

Request a Quote

Send your drawings, specifications, or gear samples.

Engineering Review

Our team evaluates technical feasibility.

Prototype & Confirmation

Sample gears provided for approval.

Mass Production

Full-scale CNC machining with quality assurance.

Delivery & After-Sales Support

Global logistics and replacement guarantee.

Whether you are looking for a custom helical gear supplier, or need OEM helical gears in bulk, we ensure a smooth and reliable sourcing experience.

FAQ - Advanced Helical Gear Questions

For more questions, please contact us

Q1: What are the advantages of ground vs unground teeth?
A1: Ground teeth have lower noise, higher precision, and smoother engagement-recommended for high-speed or low-noise applications.

Q2: How is backlash controlled in paired gears?
A2: By precise tooth geometry and grinding, plus CMM measurement; typical backlash ≤0.03 mm.

Q3: Can you produce small-batch prototypes?
A3: Yes, fast turnaround 7–15 days for prototype gears.

Q4: How do you select helix angle for heavy load vs speed?
A4: Lower angles (15°–20°) for high speed, higher angles (25°–35°) for heavy load with thrust bearing support.

Q5: Are CAD files required for quotation?
A5: STEP / IGS / STP / X_T / DXF / PDF are supported; if unavailable, we can work from drawings.
